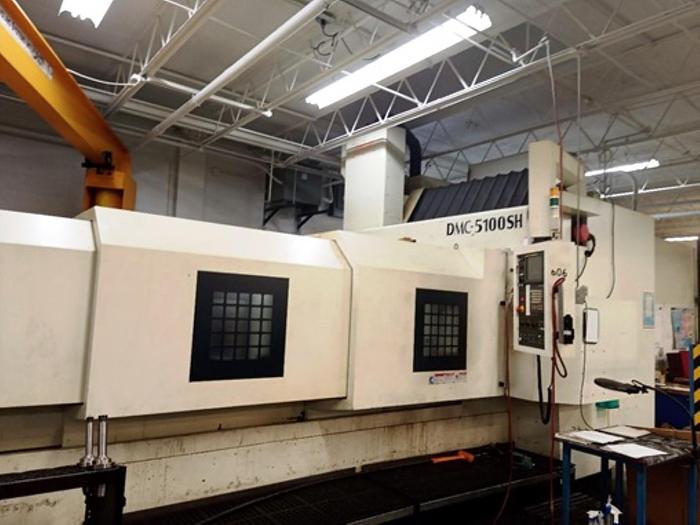

Johnford DMC-5100SH Double Column CNC Gantry Machining Center
No longer available
Johnford DMC-5100SH Double Column CNC Gantry Machining Center
Location:Pennsylvania
Description

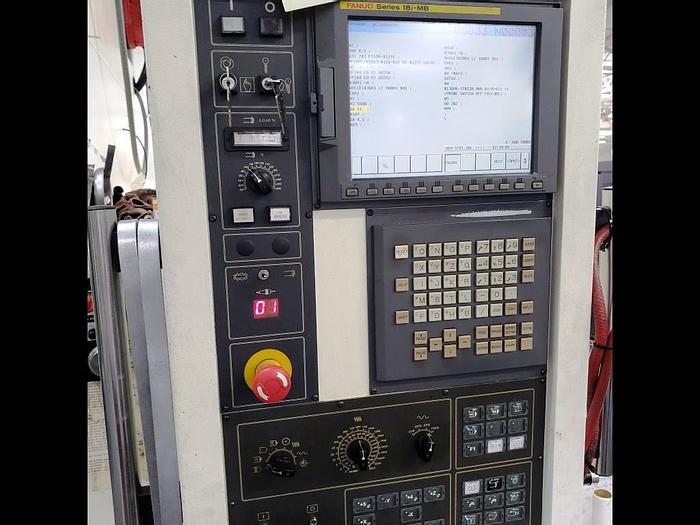

Fanuc 18i MB

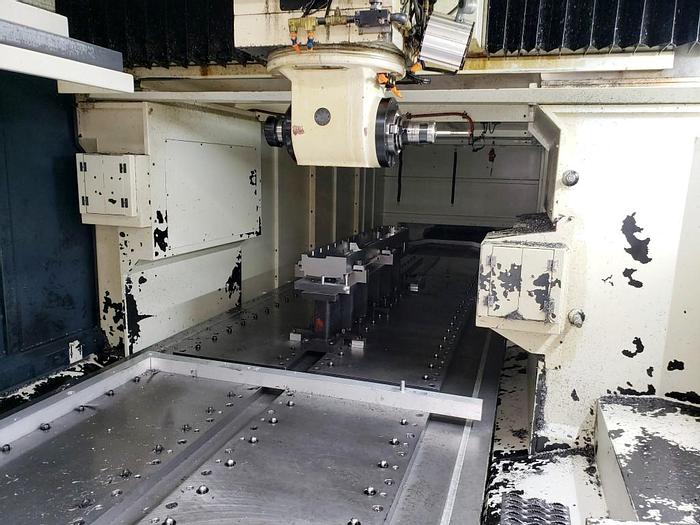

Vertical Spindle & Horizontal Spindle Attachment( Stored In Its Own Cradle

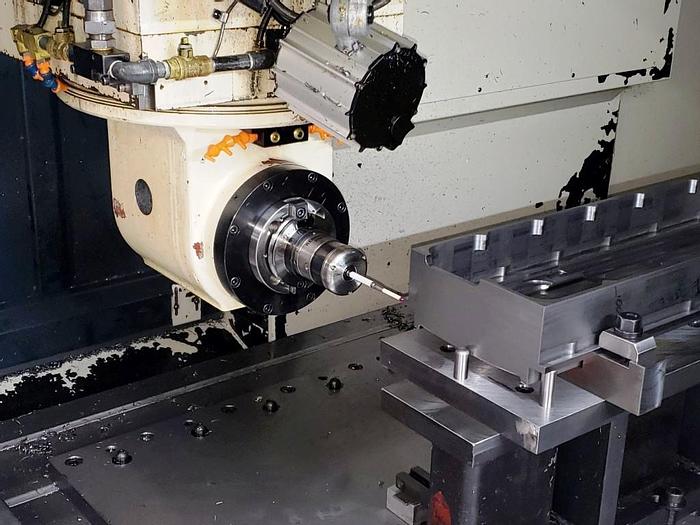

5 Face Head Delivers Full 360 Degree Rotation. (Min. Increments of 5 Degrees)
1000 PSI High Pressure Coolant Thru Spindle
Rigid Tapping

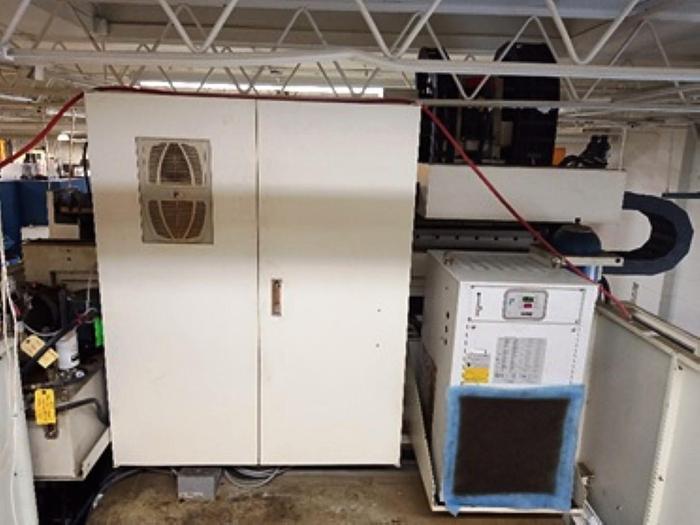

Spindle oil Chiller
Renishaw Tool Probe System
Coolant System
Chip Conveyor
Specifications
| Manufacturer | Johnford |
| Model | DMC-5100SH |
| Year | 2011 |
| Condition | Used |
| Stock Number | 3512 |

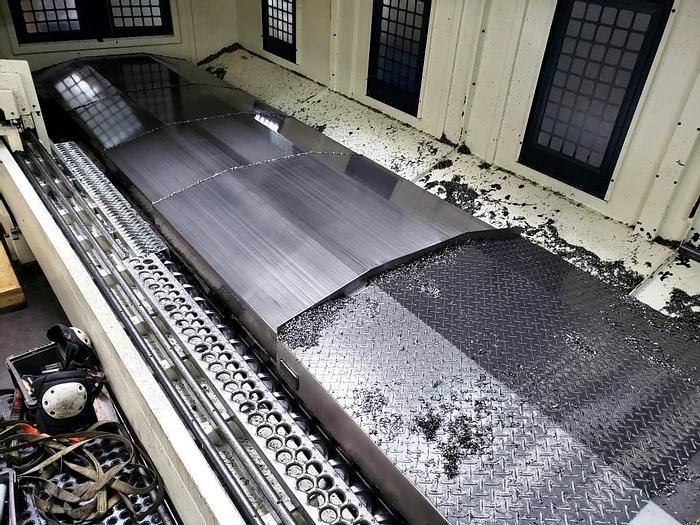

| Table Size | 204.7" x 59" |
| Max. Table Load Capacity | 26,400 lbs |
| X-Axis Travel | 200.7" |
| Y-Axis Travel | 70.9" |
| Z-Axis Travel | 31.5" |
| Distance Between Columns | 70.4" |
| Spindle Nose To Table | 11.8" - 43.3" |
| Spindle Motor | 35 HP + Hi Low Gear |
| Spindle Speed | 6,000 RPM |
| Spindle Taper | Cat #50 |
| ATC | 60 ATC |
| Approx. Weight | 92,620 lbs |
