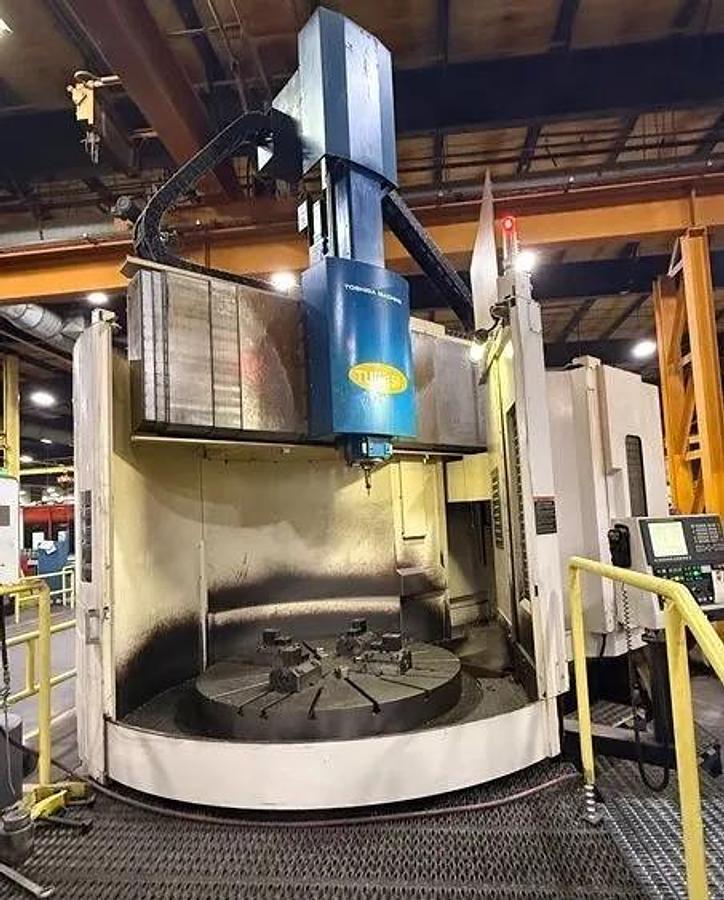

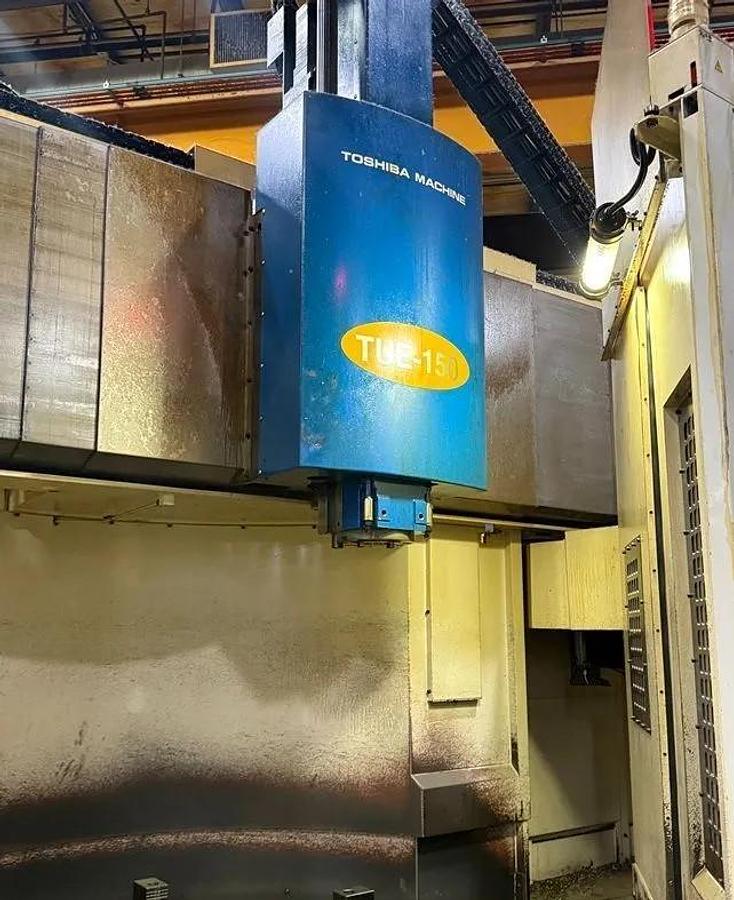

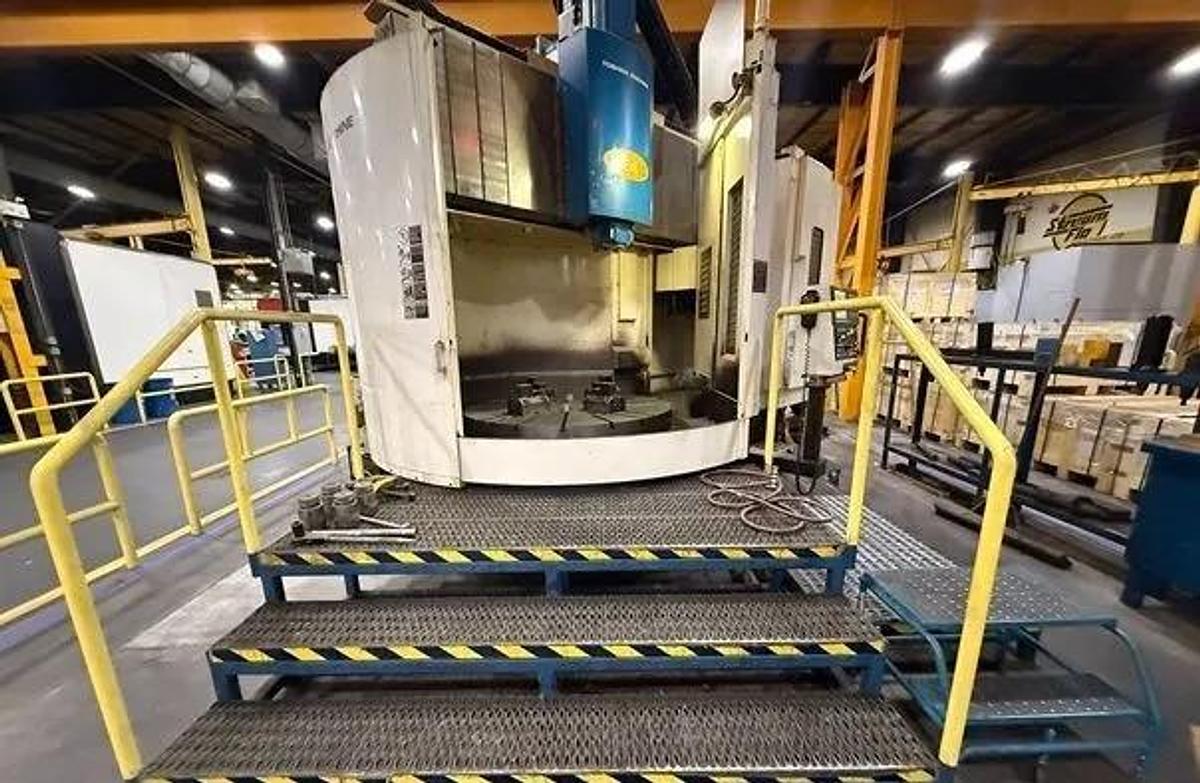

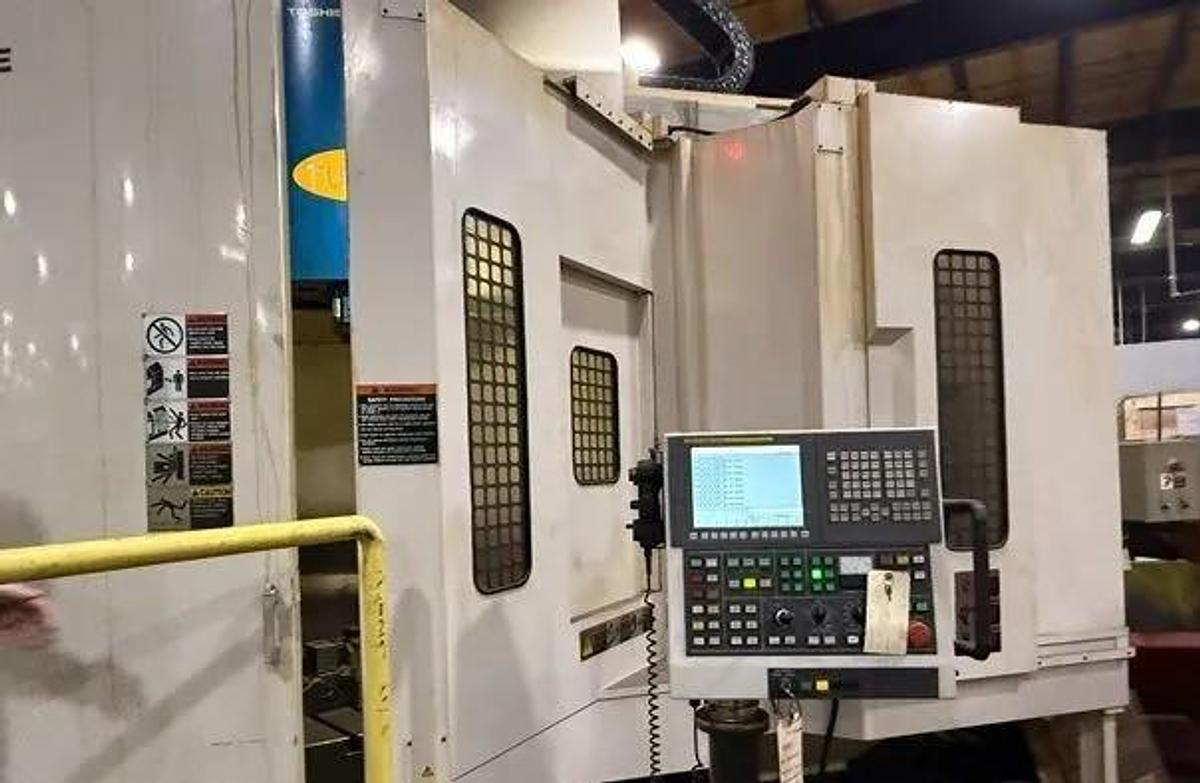

Toshiba TUE-150S CNC Vertical Boring Mill
Toshiba TUE-150S CNC Vertical Boring Mill
Location:CA
or
Call 1-262-284-5611
Description

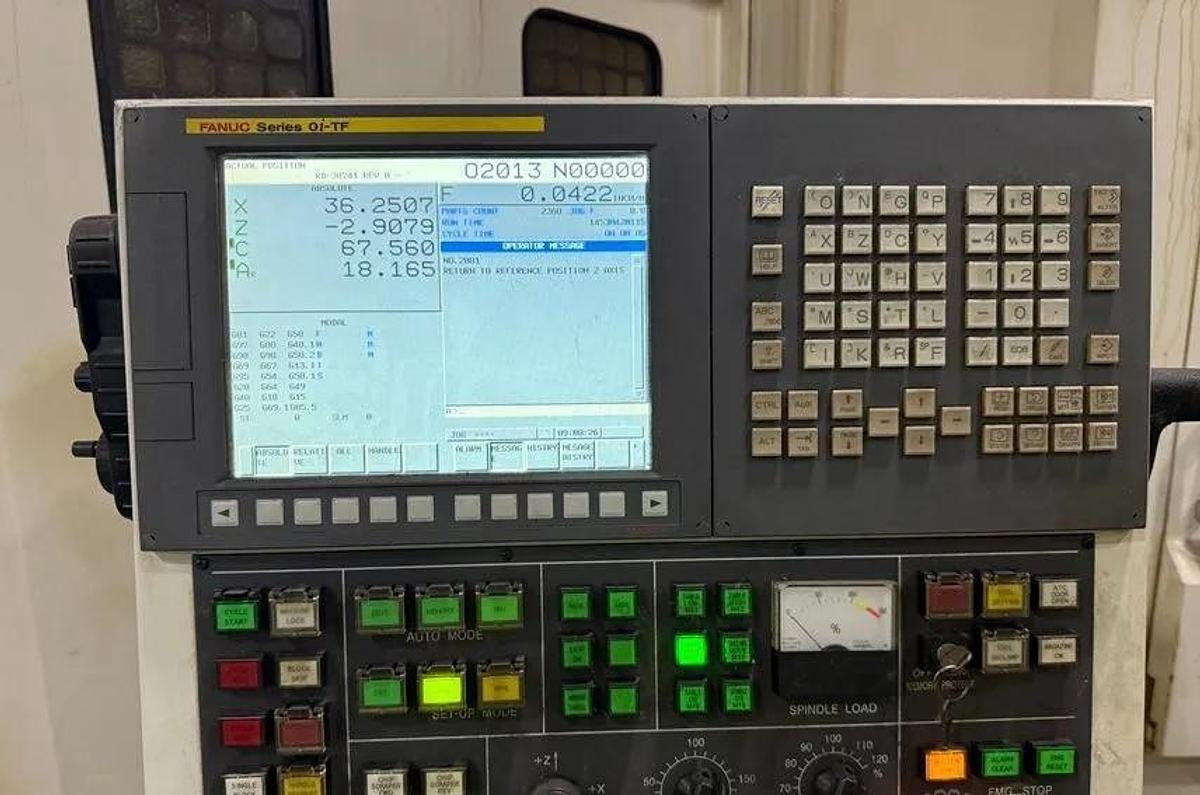

Fanuc Oi-TC, C-Axis Indexing, MPG
Specifications
| Manufacturer | Toshiba |
| Model | TUE-150S |
| Year | 2018 |
| Condition | Used |
| Stock Number | 3717 |

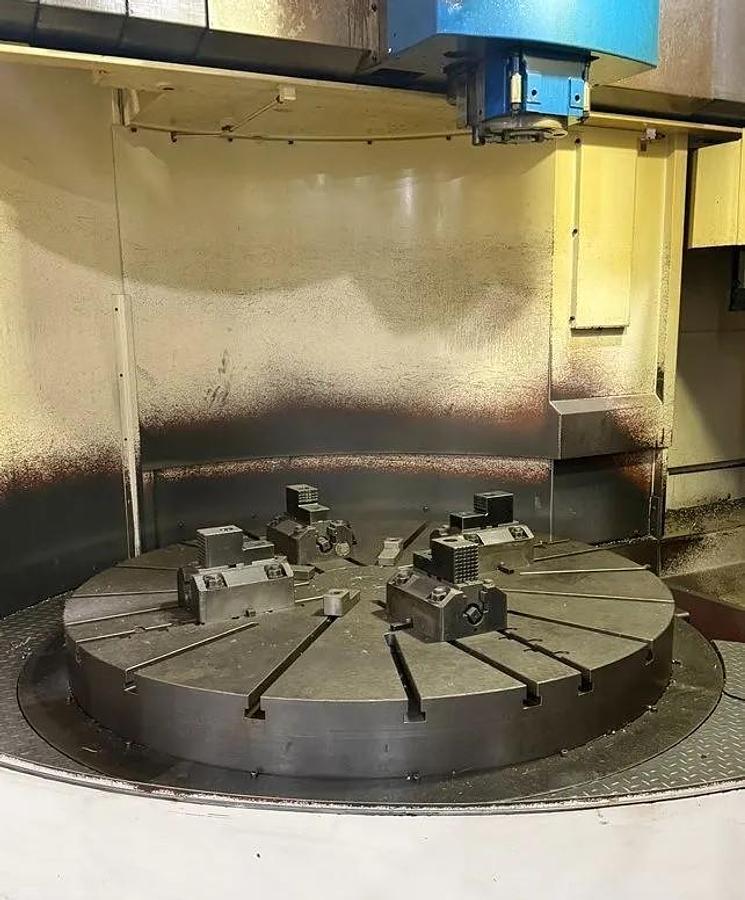

| Table Diameter | 57.1" |
| Swing | 78.7" |
| Work HT-U/R | 67.7" |
| Max. Cutting Diameter | 78.7" |
| Max. Cutting Height | 61" |
| Table Drive Motor | 60 HP |
| Table Speed | 2-400 RPM (2 Speeds) |
| Max. Load On Table | 17,600 Lbs |
| X- Axis Travel | 3.94" - 43.3" |
| Z-Axis Travel | 35.4" |
| Live Tool Speed | 15-3,000 RPM |
| Live Spindle Motor | 25 Hp |
| Feed Rate of Table | 1 To 360 Deg/Min |
| ATC Capacity | 18 Tools (6 For Turning 12 For Milling) |
| Apprx. floor space required | 16.73' x 12.3' x 17.72' |
| Approx. Machine Weight | 38,000 lbs |
