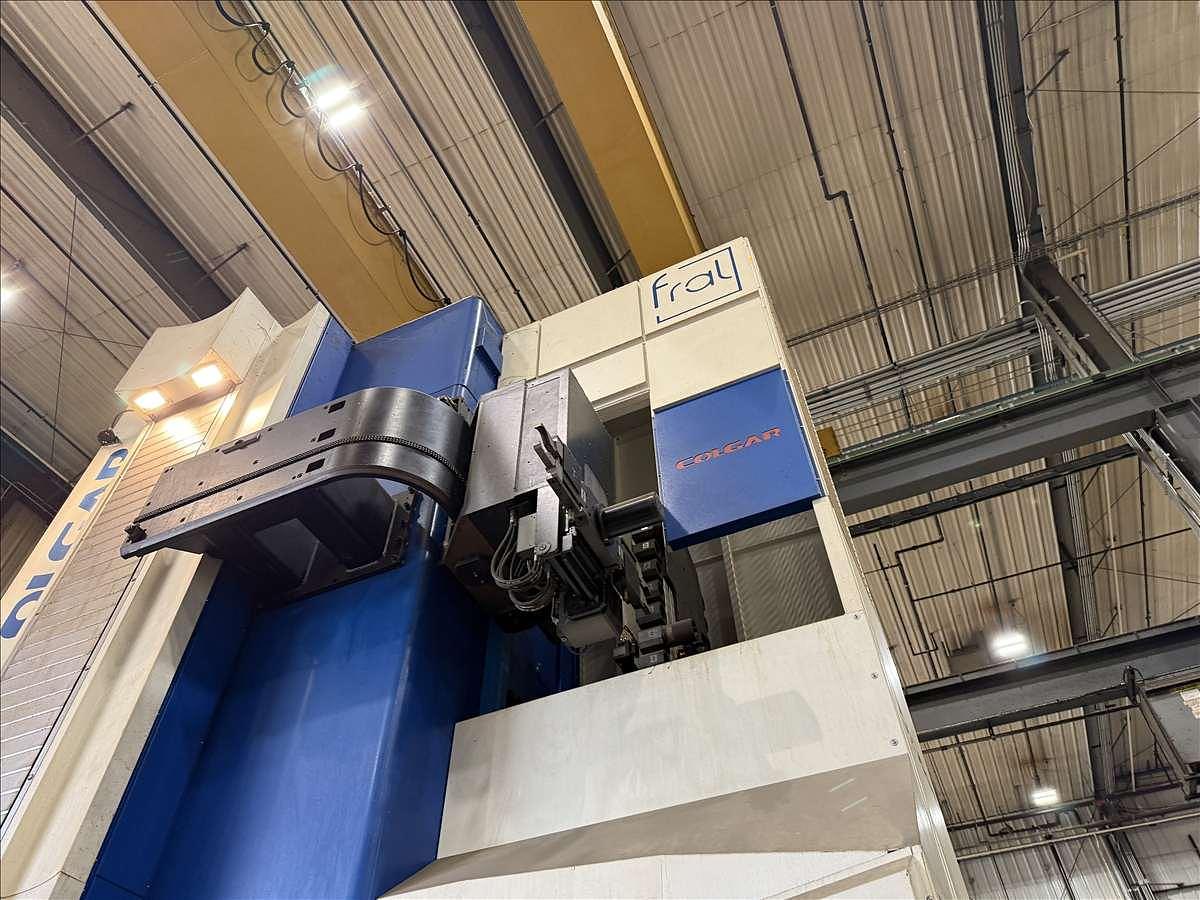

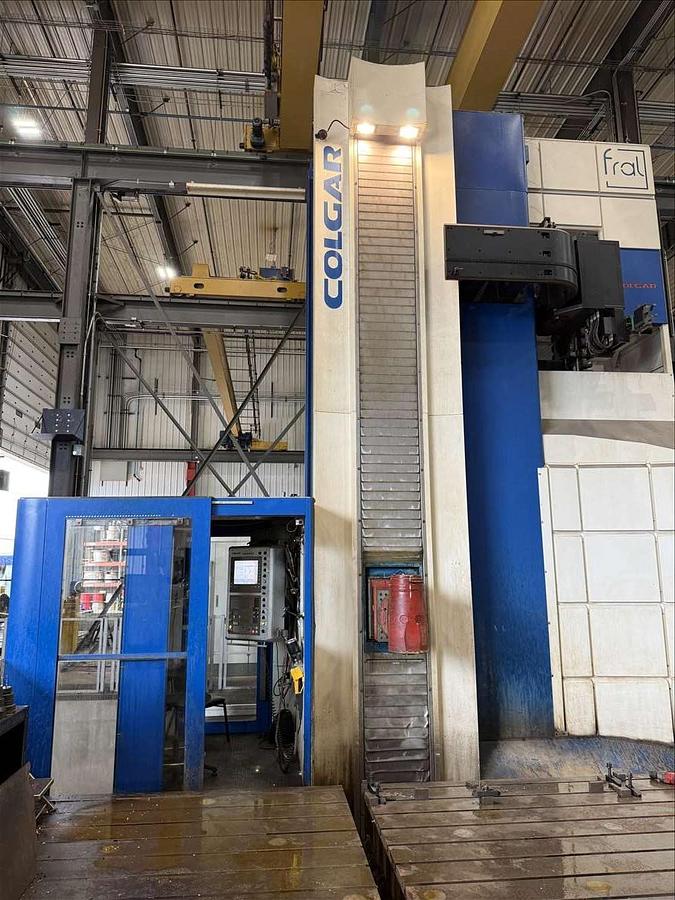

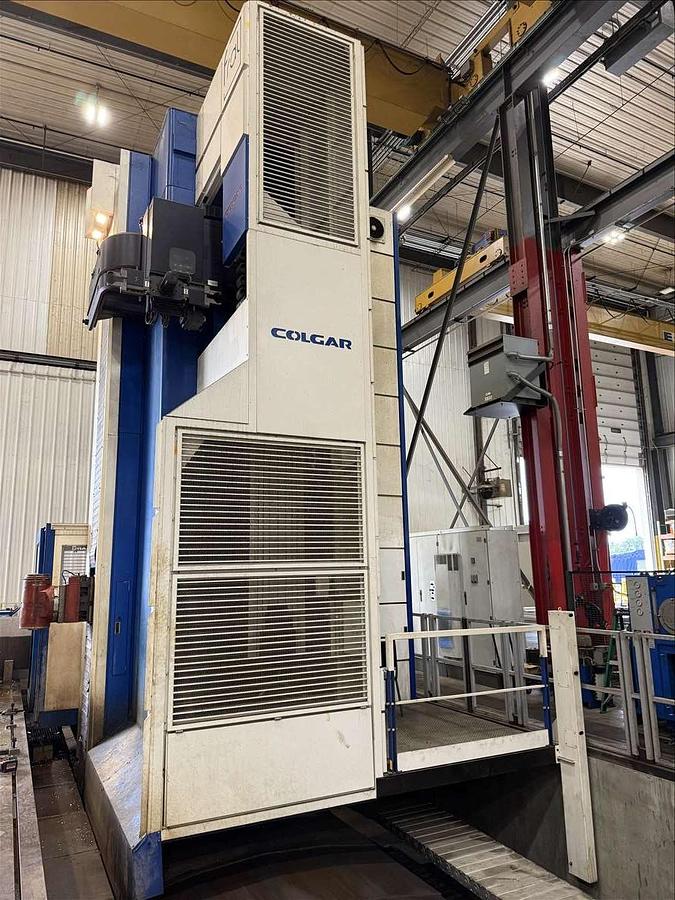

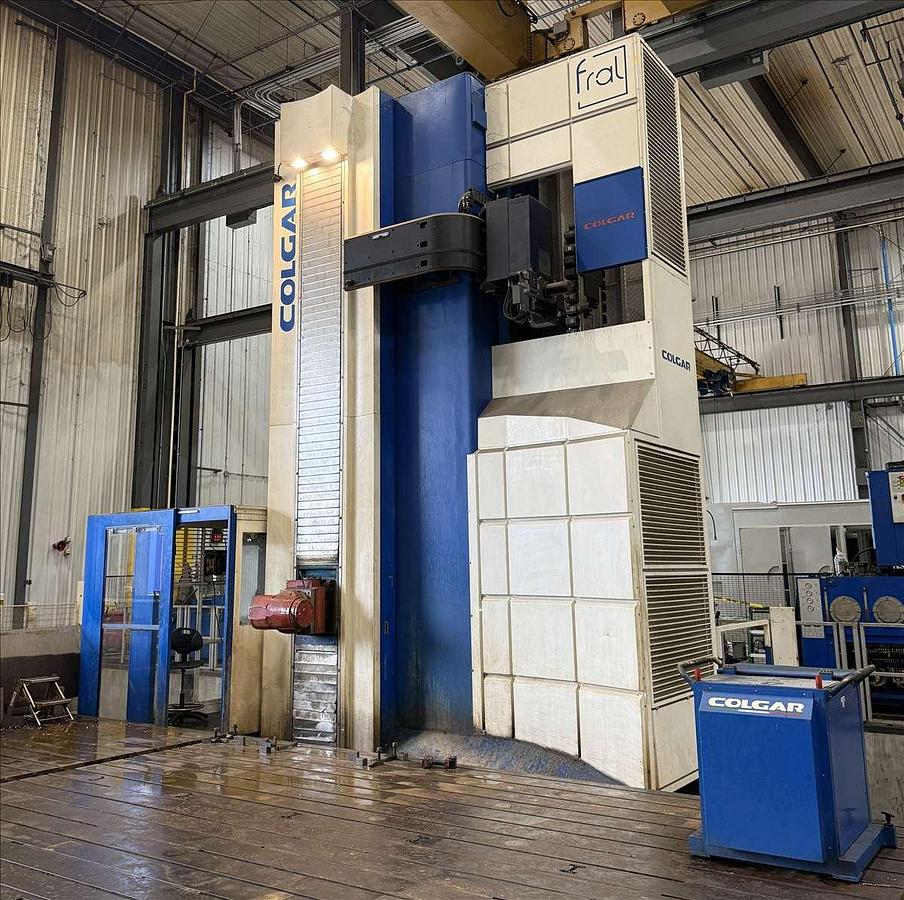

Colgar FRAL 401 6.3" CNC Floor Type Traveling Column Horizontal Boring Mill
Colgar FRAL 401 6.3" CNC Floor Type Traveling Column Horizontal Boring Mill
Location:KS
or
Call 1-262-284-5611
Description

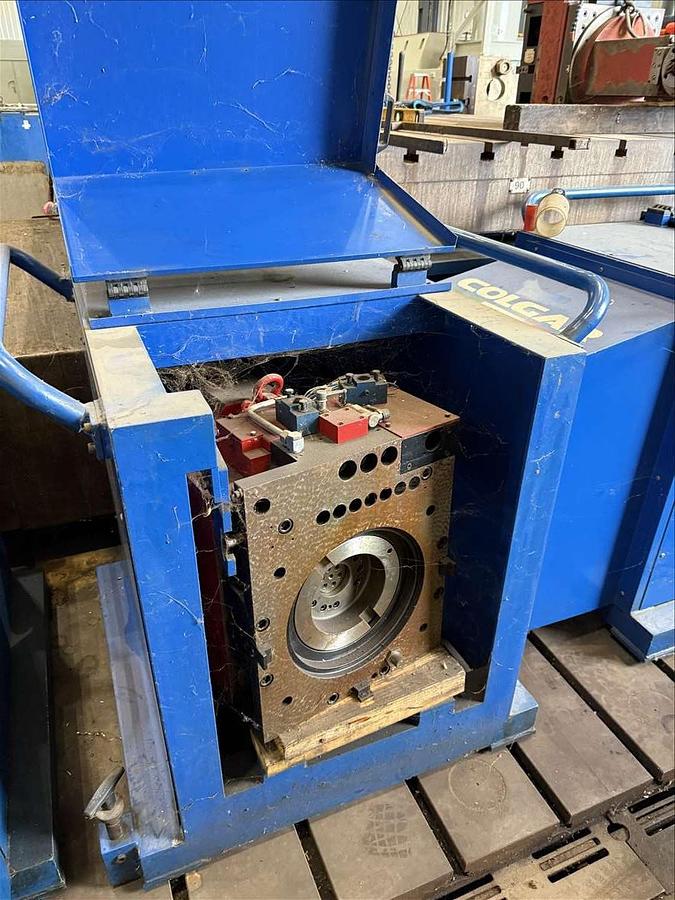

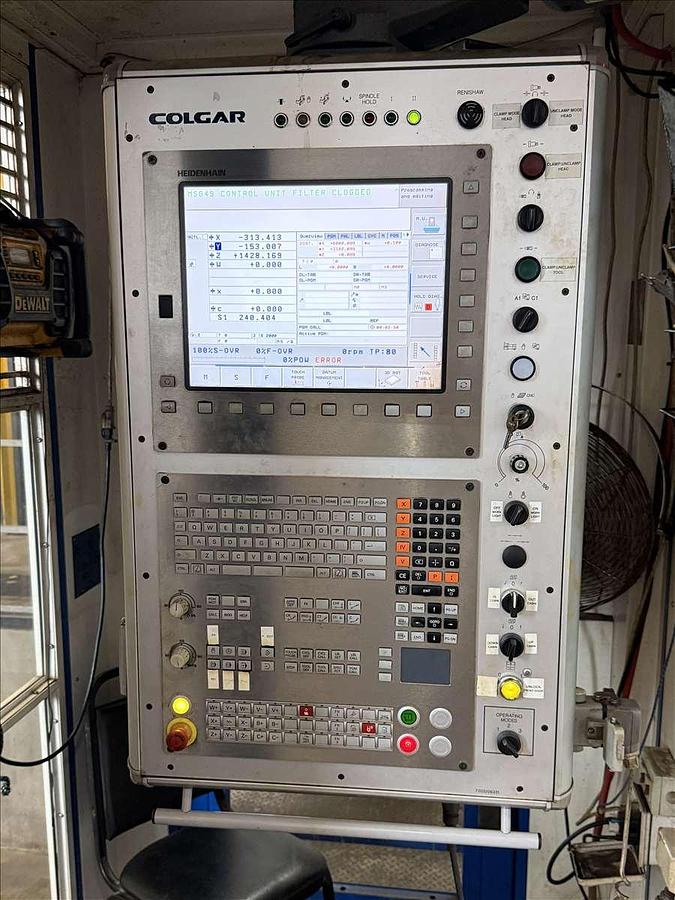

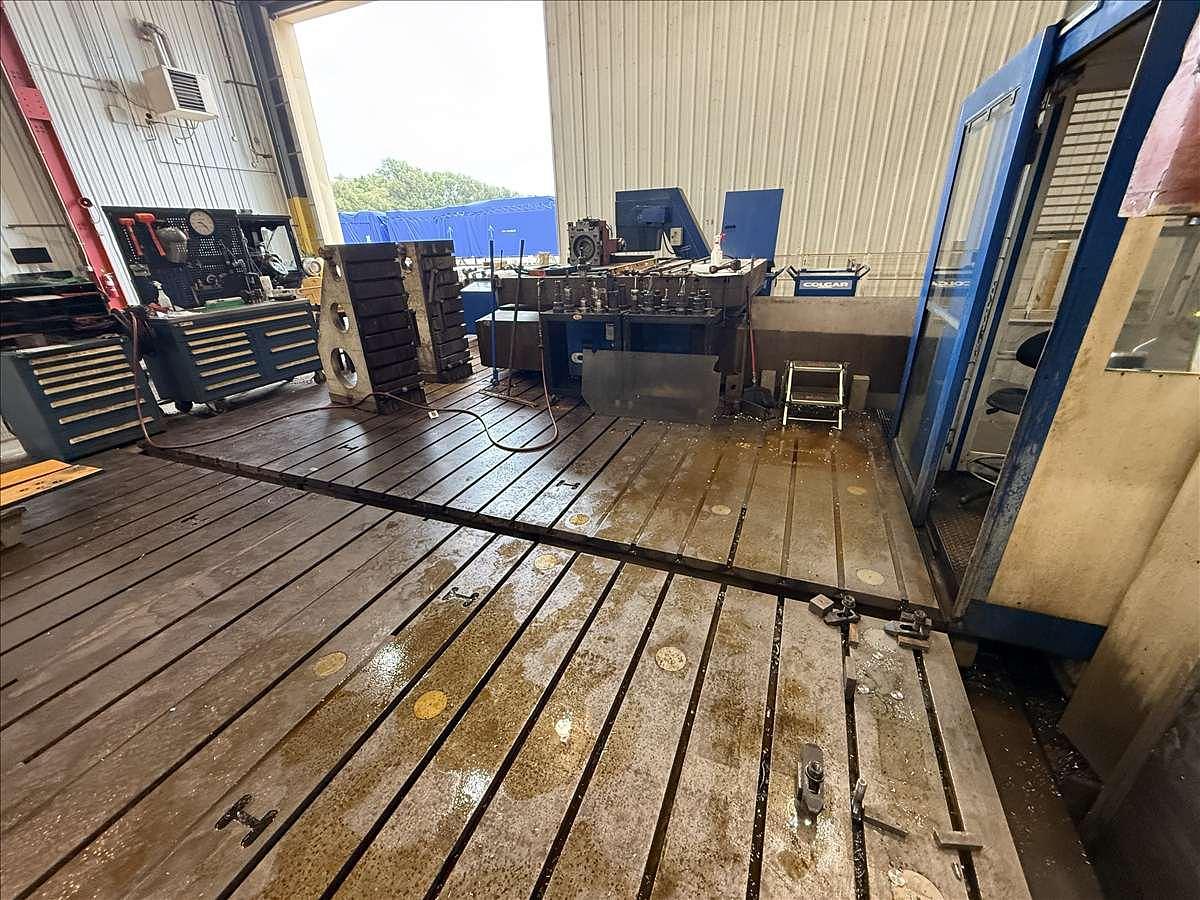

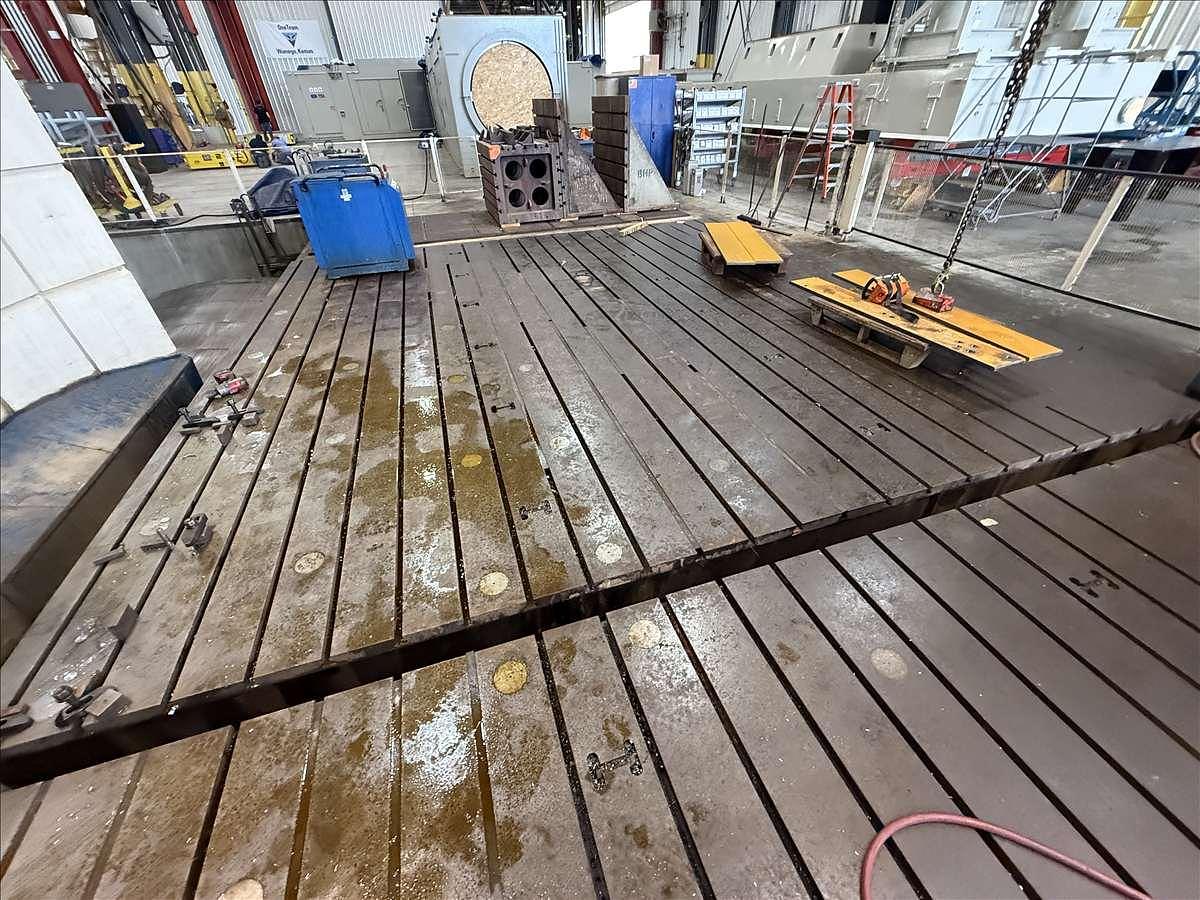

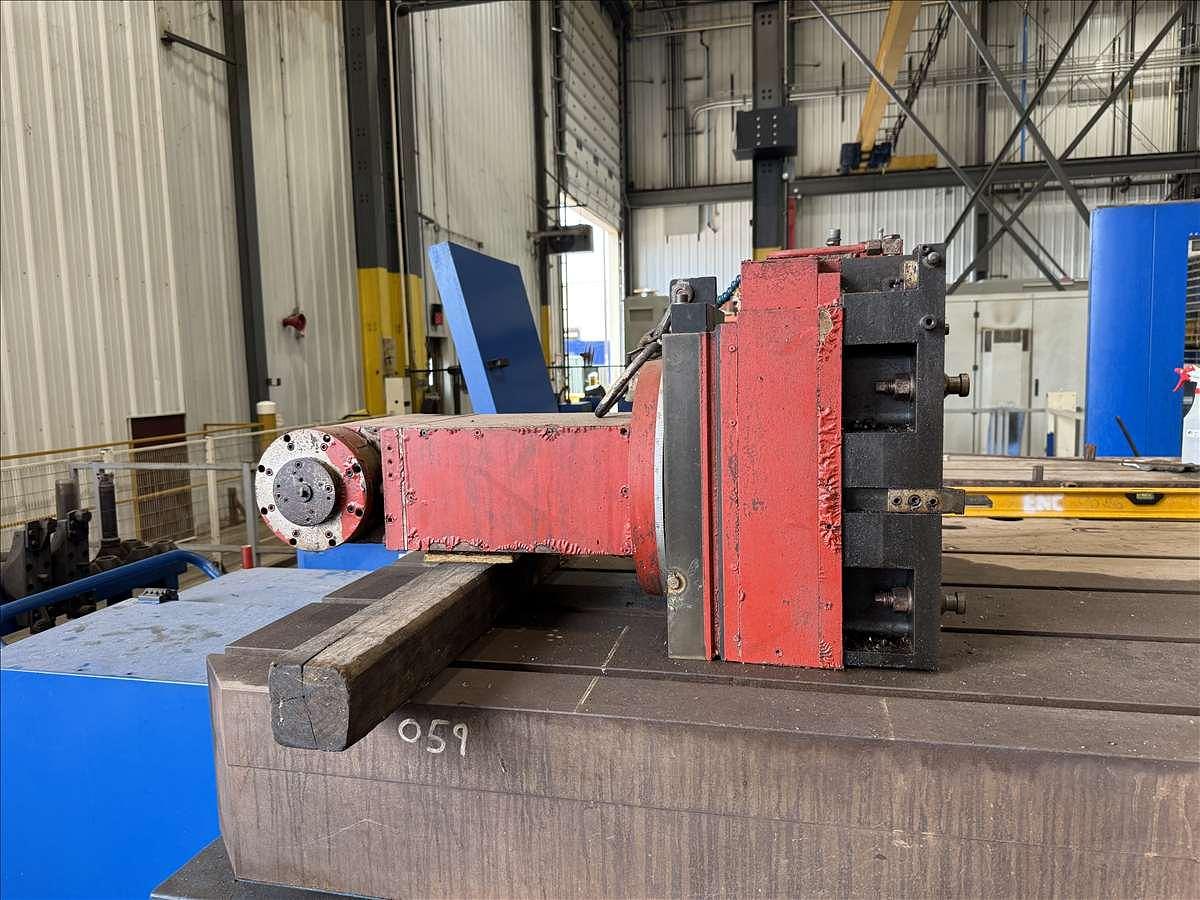

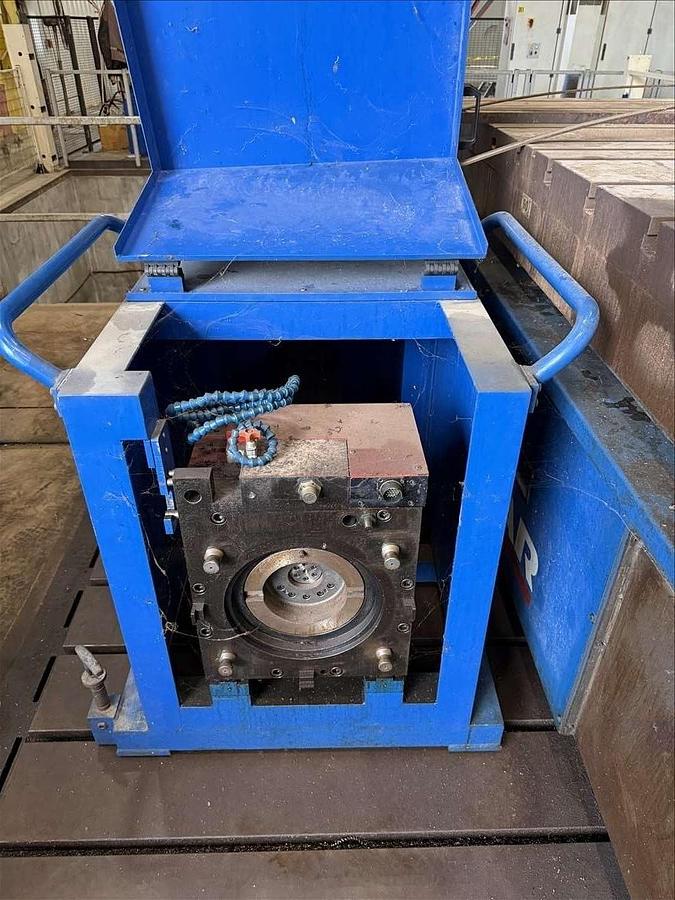

Heidenhain iTNC 530 CNC Control, (5) Interchangeable Auxiliary Machining Heads, (2) Sets of 236" x 236" Floor Plates, Chip Conveyor, 220 PSI CTS, Renishaw Probing, Standard Flood Coolant, Way Covers, Ride-On Operators Station, 360 Degree Right Angle Head, TSQ 300 Right- Angle Head Capto C10 2,000 RPM Indexable, TSQ 80 Right-Angle Head, Capto C8 2,000 RPM Indexable,TA 120 Right Angle Head Capto C8 3,000 RPM Indexable, MAPA Right Angle Head Capto C6 1,500 RPM Indexable, TSQP 70 Right Angle Head Capto C6 1,500 RPM Indexable,
Specifications
| Manufacturer | Colgar |
| Model | FRAL 401 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 3715 |
| Spindle Diameter | 6.3" |
| Ram Size | 16" x 19.8" |
| X-Axis Travel | 433" |
| Y-Axis Travel | 196.85" |
| Z-Axis Travel | 59" |
| W-Axis Travel | 35.4" |
| Table Size | 98.5" x 98.5" |
| Table Capacity | 66,000 Lbs |
| Rotary Table Indexing | 1 Degree |
| Table Infeed Slide | 59" |
| Spindle Speeds | 5-3,000 RPM |
| Spindle Taper | Capto C10 |
| Spindle Motor | 100 HP |
| Rapid Traverse Rate X/Y/Z | 787 IPM |
| Rapid Traverse Rate W-Axis | 590 IPM |
| Auto Tool Changer Capacity | 80 ATC |
