Toolmex TUR630AMN CNC Oil Country Lathe
Toolmex TUR630AMN CNC Oil Country Lathe
Location:Belgium, WI
or
Call 1-262-284-5611
Description

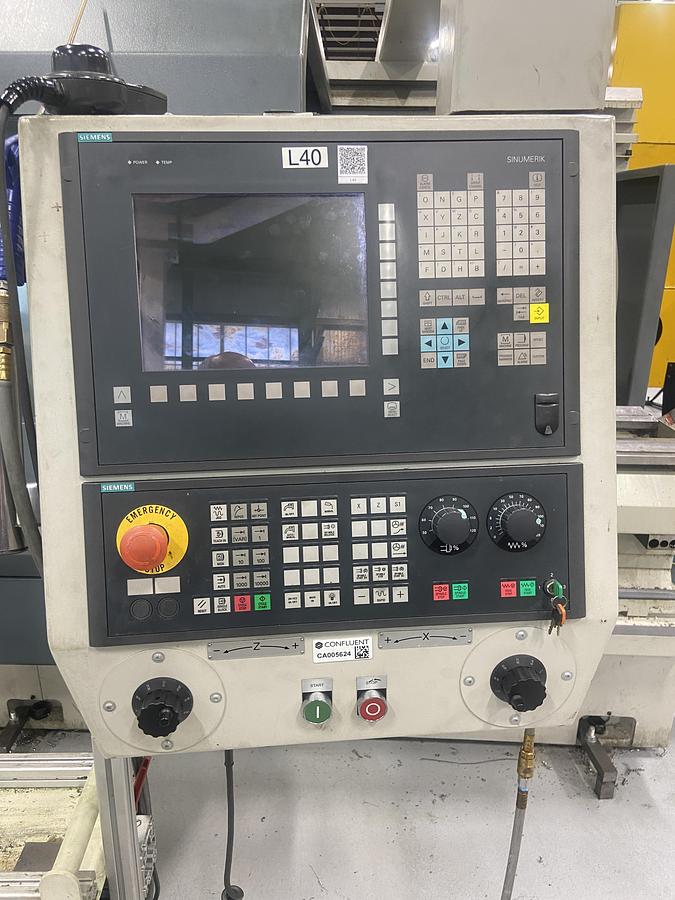

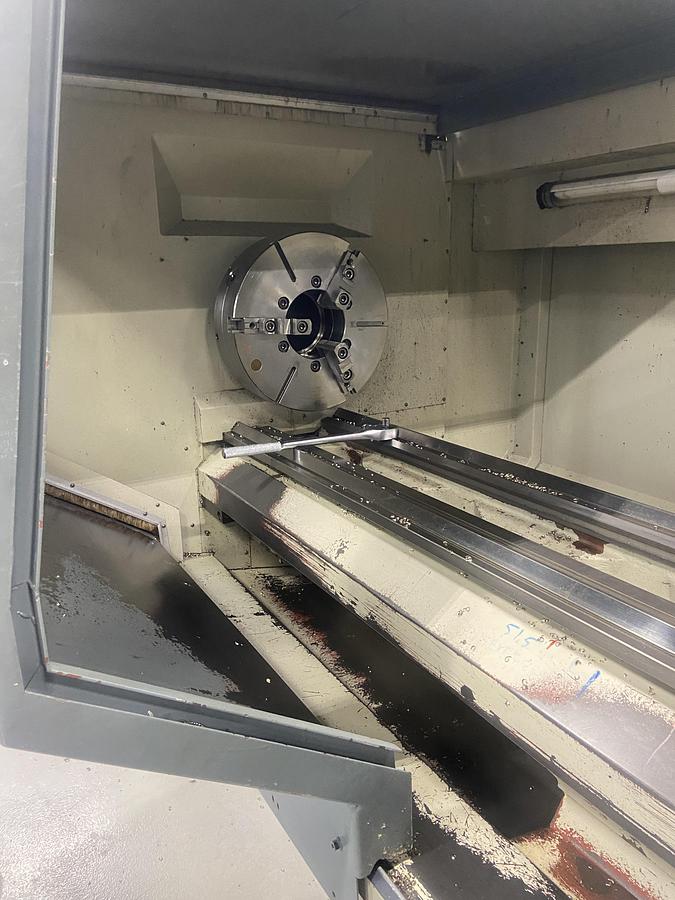

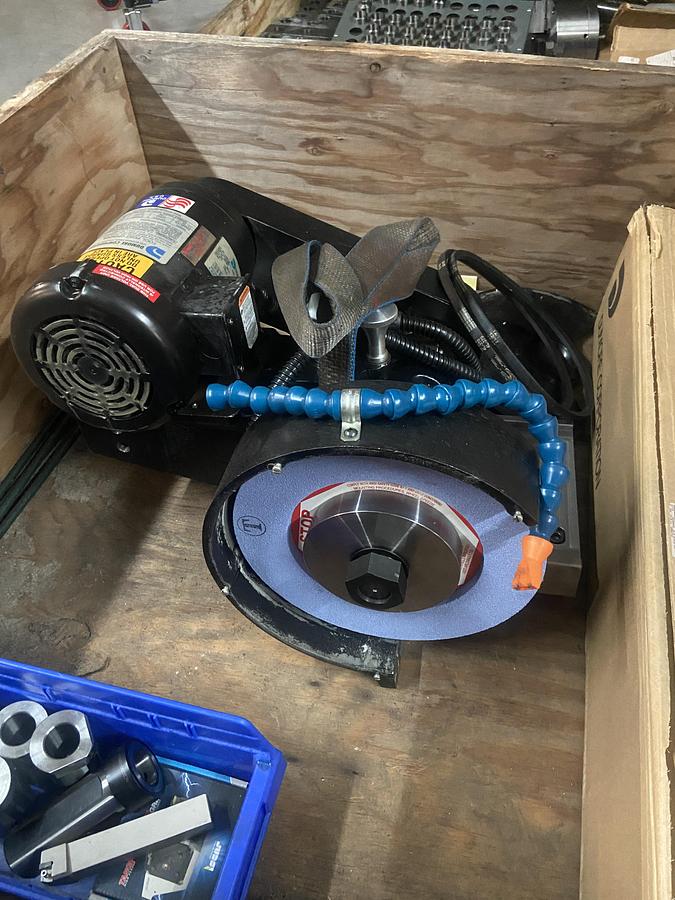

Siemens 840Dsl w/ Shop Turn Manual Plus, Dual Siemens Standard Electronic Handwheels on Control Station, Sauter 4-way Head Tool Post W/ Dove Tail Mounting, 3 holders for Tool Post, (1) Boring Bar Holder 1.5" Bar, Precision Live Center MT#5, Remote MPG(Siemens third Electric Mini Hand Wheel), USB Slot, 2 Work Lights, Two Biston 16" 4-Jaw Independent HD Oil Country Forged Steel Chuck W/ 6.5" Bore, 2 Piece Jaws, Full Guarding, Over Head Swivel control Panel, Absolute Encoders,17" Wide TRI-V Bed Ways, I.D. Grinding Attachment & Rest.
Specifications
| Manufacturer | Toolmex |
| Model | TUR630AMN |
| Year | 2015 |
| Condition | Used |
| Stock Number | 3713 |
| Swing Over Bed | 24.8" |
| Swing Over Cross Slide | 14.6" |
| Distance Between Centers | 157" |
| Max. Workpiece Weight in Chuck | 1,320 Lbs |
| Max. Workpiece Weight W/ 2 Steadies | 6,600 Lbs |
| Spindle Speed | 200-1,800 RPM |
| Spindle Motor | 16/25 HP |
| Spindle Bore | 6.5" |
| Spindle Nose | A2-11 |
| X- Axis Travel | 15.3" |
| Rapid Traverse Rate X/Z | 315 IPM |
| Cross Slide Width & Length | 9" x 31.5" |
| Tailstock Quill Diameter | 3.9" |
| Tailstock Taper | MT#5 |
| Tailstock Stroke | 7.8" |
| Tri-V Bed Width | 17" |
