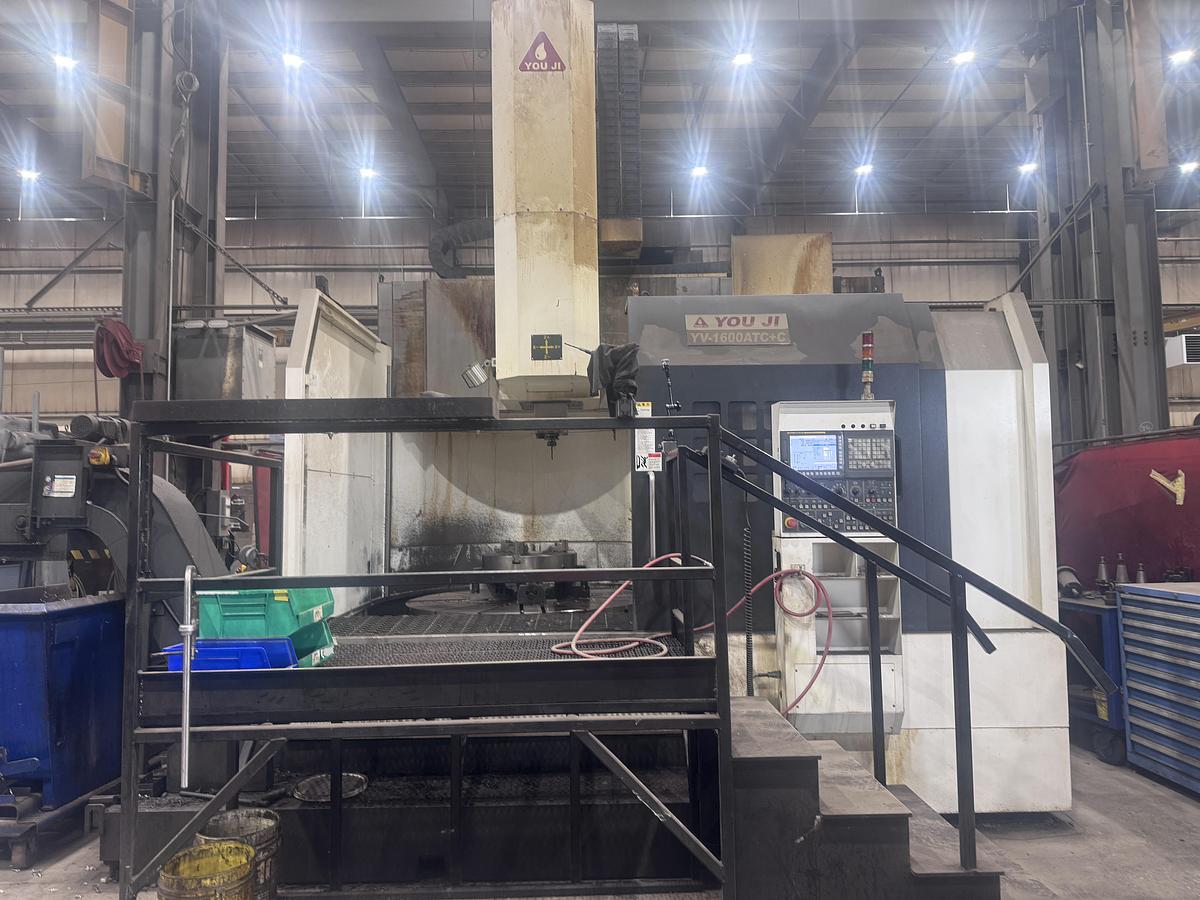

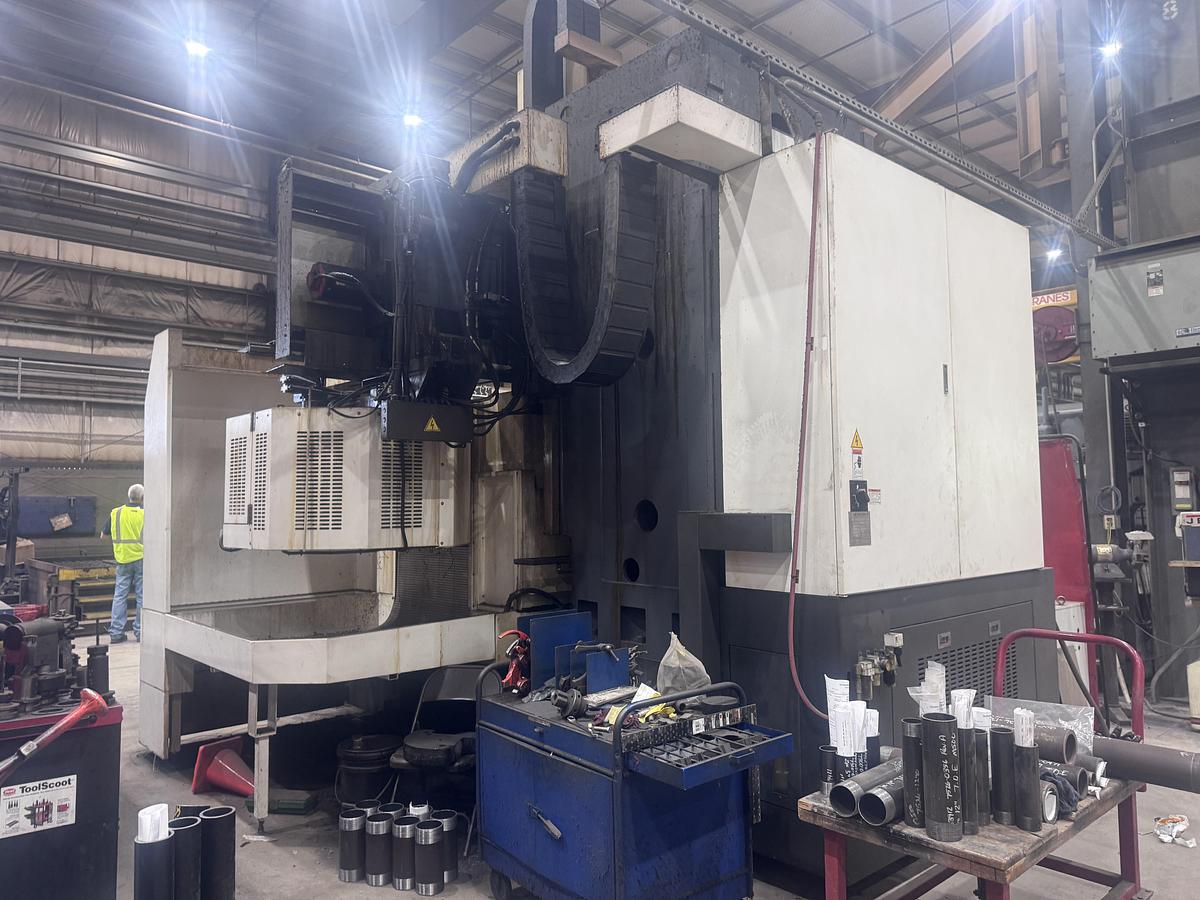

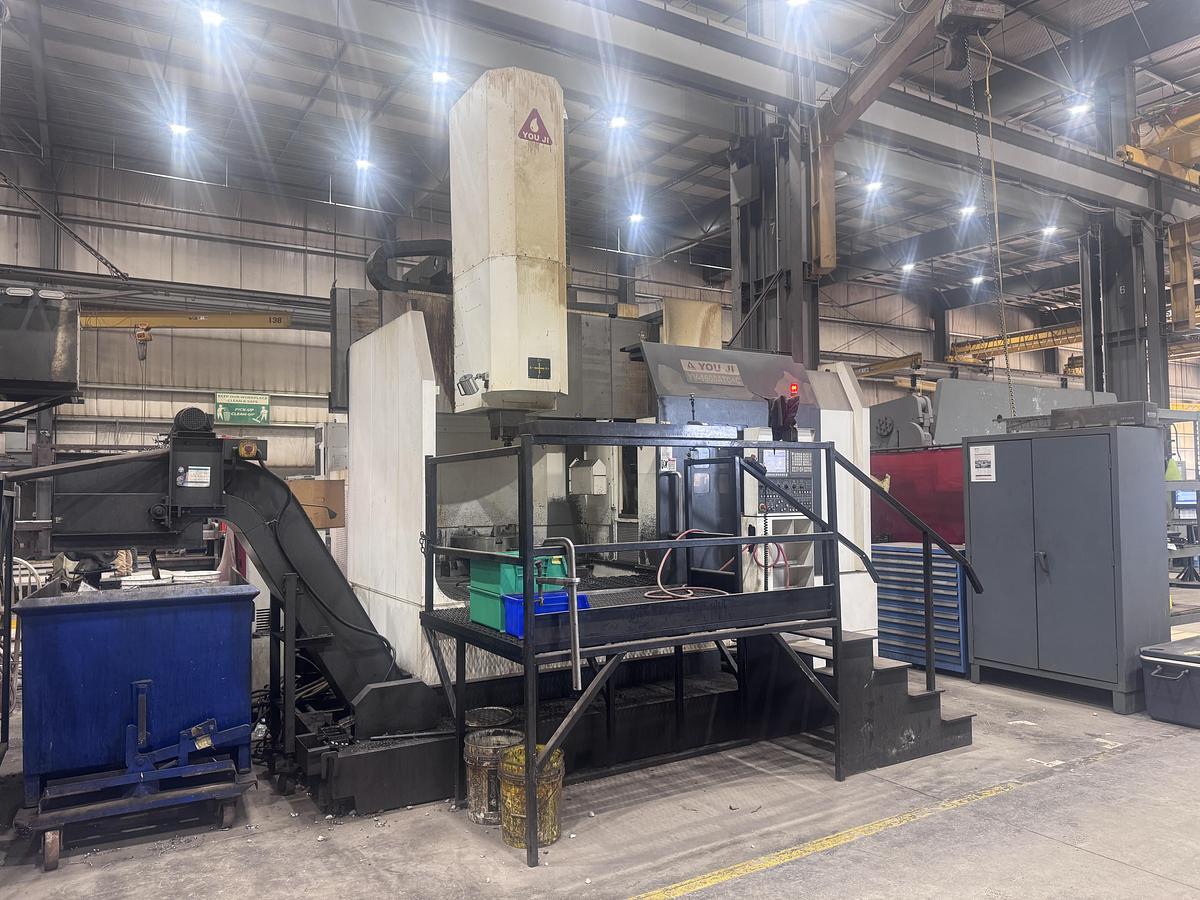

Youji YV-1600 CNC Vertical Lathe With Live Tooling
Youji YV-1600 CNC Vertical Lathe With Live Tooling
Location:MI
or
Call 1-262-284-5611
Description

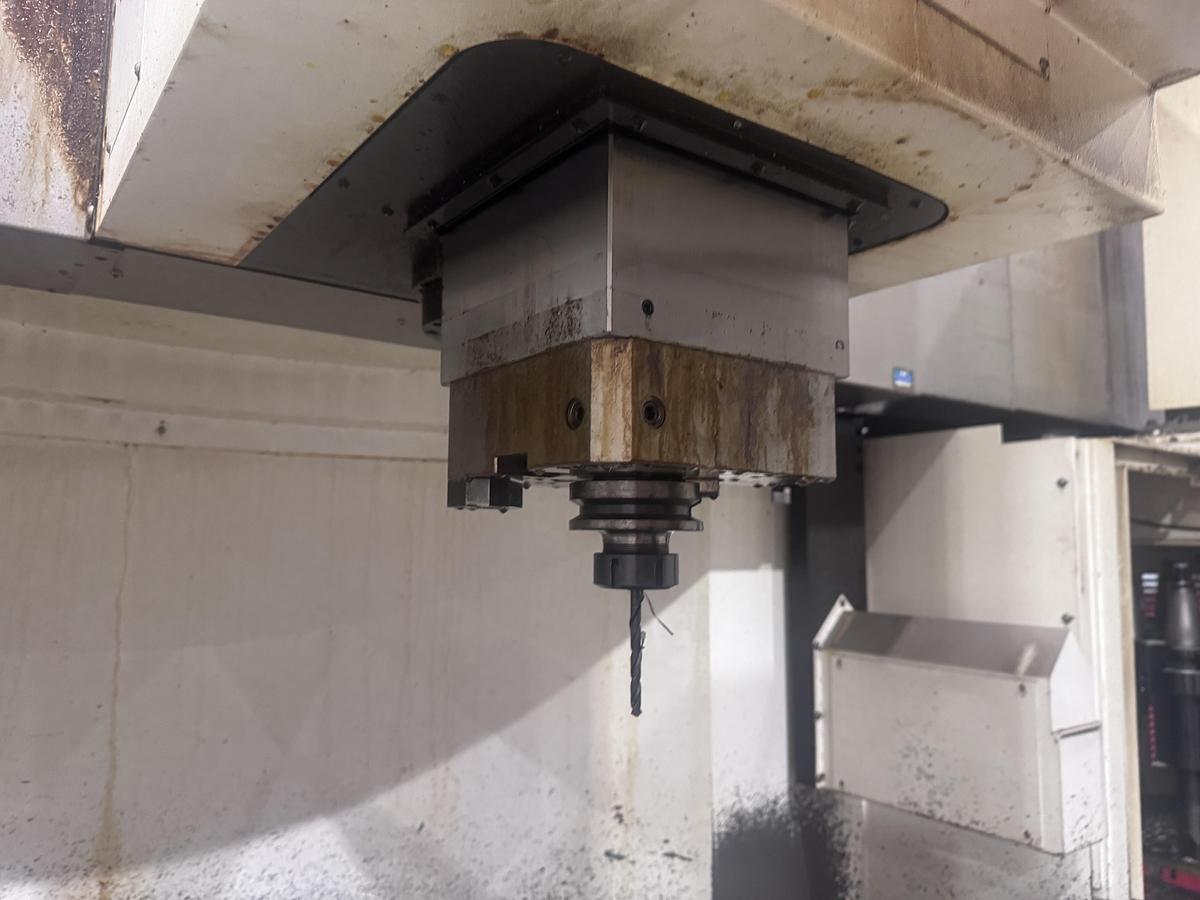

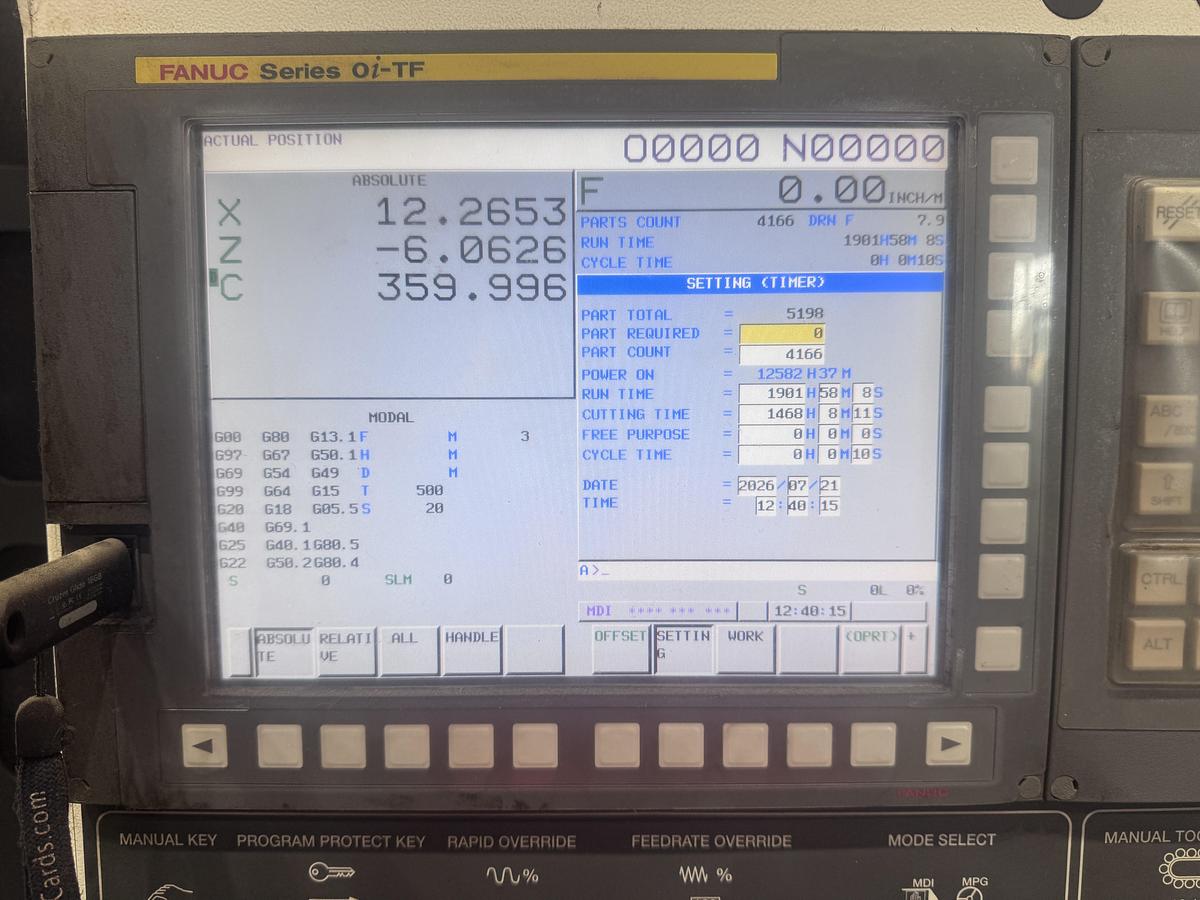

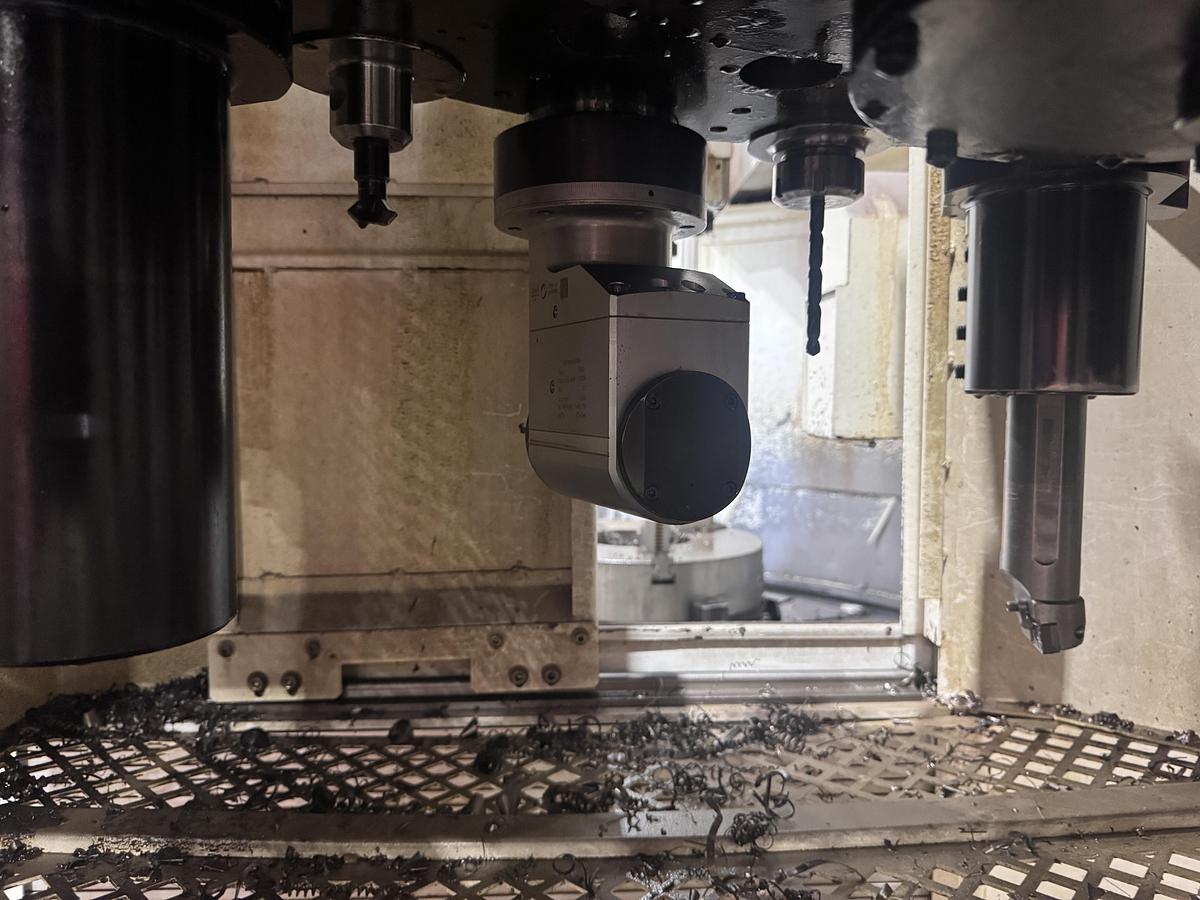

Fanuc Oi-TF, Live Tooling, Chip Conveyor, Coolant Tank & Pumps, Misc. Tooling, 4-Jaw Manual Chuck, C-Axis.
Specifications
| Manufacturer | Youji |
| Model | YV-1600 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 3710 |
| Swing | 78.4" |
| Turning Diameter | 70.86" |

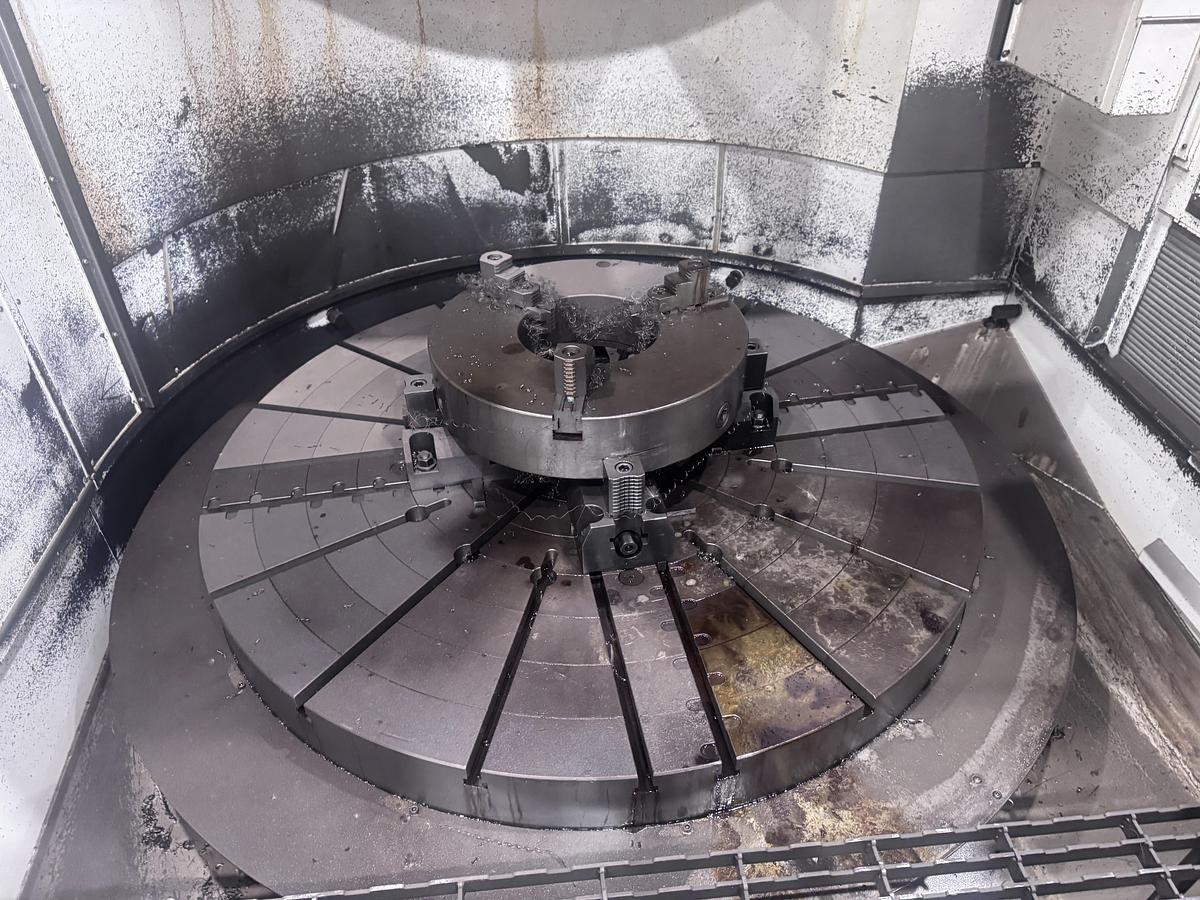

| Table Diameter | 63" |
| Max. Table Load Capacity | 17,636 lbs |
| Chuck Size | 63" 4-Jaw |
| Max. Height Under Rail | 47.24" |
| Vertical Travel Of Cross Slide | 31.49" |
| X- Axis Travel | 48.23" |
| Z-Axis Travel | 35.43" |
| Spindle Taper | CAT#50 |
| Spindle Speeds | 70 - 250 RPM |
| Spindle Motor | 60 HP |
| Live Tooling Speed | 2,400 RPM |
| Live Tooling Motor | 15 HP |

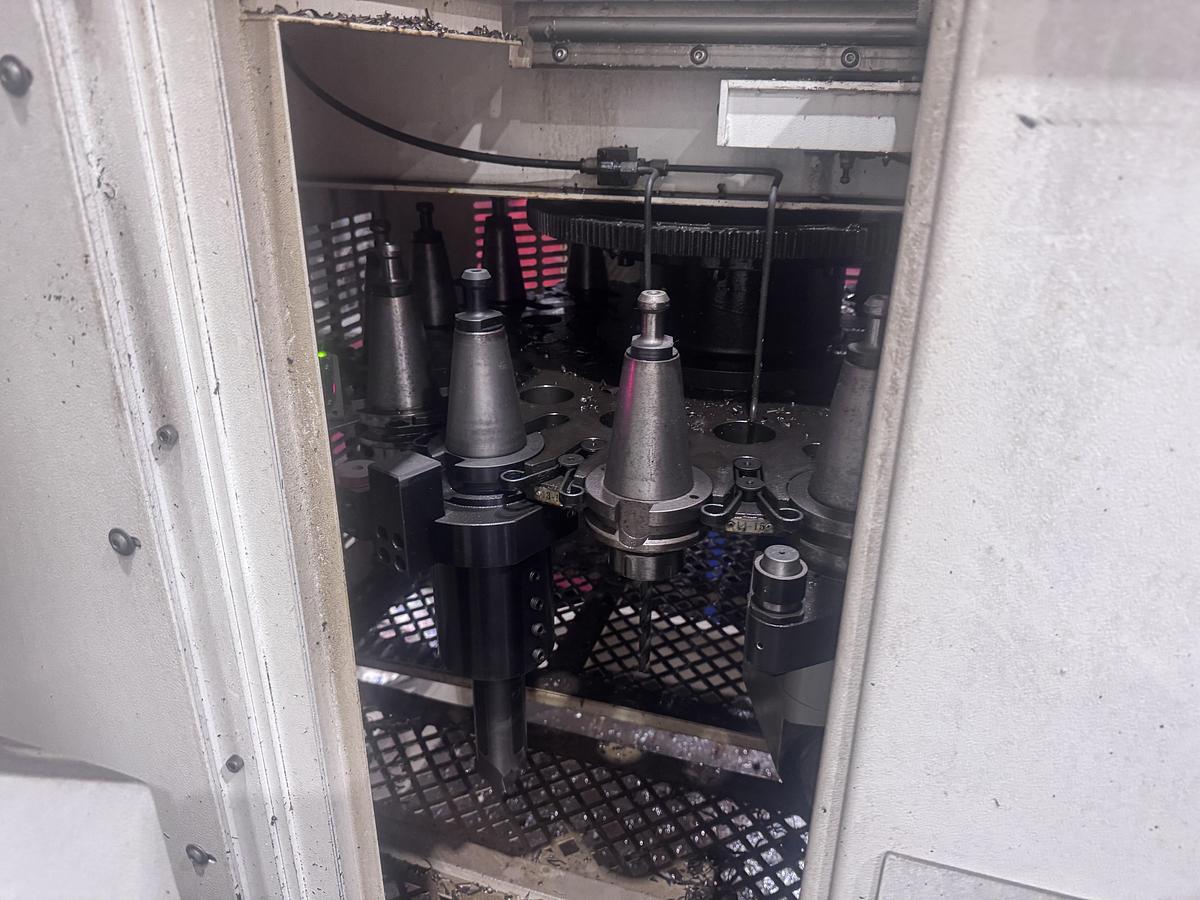

| Auto Tool Change Capacity | 16 ATC |
| Approx. Machine Dimensions | 178" x 230" x 213" Max. Height |
| Approx. Machine Weight | 55,000 lbs |
