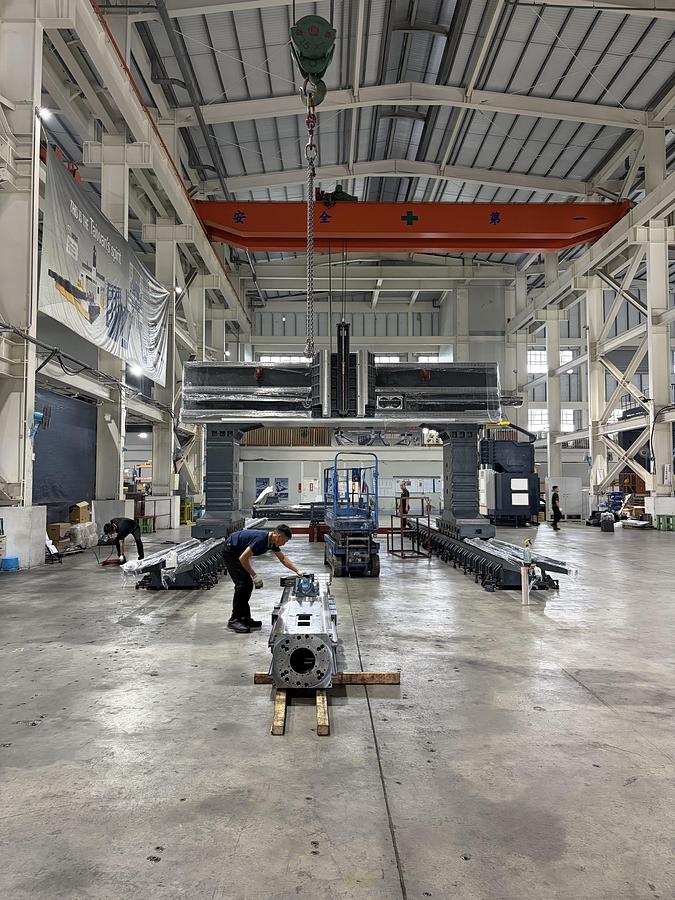

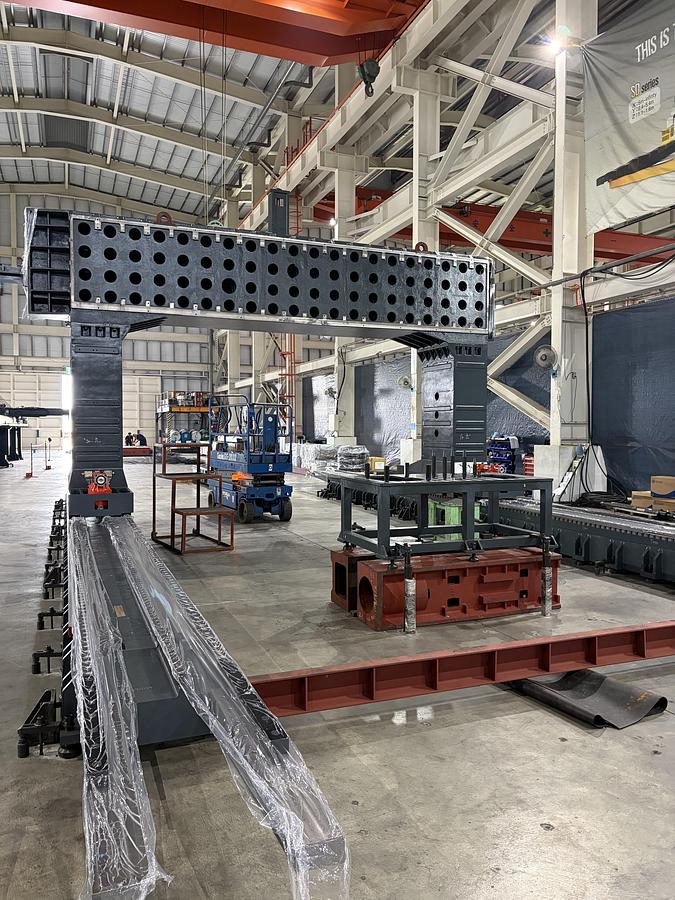

FourStar SD-54100+F CNC Sliding Double Column Machining Center
FourStar SD-54100+F CNC Sliding Double Column Machining Center
Location:Taiwan
Description
100 % Heavy Duty Cast Iron frame built, Fanuc Oi-MF PLUS, 10.4" LCD Screen, Spindle Chiller, Spindle Air Blast, Cutting Coolant System, Auto Lub. System, Rigid Tapping, Elect. Cabinet Heat Exchanger, USB/ RJ45/ Ethernet Interface, N2 Counter Balancing System, Dual Screw Type Chip Remover, Steel belt Type Chip Conveyor With Cart, Operator Manual, Work Lamp, Tool Kit, Foot Switch For Tool Release, X/U Axis Each With M5 Rack & Pinion System, Y-Axis Each M4 Rack & Pinion System with two Piece REDEX(KRP2+R.31.4H) France Made Reducer, Z-Axis with Ballscrew, X/U/Y/Z Axis With Fagor Linear Scales, X/U/Y/Z Axis Linear Guideways, Open Enclosure Splash Guard, X-Axis Telescoping Cover +Y Axis Javara Cover, Moving Operator platform, Base Leveling Screws & Foundation Bolts, Ladder And Platform
Specifications
| Manufacturer | Fourstar |
| Model | SD-54100+F |
| Year | 2026 |
| Condition | New |
| Stock Number | 3708 |
| X- Axis Travel | 315" - 8 Meter |
| Y-Axis Travel | 212.59" - 5400 mm (+ 25.59" for five face head to machine the 212" between columns ) |
| Z-Axis Travel | 55.11" - 1400mm |
| Distance Between Columns | 214.56" - 5450mm |
| Ram Size (4 Guide Ways) | 21.65" x 21.65" - 550x550mm |
| Spindle Taper | BBT#50 Dual contact spindle nose |
| Spindle Speed | 4,500 RPM |
| Spindle Motor | 40/49.6 HP |
| Spindle Nose To Table Top | 23.46" - 78.58" - 596-1996mm |
| ATC Capacity | 60 ATC |
| Max. Tool Diameter | 4.92" Full Changer / Adjacent Pocket 8.66" -125mm / 220mm adjcent) |
| Max. Tool Weight | 39.6 lbs / 18kg |
