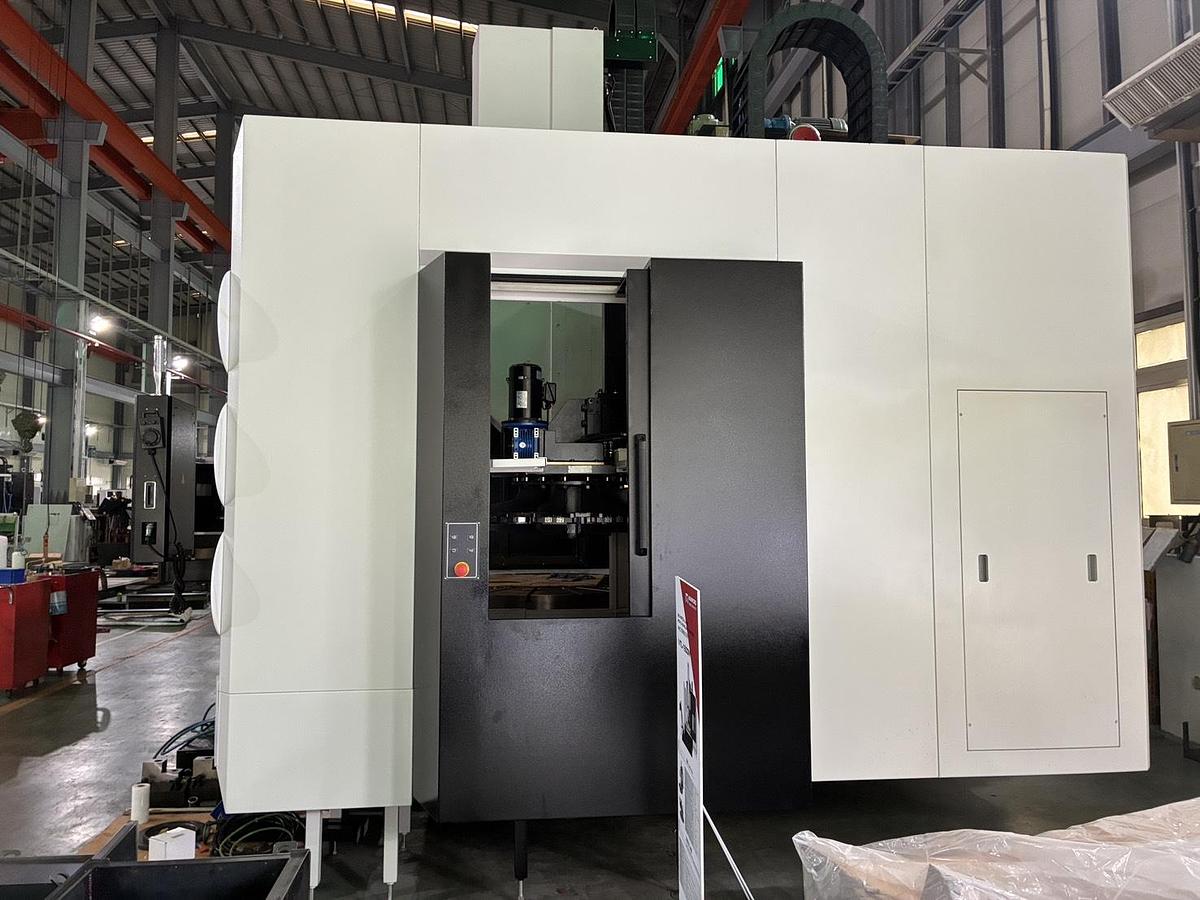

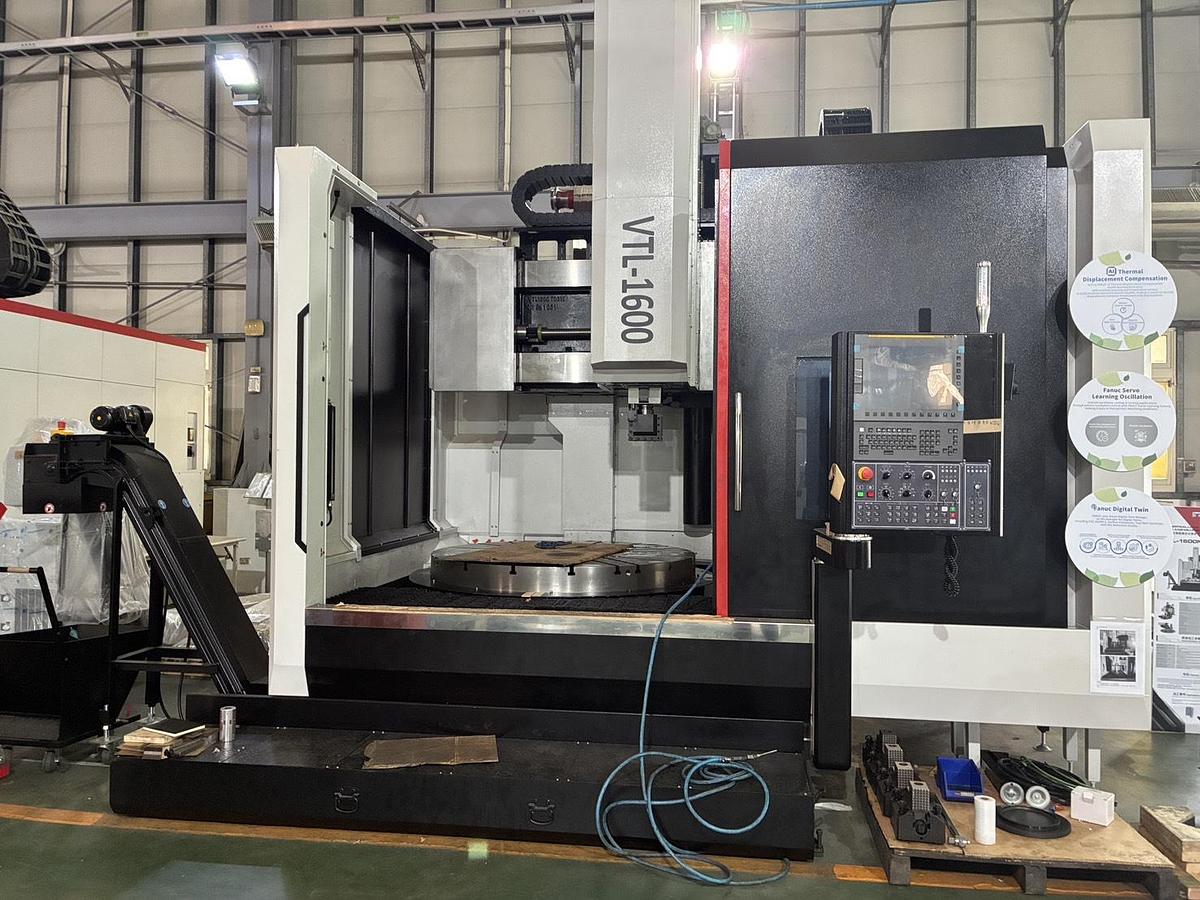

Manford VTL-1600 CNC Vertical Turret Lathe
Manford VTL-1600 CNC Vertical Turret Lathe
Location:Taiwan
or
Call 1-262-284-5611
Description
Fanuc Oi-TF Plus, 10.4" Screen, 63" 4-Jaw Chuck, Live Milling.
Specifications
| Manufacturer | Manford |
| Model | VTL-1600 |
| Year | 2026 |
| Condition | New |
| Stock Number | 3707 |
| Max. Swing Over Bed | 78.74" |
| Max. Machining Diameter | 70.86" |
| Max. Machining Length | 49.21" |
| Spindle Speed (Geared Head) | Low Gear 1-63 RPM/ High Gear 63-250 RPM |
| Spindle Motor | 49.6 HP/60 Hp |
| Live Spindle Motor | 10HP/14.75 HP |
| Max. Live Milling Speed | 2,400 RPM |
| C-Axis Motor | 10HP |
| X- Axis Travel | 4-43.3" |
| Z-Axis Travel | 35.43" |
| ATC Capacity | 16 ATC |
| Spindle Taper | BT#50 |
| Max. Tool Length | 15.75" |
| Approx. Machine Dimensions | 168.5" x 184.6" x 216.92" |
| Approx. Machine Weight | 57,320 lbs |
