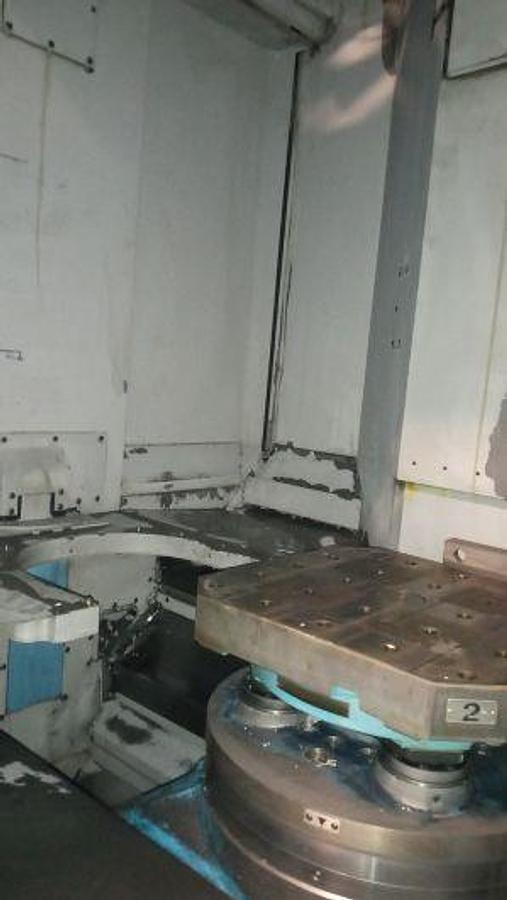

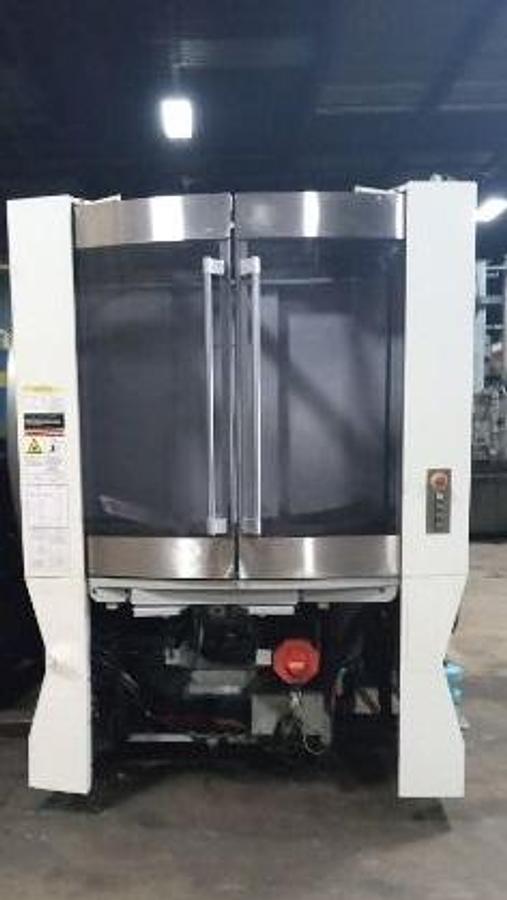

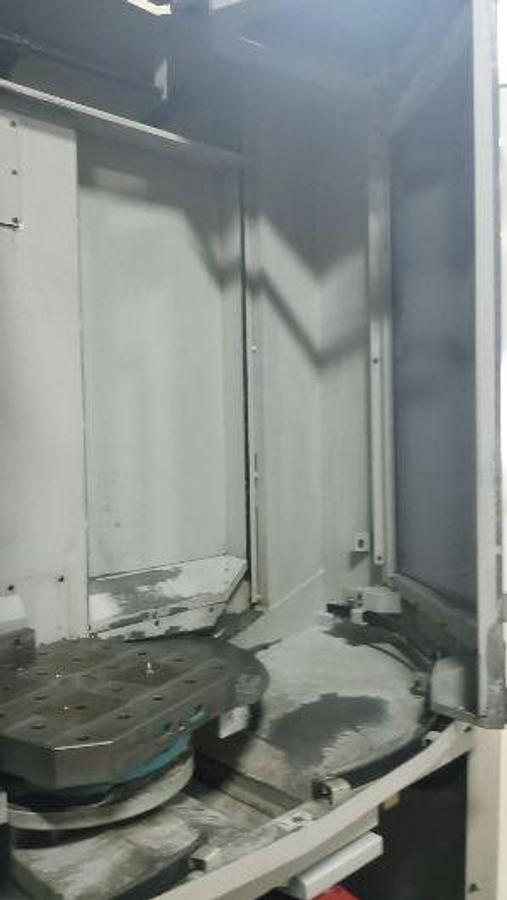

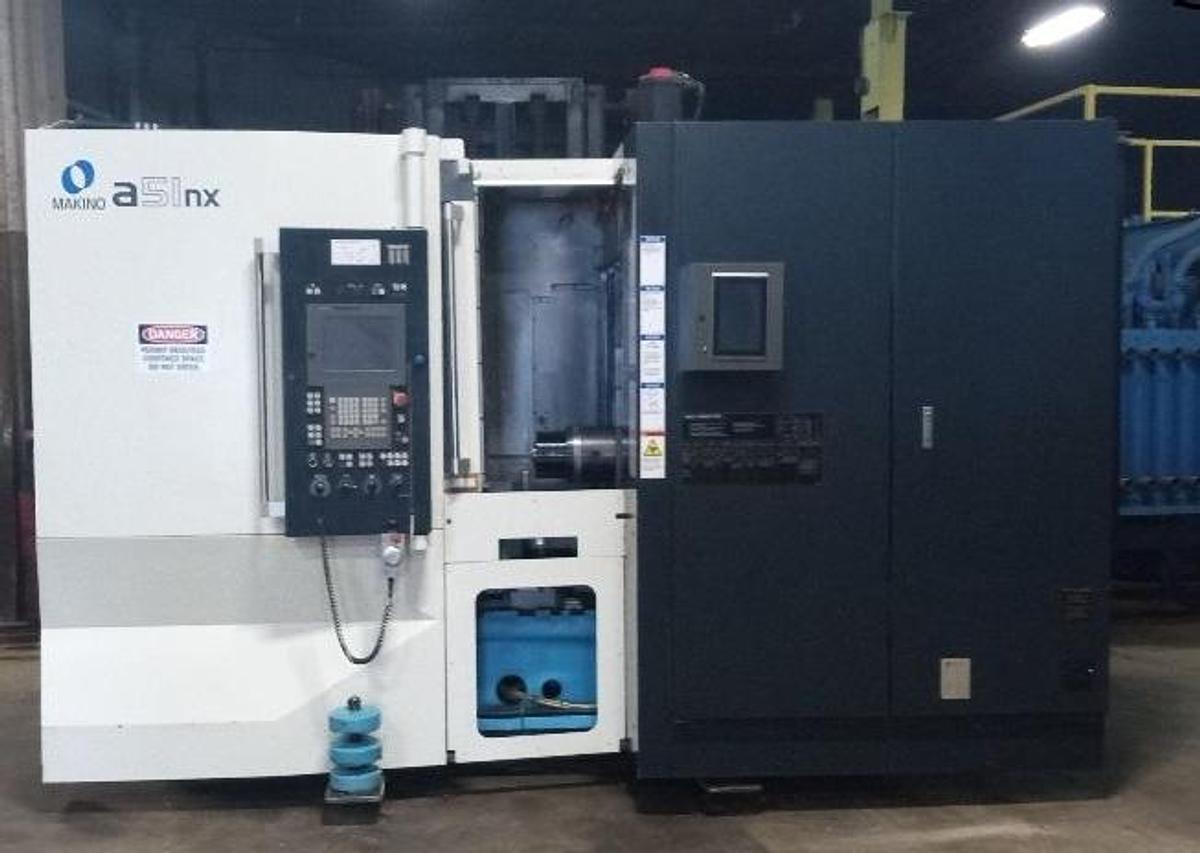

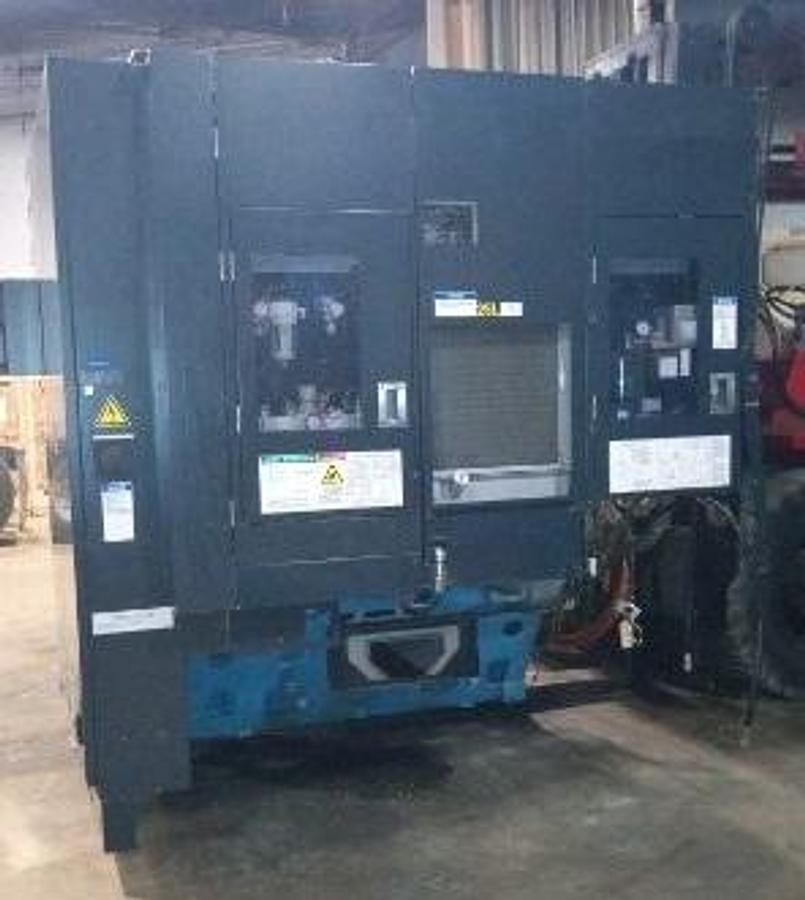

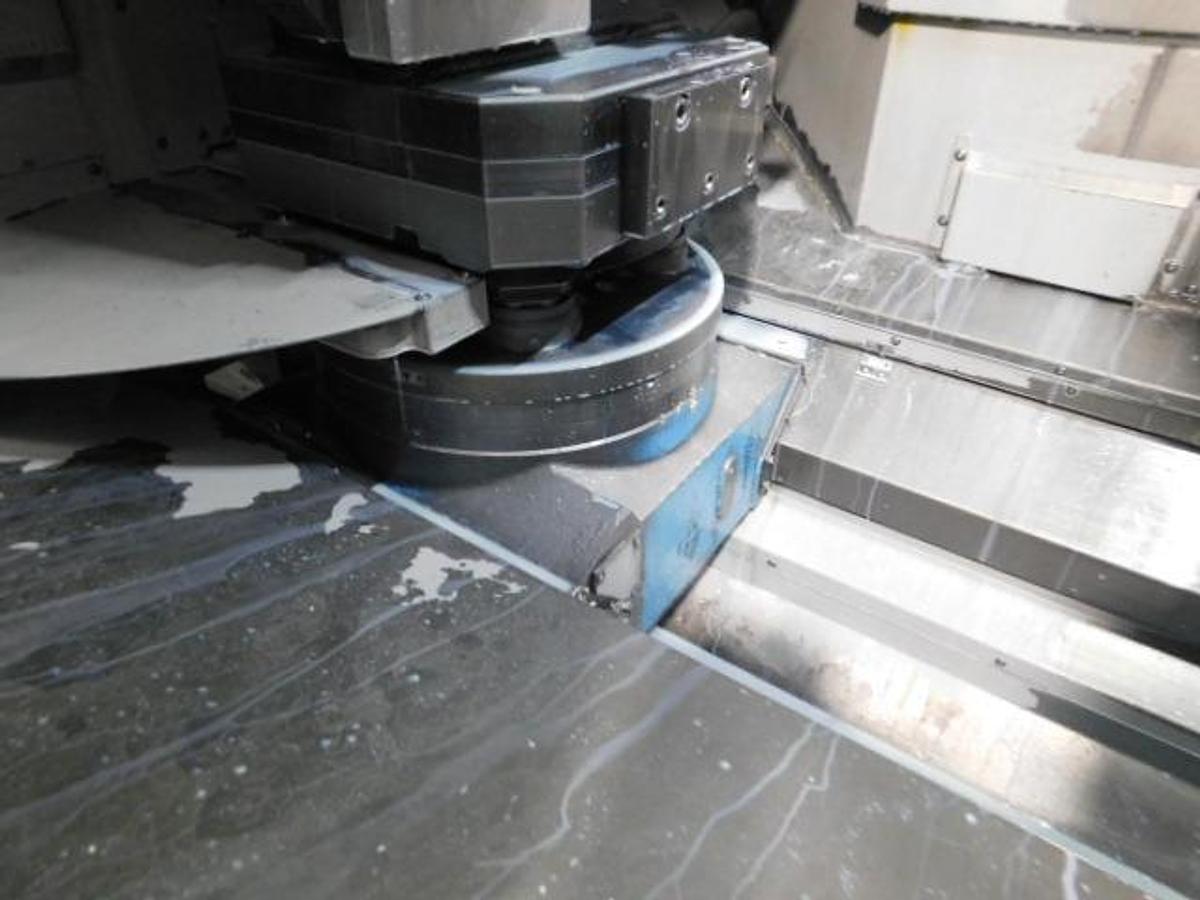

Makino a51NX 4-Axis CNC Horizontal Machining Center
Makino a51NX 4-Axis CNC Horizontal Machining Center
Location:Wisconsin
or
Call 1-262-284-5611
Description
EQUIPPED WITH:

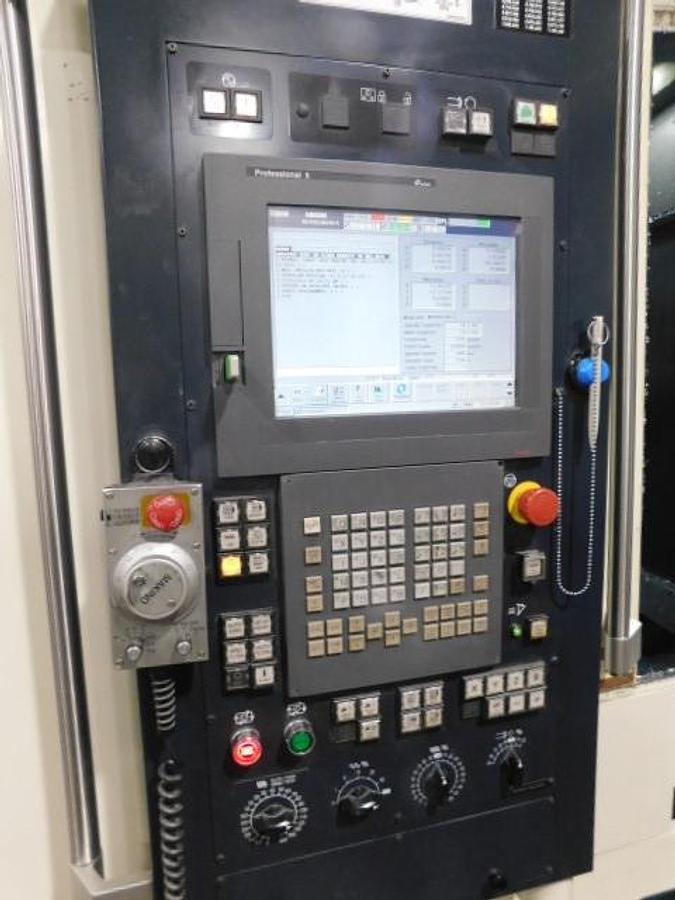

Fanuc Professional 5 control, Hosnic Chip conveyor, Coolant thru spindle, Full 4th axis, 1G axis acceleration, One piece way covers, Step down transformer, Broken Tool Detection, Caron Tool Monitor.

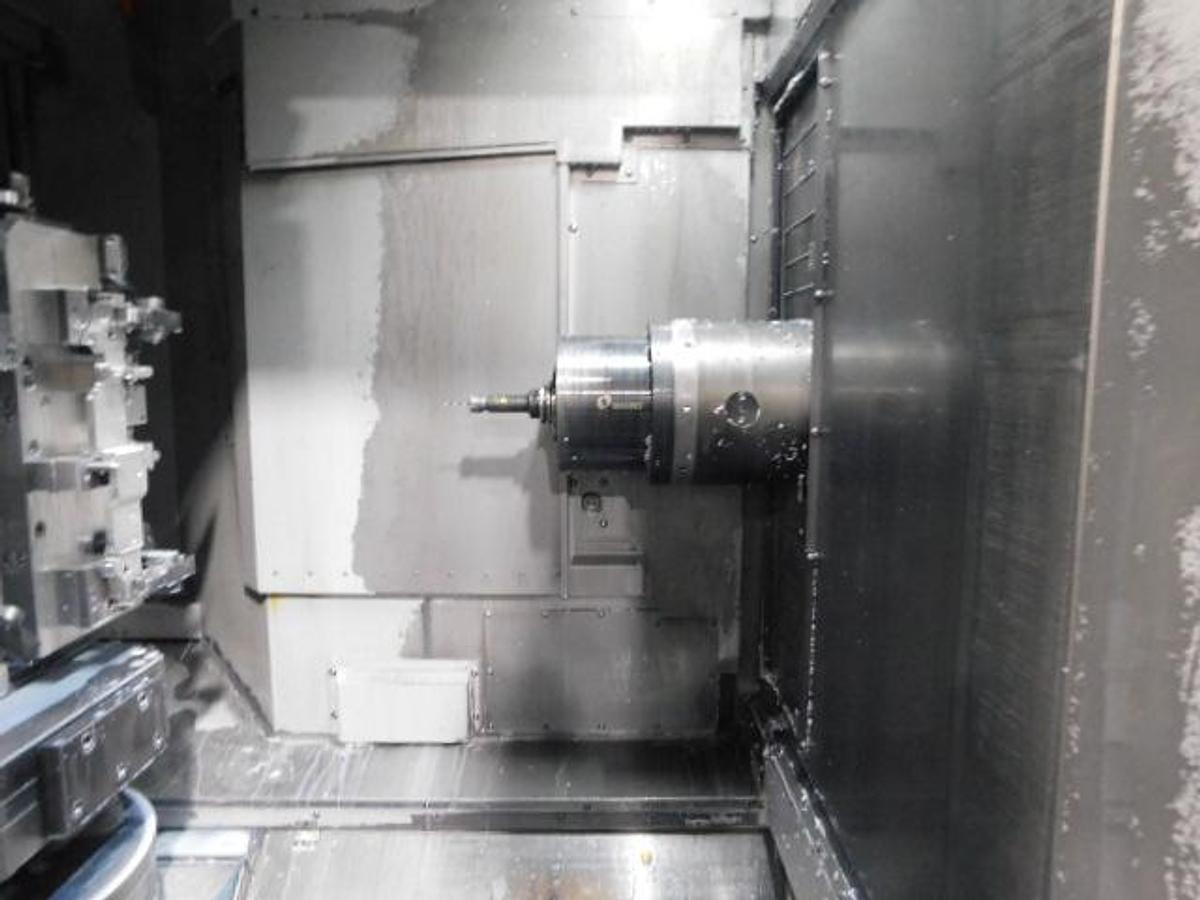

Recent new spindle installed by Makino due to poor surface finishes, but was holding tolerances. Machine was making good parts upon purchase. (The new spindle only has about 60 hours on it)
Specifications
| Manufacturer | Makino |
| Model | a51NX |
| Year | 2012 |
| Condition | Used |
| Serial Number | 527 |
| Stock Number | 3705 |
| Pallet Size | 15.7" x 15.7" |
| X-Axis Travel | 22" |
| Y-Axis Travel | 25" |
| Z-Axis Travel | 25.2" |
| Rapid Feed Rate X, Y & Z | 2,362 IPM |
| Max Feed Rate X, Y & Z | 1,968 IPM |
| Max. Work Piece Weight | 1,100 lbs |
| Spindle Motor (2 Spindle Ranges) | 50 HP |
| Spindle Taper | CT#40 |
| Spindle Speed | 14,000 RPM |
| Spindle Torque | 240 NM |
| ATC Capacity | 60 ATC |
| Approx. Machine Dimensions | 98" x 135" x 106" |
| Approx. Machine Weight | 17,200 lbs |
