Vision Wide NF-8223 CNC Bridge Mill
Vision Wide NF-8223 CNC Bridge Mill
Contact us for price
Location:Taiwan
or
Call 1-262-284-5611
Description

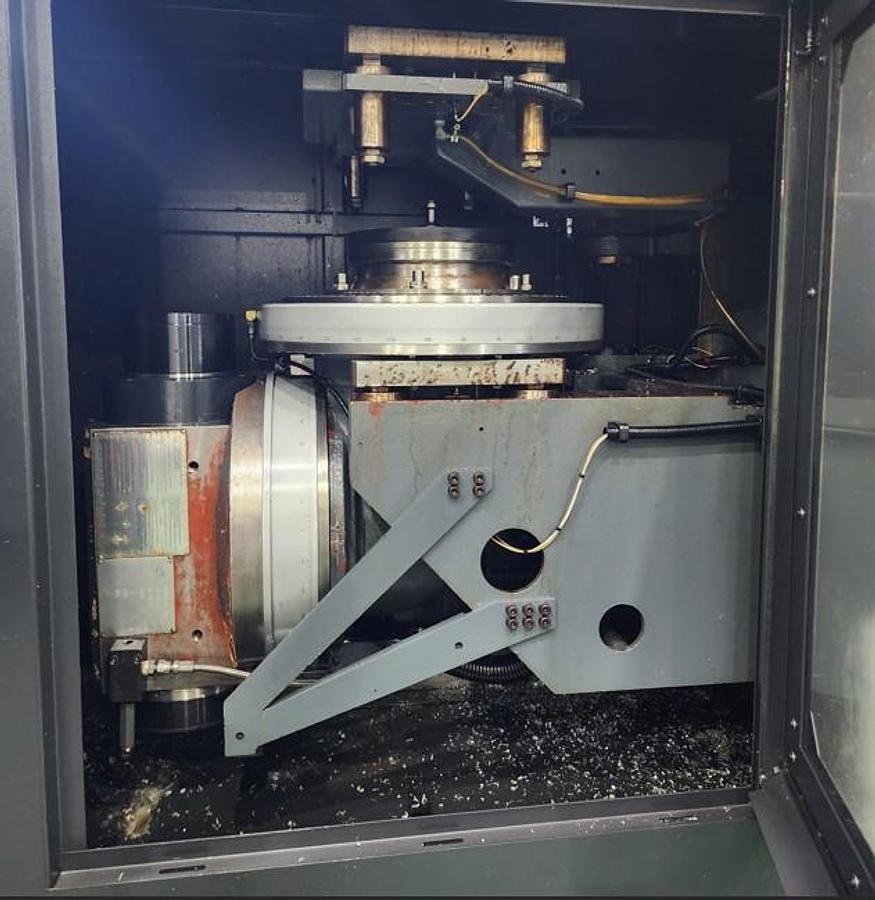

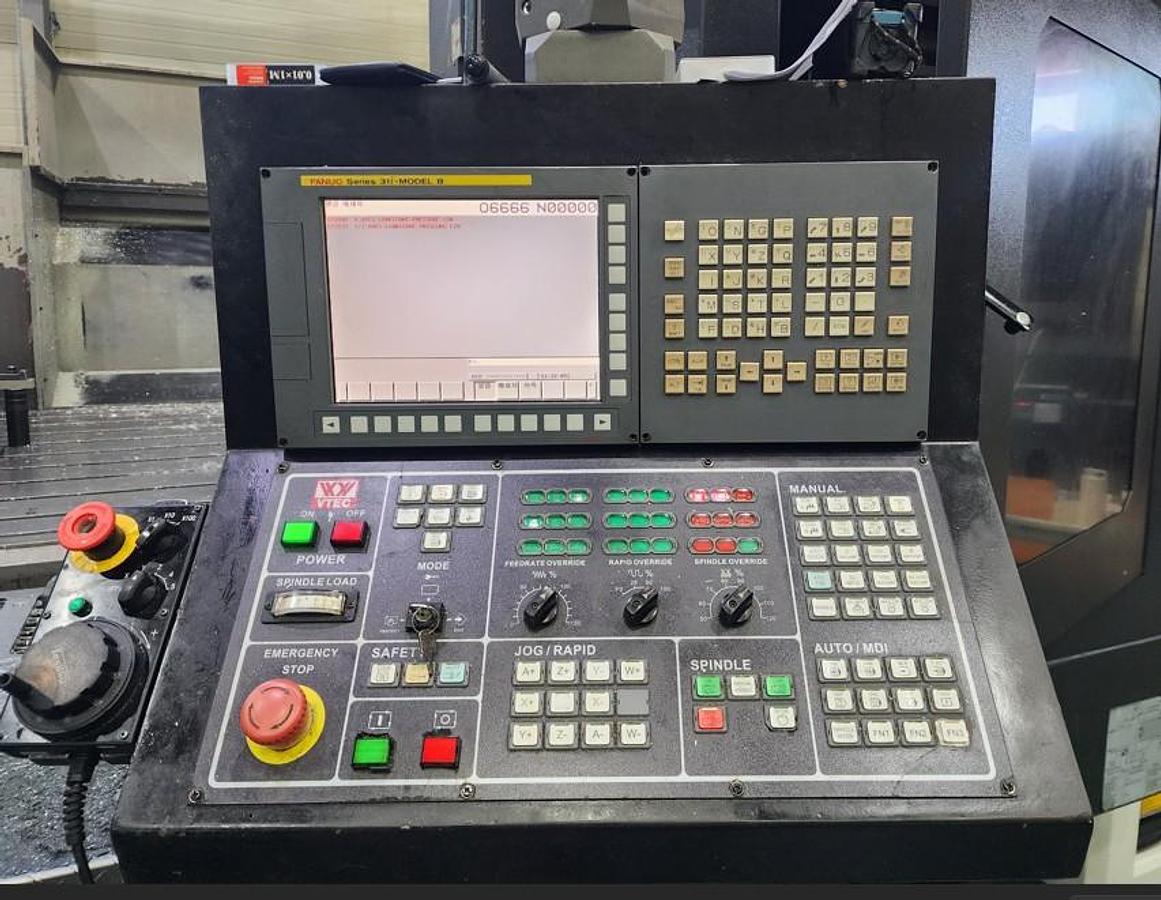

Fanuc 31i-MB, Univeral Head 2-Axis 5 Degree Indexing, Cut Aluminum Only
Specifications
| Manufacturer | Vision Wide |
| Model | NF-8223 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 3703 |
| X-Axis Travel | 322.83" Linear Way |
| Y-Axis Travel | 90.55" Linear Way |
| Z-Axis Travel | 40.16" Box Way |

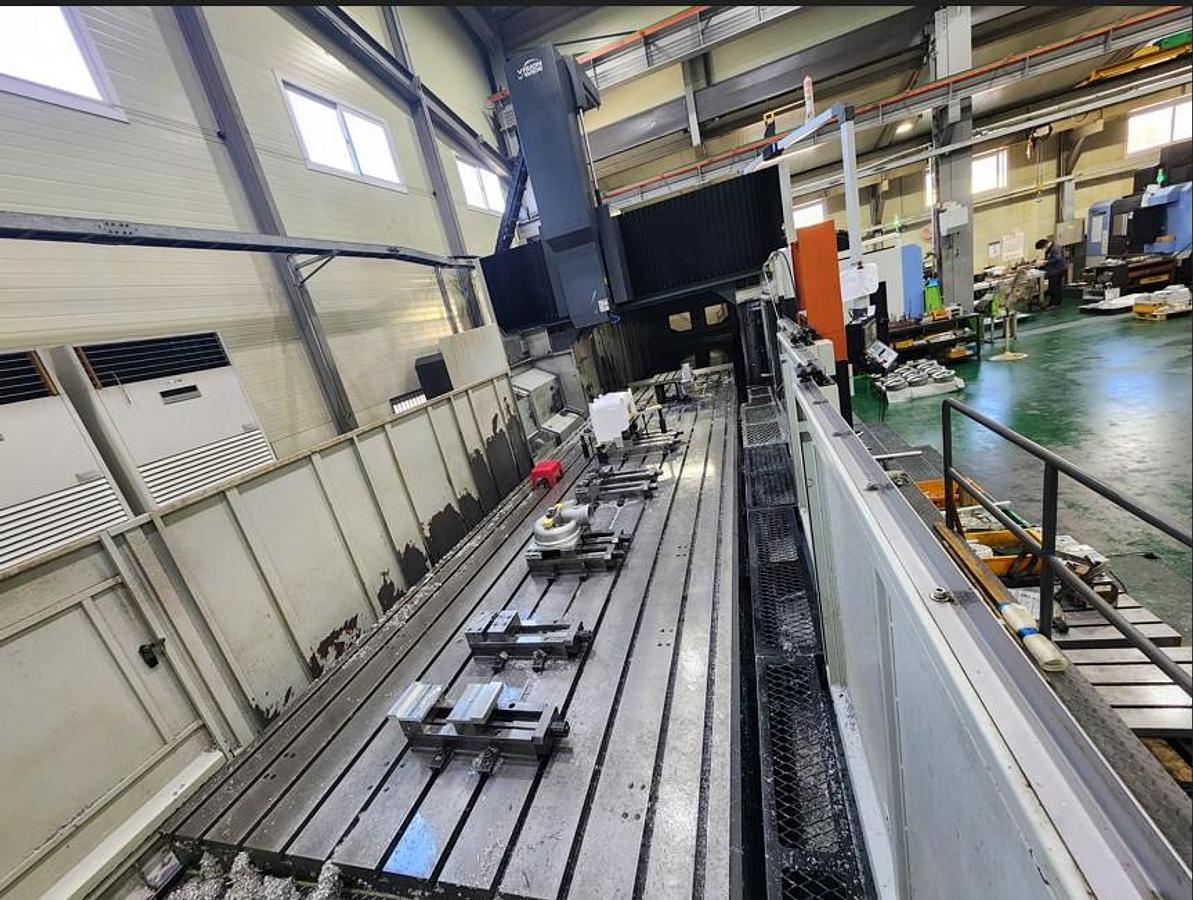

| Table Size | 314.96" x 80.71" |
| Distance Between Columns | 94.49" |
| Max. Table Load Capacity | 52,910 lbs |

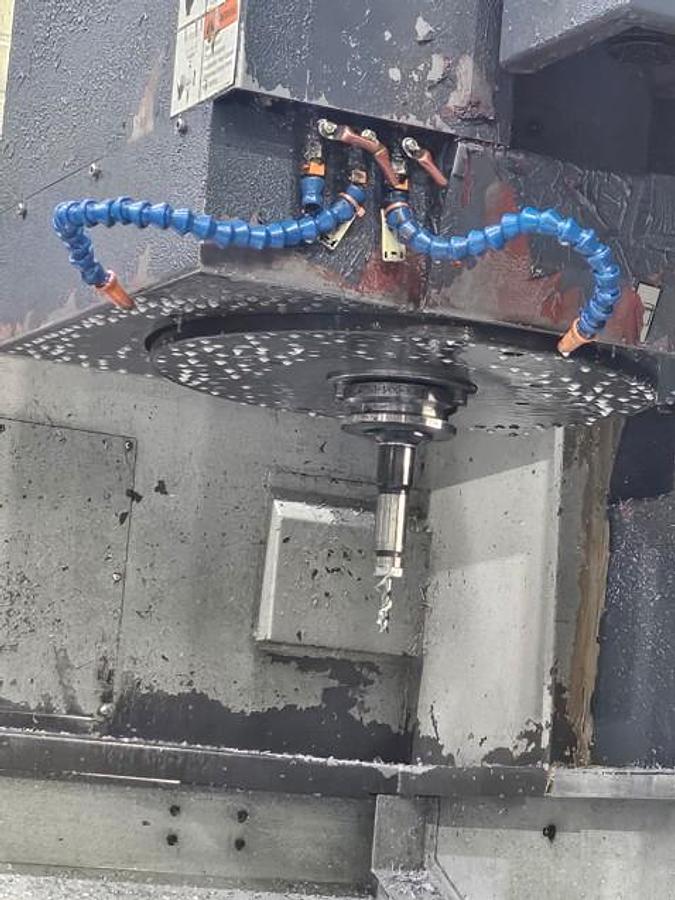

| Spindle Speed | 6,000 RPM |
| Spindle Motor | 34.8 HP |
| Spindle Taper | BT#50 |

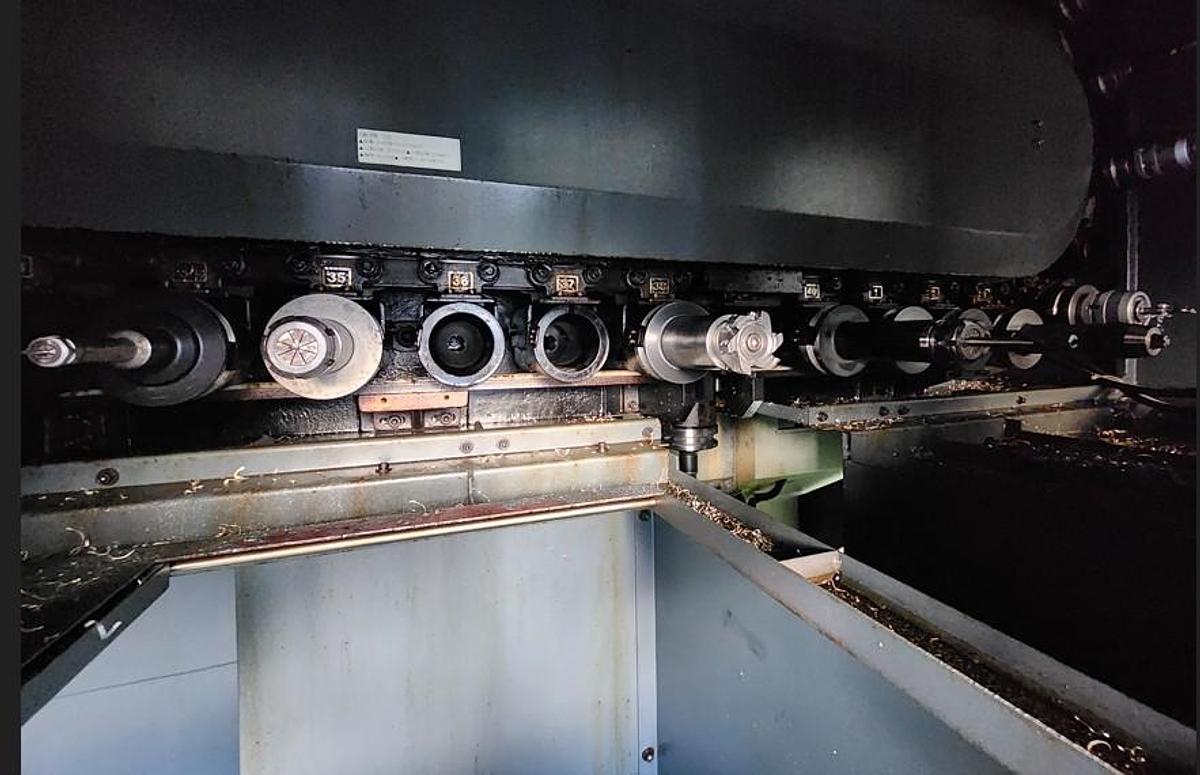

| ATC Capacity | 40 ATC |
