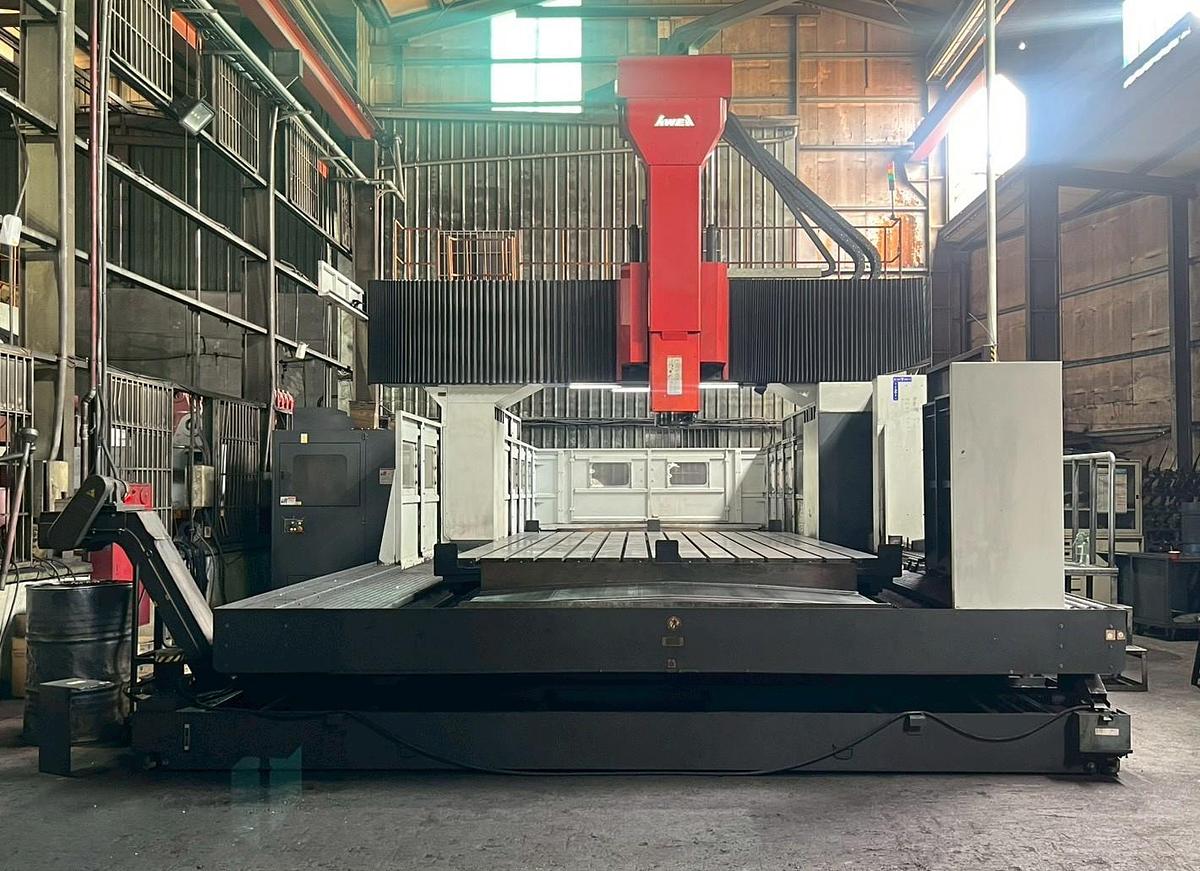

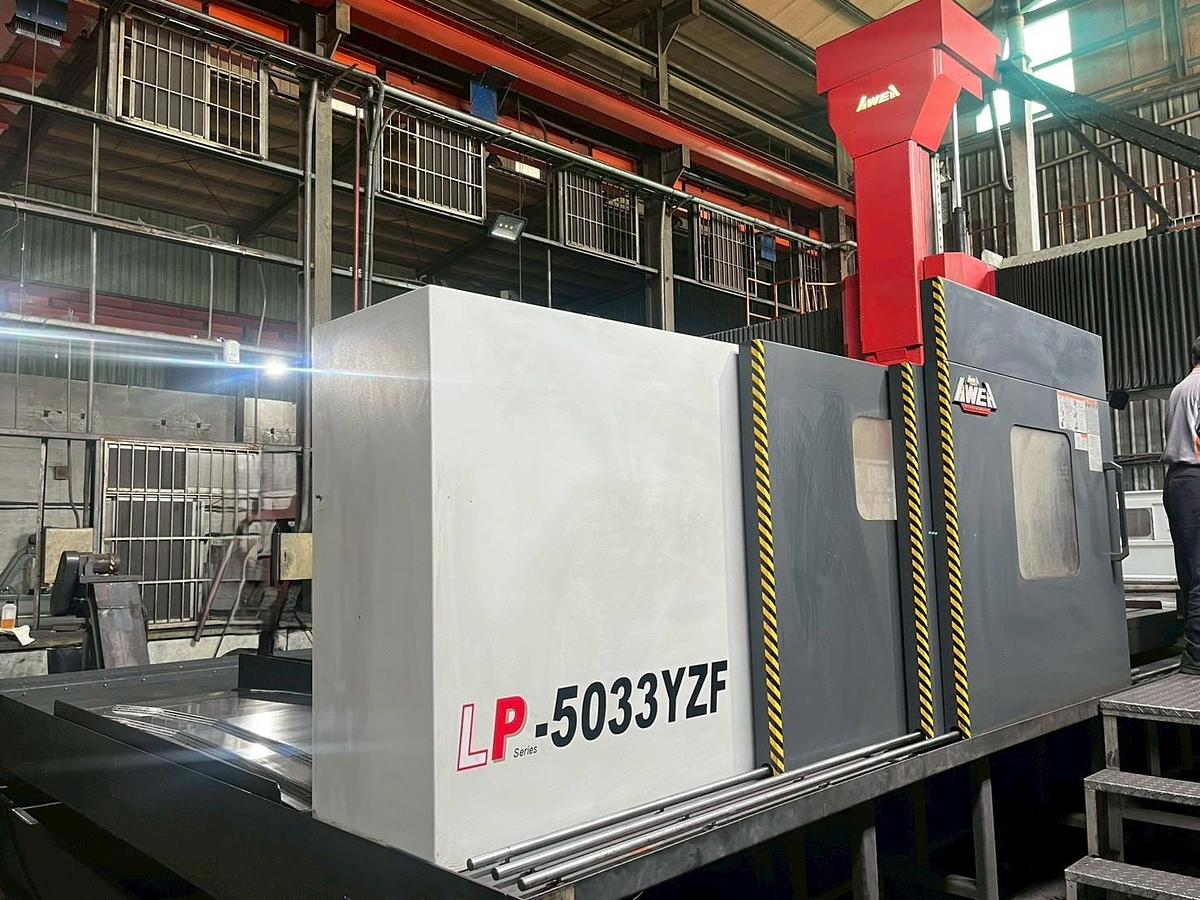

2020 Awea LP5033 YZF
2020 Awea LP5033 YZF
Contact us for price
Location:Taiwan
or
Call 1-262-284-5611
Description

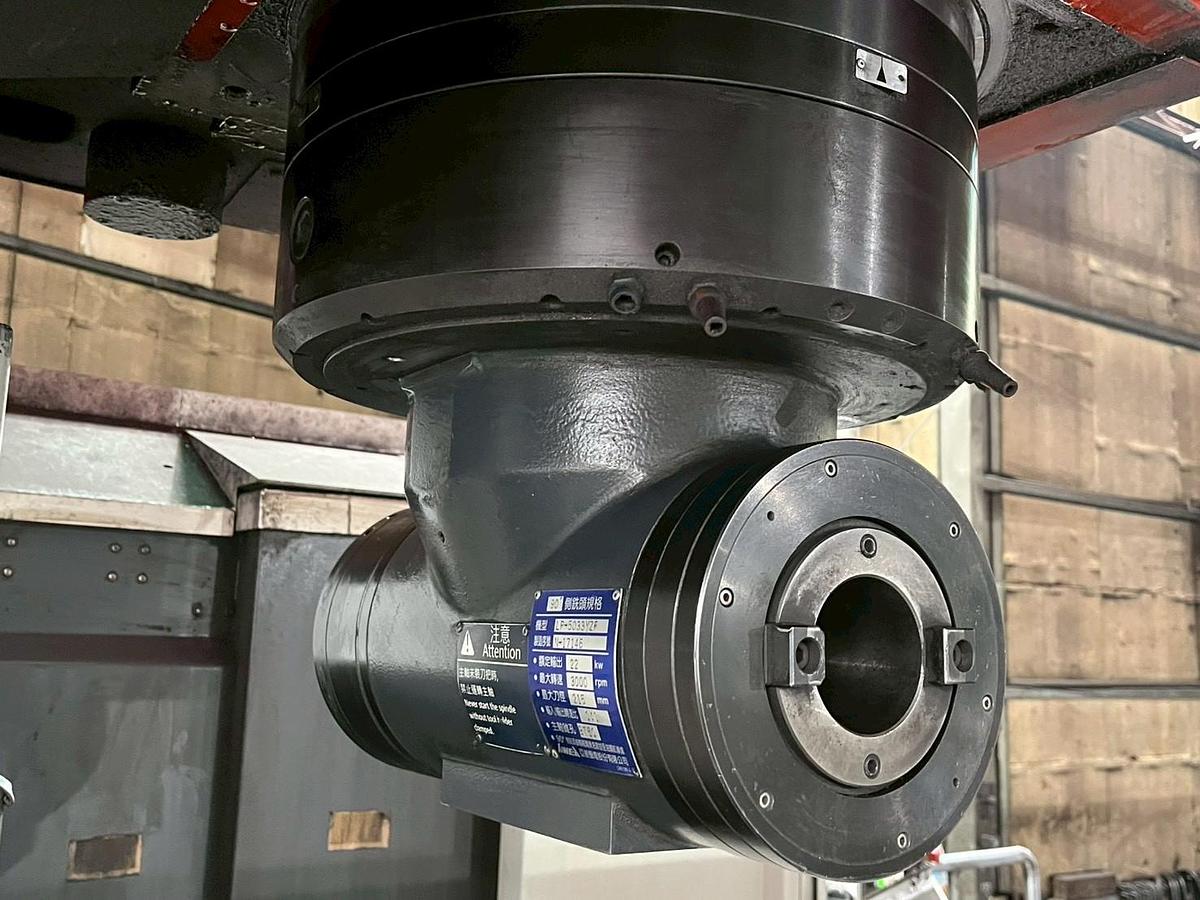

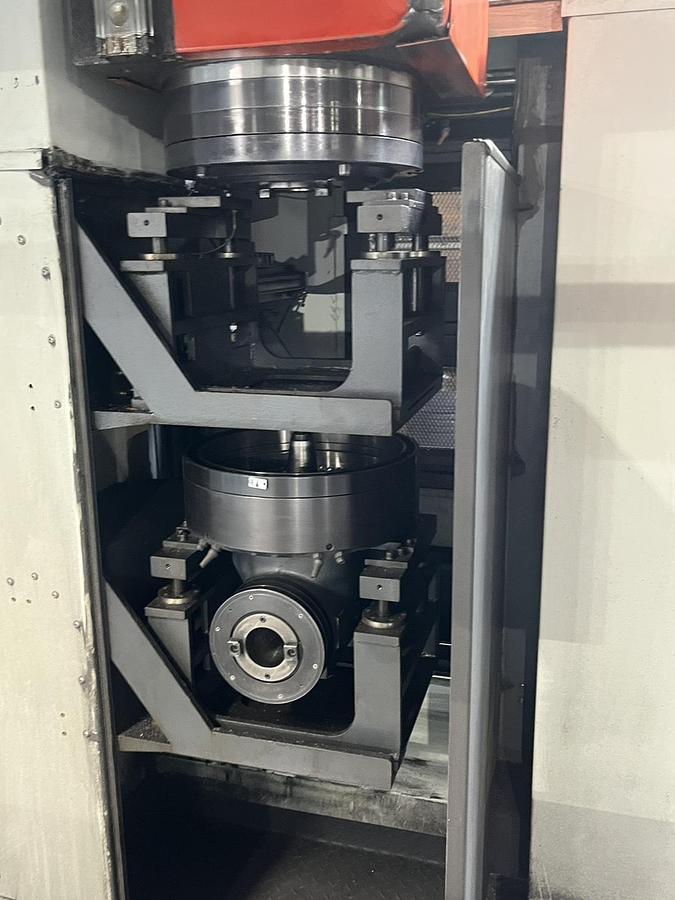

This machine is currently underpower for inspection in a facility in Taiwan in very good condition with apprx. 6,000 hours. It has one automatic 5 face head with pick up station and two additional extension heads which sit on the table for pick up. Having a larger Z axis travel than the standard and room under the rail is one key and the other is having 134" between the columns also a key feature to this machine.
Specifications
| Manufacturer | Awea |
| Model | LP5033 YZF |
| Year | 2020 |
| Condition | Used |
| Stock Number | 3702 |

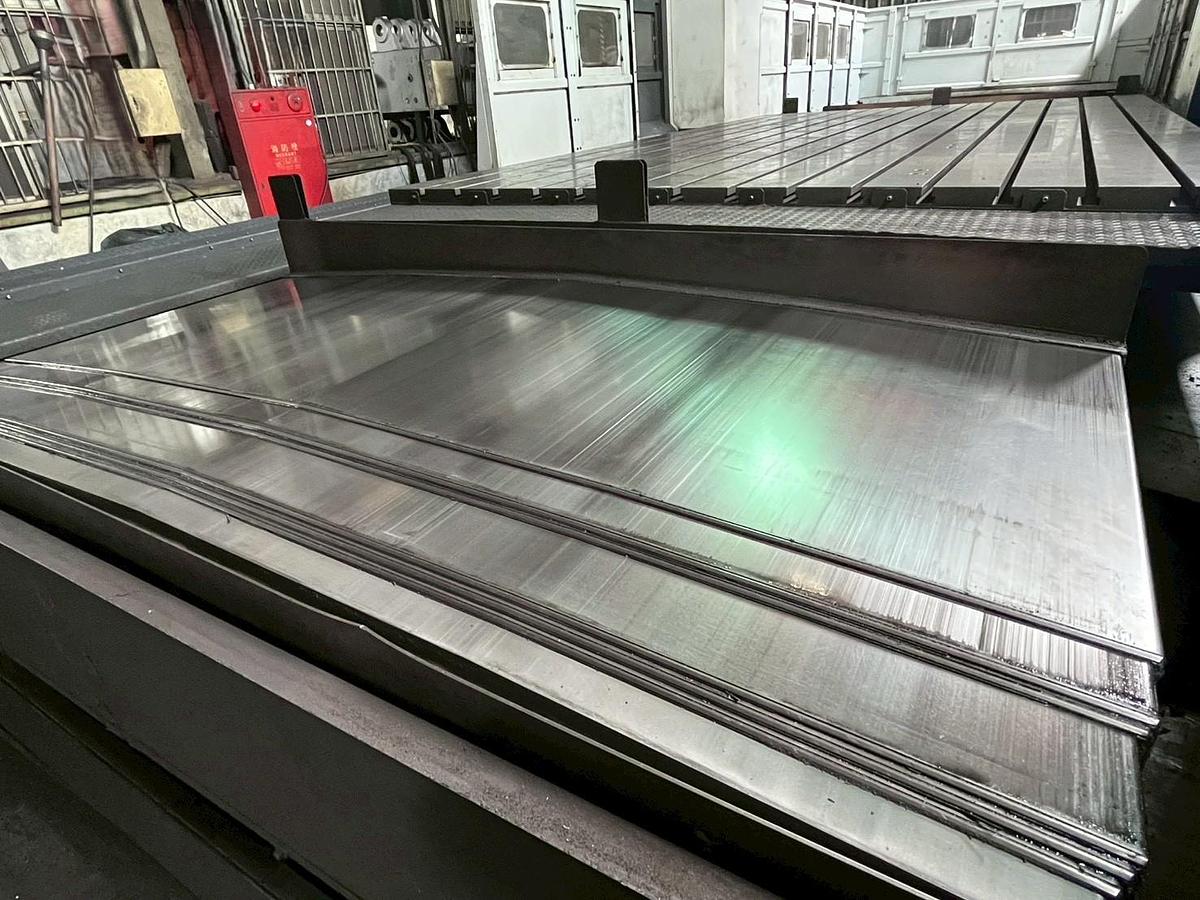

| Table size | 196.85" x 118.11" |
| Table Capacity | 39,600 lbs |
| X axis travel | 196.85" |
| Y axis travel | 157.48" |
| Z axis travel | 55.11" |
| Distance From Spindle Nose To Table Top | 7.87" - 62.99" |
| Distance Between Columns | 137.79" |
| Spindle Speed | 6,000 RPM |
| Spindle gear box | 2 speed |
| Spindle Taper | BT# 50 |
| Spindle Motor | 35/30 HP |

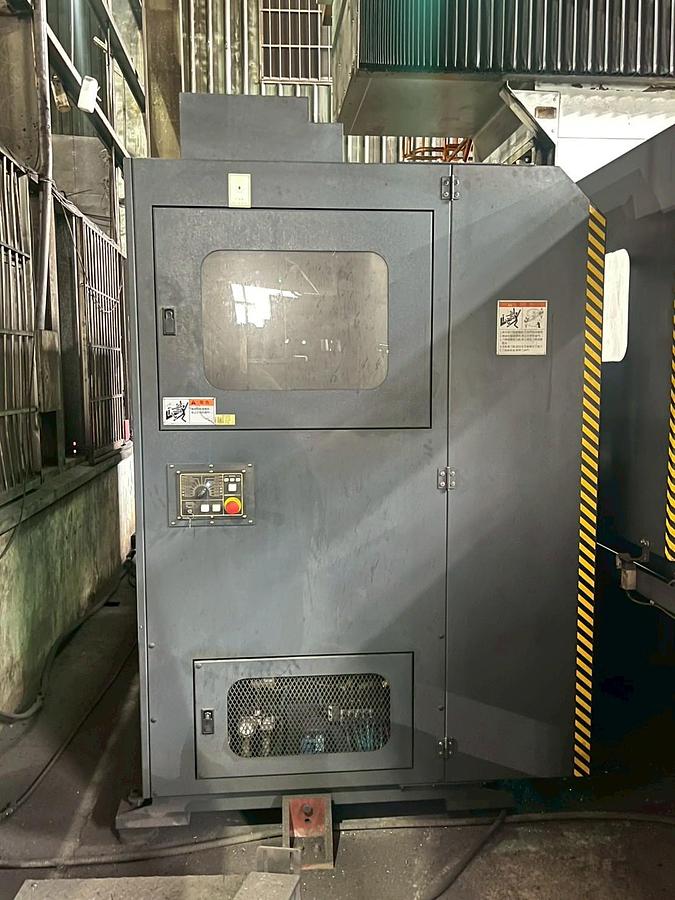

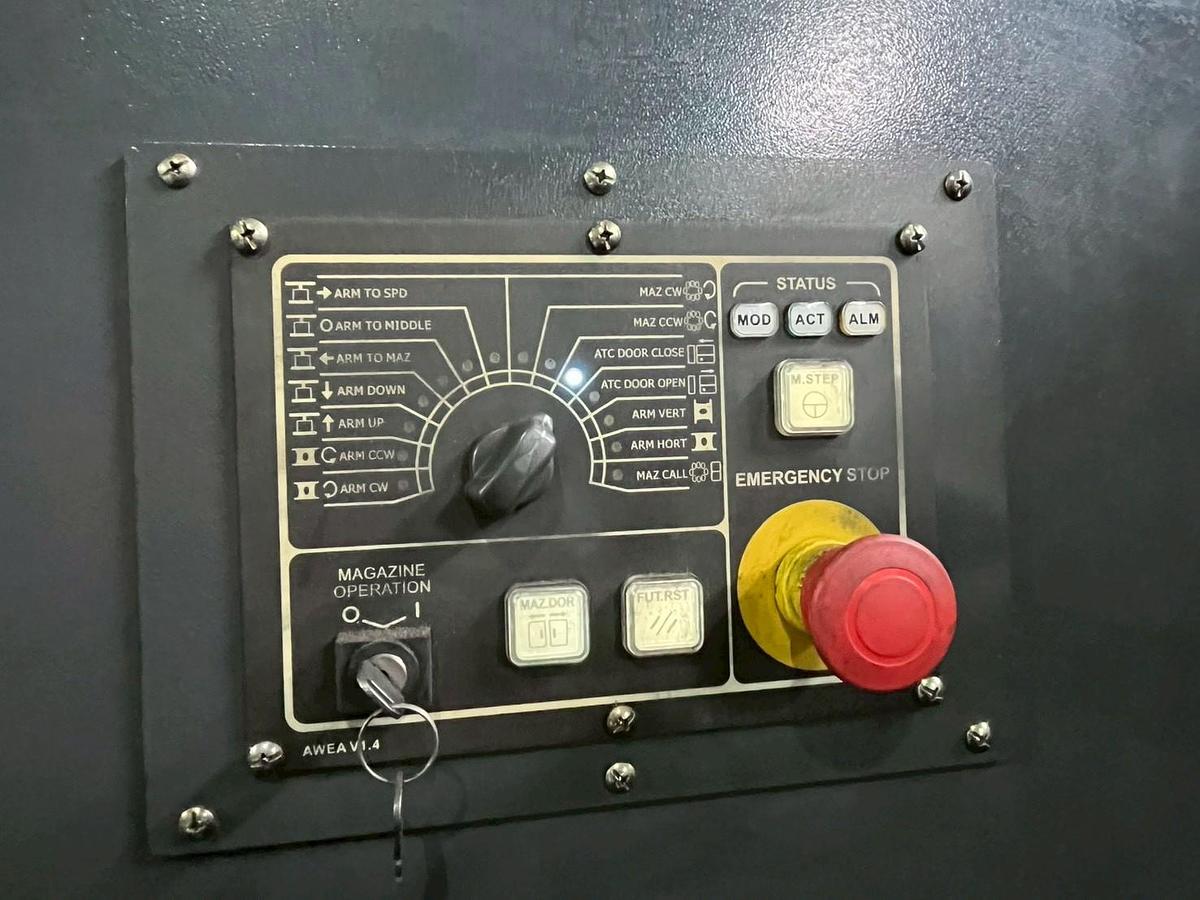

| Automatic tool changer | 60 ATC |

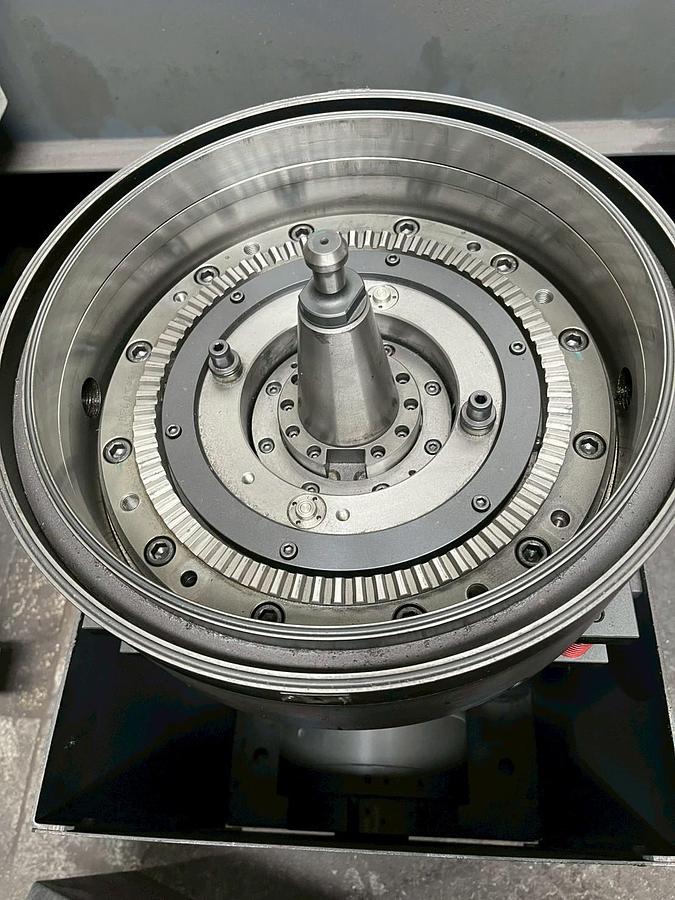

| Automatic head changer | (1) One position for programmable 5 face head 90 degree |
| Automatic right angle head positioning | 5 Degree |

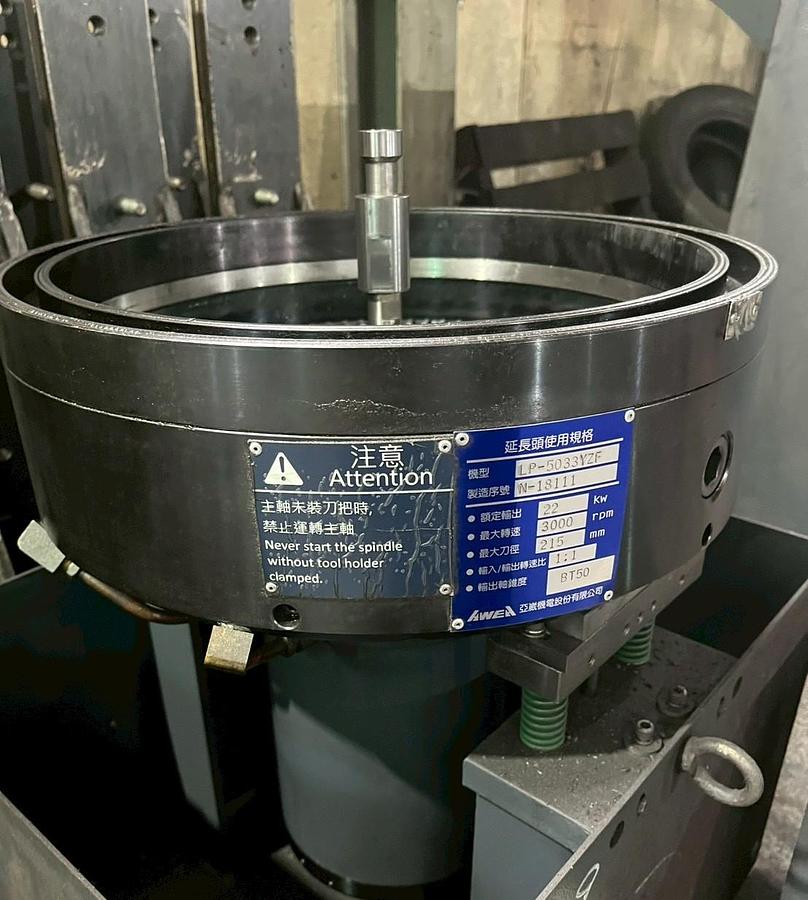

| Extension Heads | Two additional heads included, manual positioning on table for pick up |
| Coolant system | With lift up chip conveyor |
| Coolant table guarding | Around operator area |

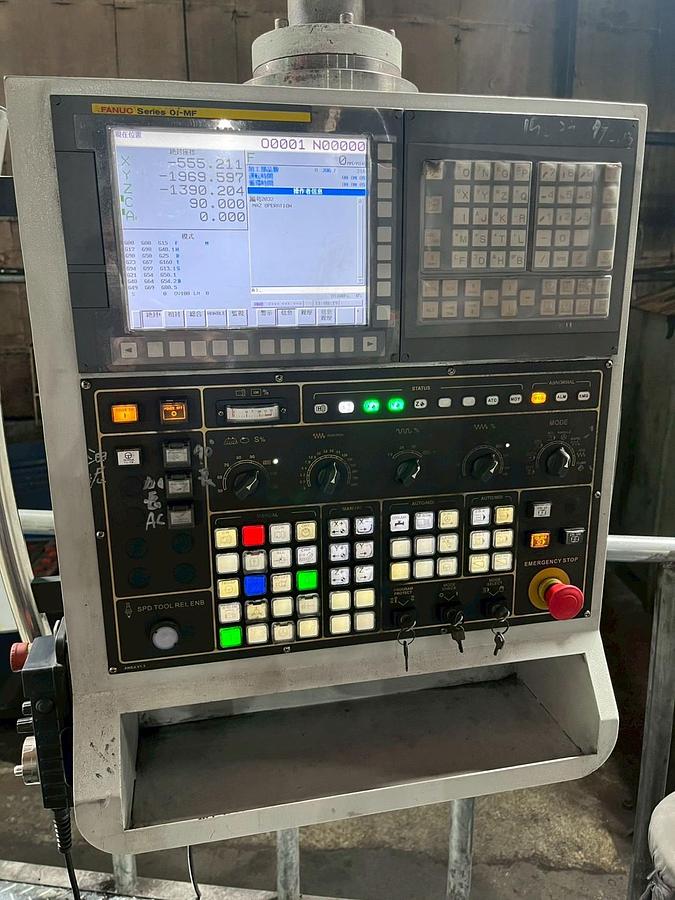

| CNC control | Fanuc OiMF |

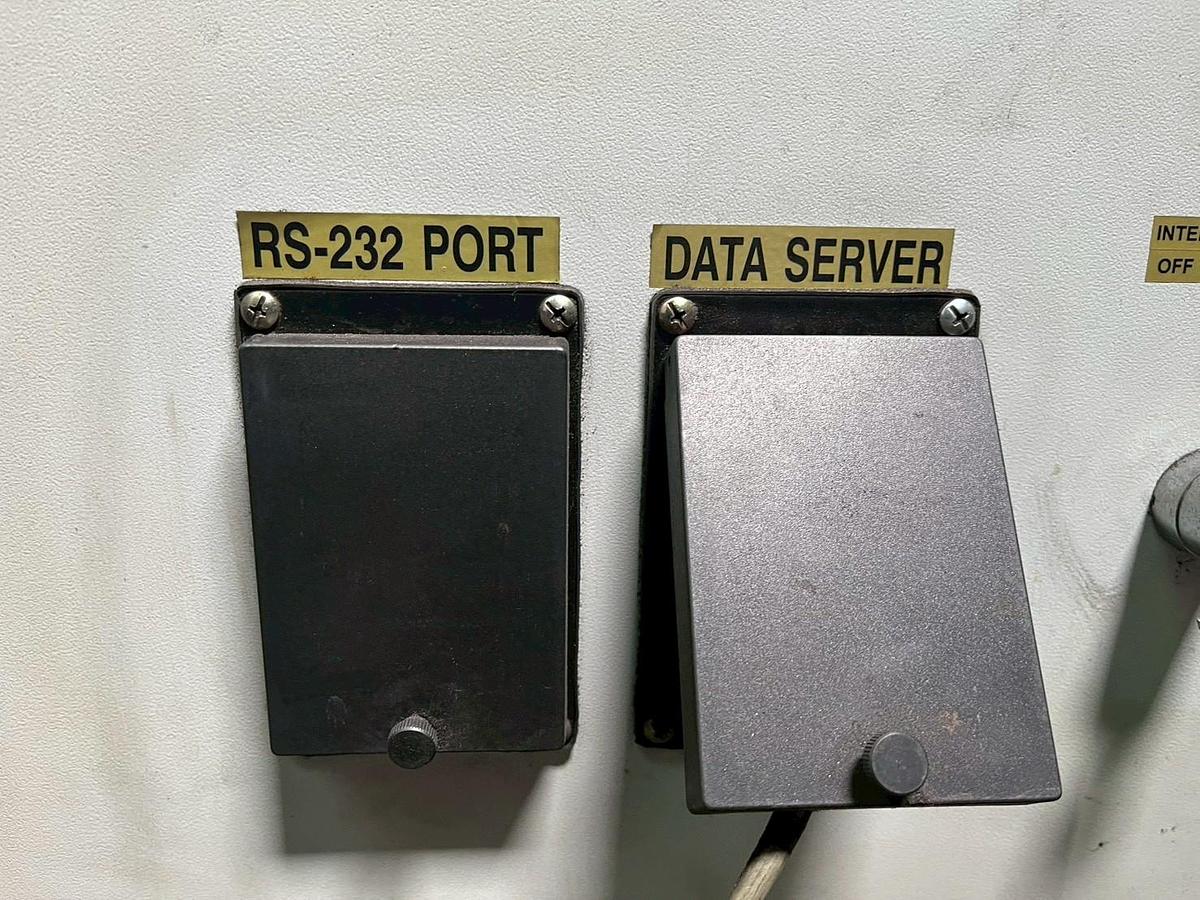

| Communications | Data server / RS232 |
