Kao Ming KMX-318 HIS CNC Bridgemill
Kao Ming KMX-318 HIS CNC Bridgemill
Contact us for price
Location:Canada
or
Call 1-262-284-5611
Description

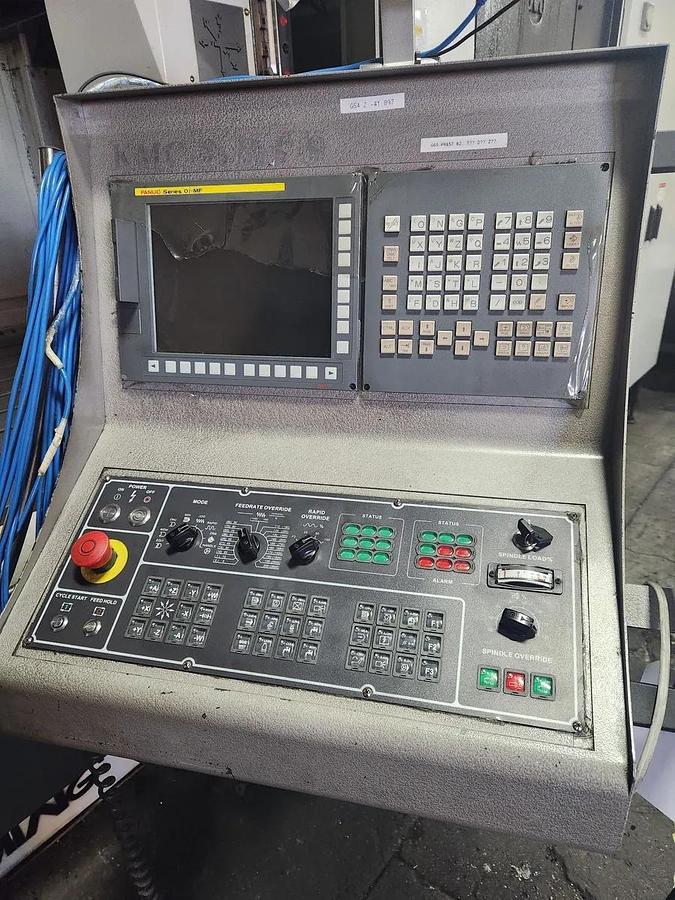

Fanuc Series OI-MF control, Total hours 4,035, New Renishaw Table mounted tool setter, Renishaw
CMM software,Chiller unit, Chip conveyor, Air blast, Excellent working condition. Like new
Specifications
| Manufacturer | Kao Ming |
| Model | KMX-318 HIS |
| Year | 2015 |
| Condition | Used |
| Stock Number | 3695 |
| Table Size | 118" x 64.9" |
| Max. Table Load Capacity | 22,000 Lbs |
| Distance Between Columns | 70.86" |
| Distance From Spindle Nose To Table Top | 5.9" - 39.37" |
| X- Axis Travel | 127.1" |
| Y-Axis Travel | 66.9" |
| Z-Axis Travel | 33.4" |
| Spindle Speed | 10,000 RPM |
| Spindle Taper | CT#50 |
| Spindle Motor | 45 HP |
| Rapid Traverse Rate X, Y & Z | 788/945/591 IPM |
| Cutting Feed Rate | 393 IPM |
| Auto Tool Change Capacity | 60 ATC |
| Max. Tool Diameter | 5.9" |
| Max. Tool Length | 13.7" |
| Max. Tool Weight | 44 Lbs |
| Approx. Machine Weight | 37,400 Lbs |
