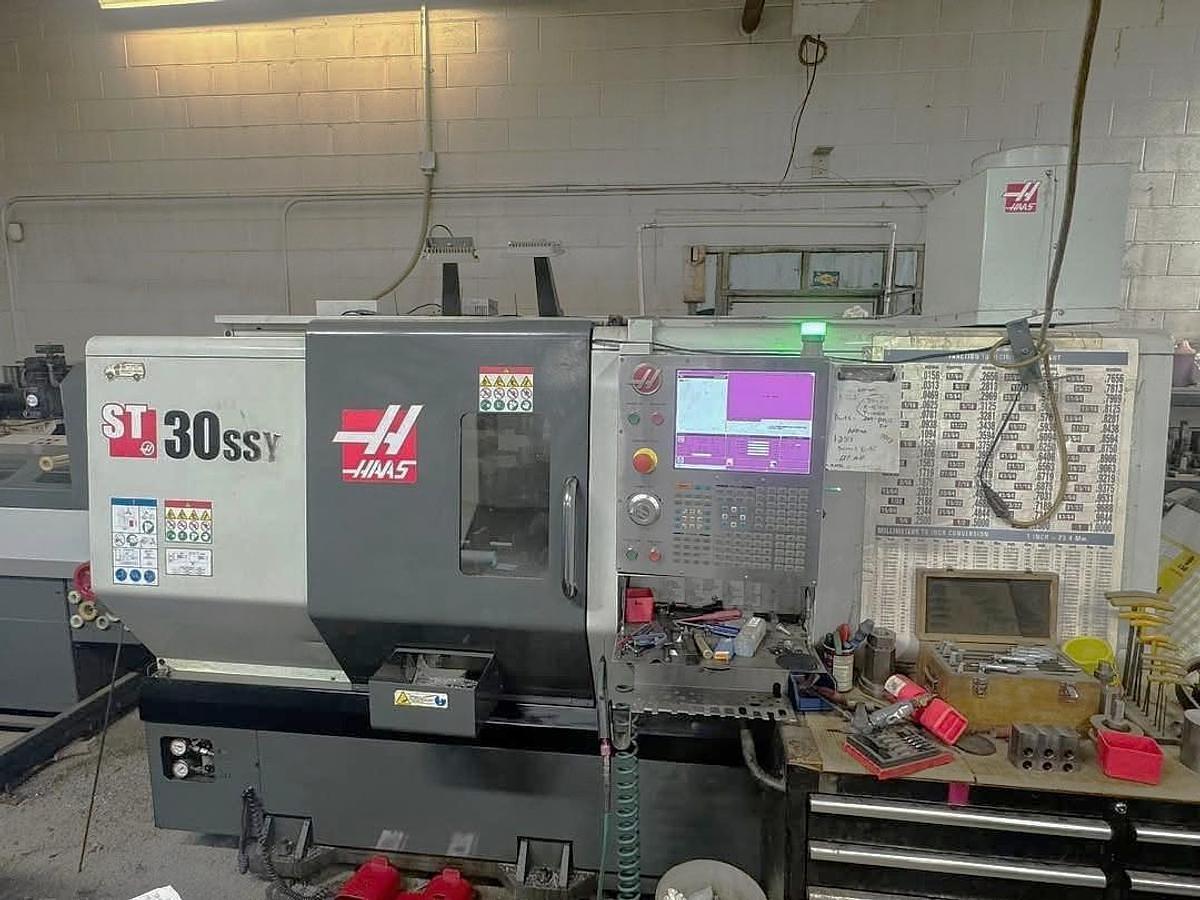

Haas ST-30SSY CNC Lathe W/ Live Tooling

Haas ST-30SSY CNC Lathe W/ Live Tooling

Contact us for price

Location:Belgium, WI

or
Call 1-262-284-5611

Description

Full C Axis Spindle Rotation

Live Milling/Drilling Capability

Y Axis Capability

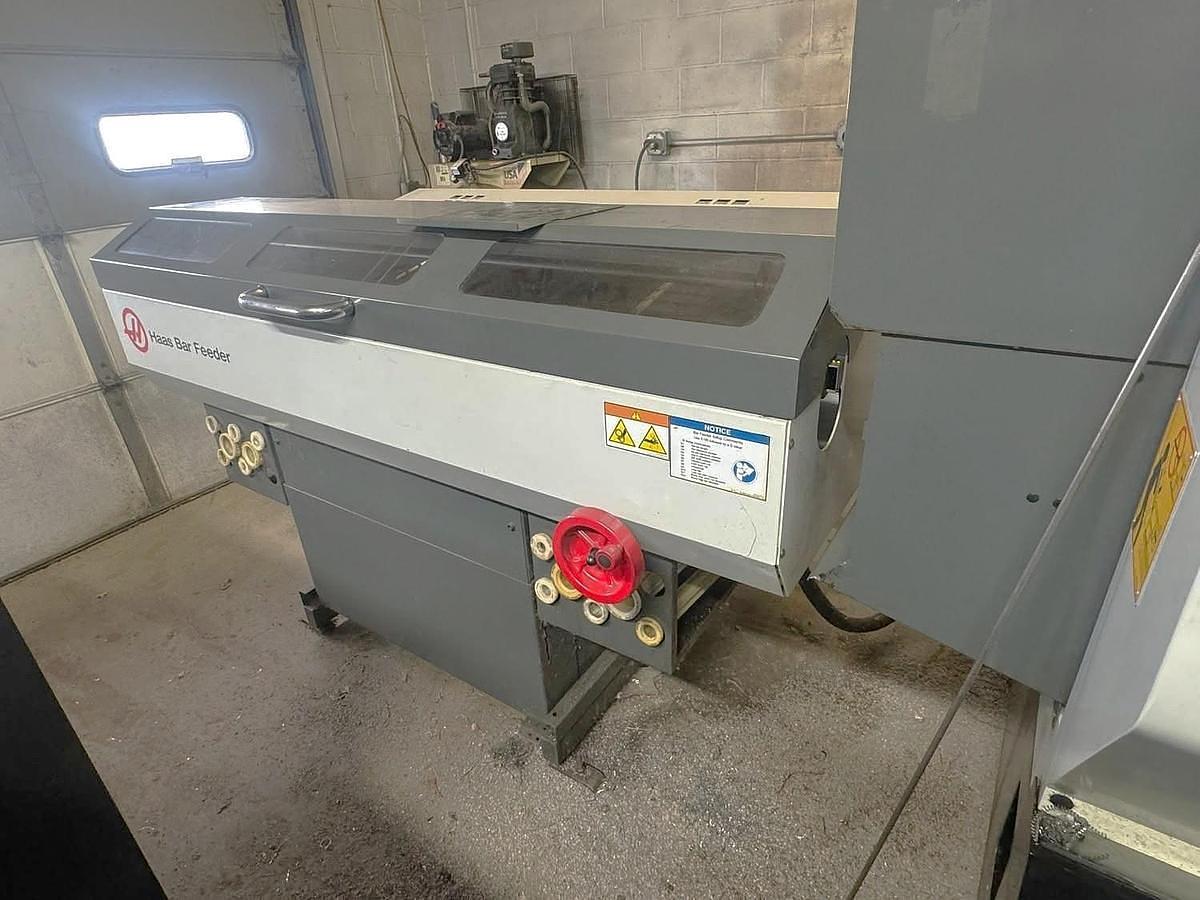

Haas Autoload Barfeeder Unit - 3" Capacity

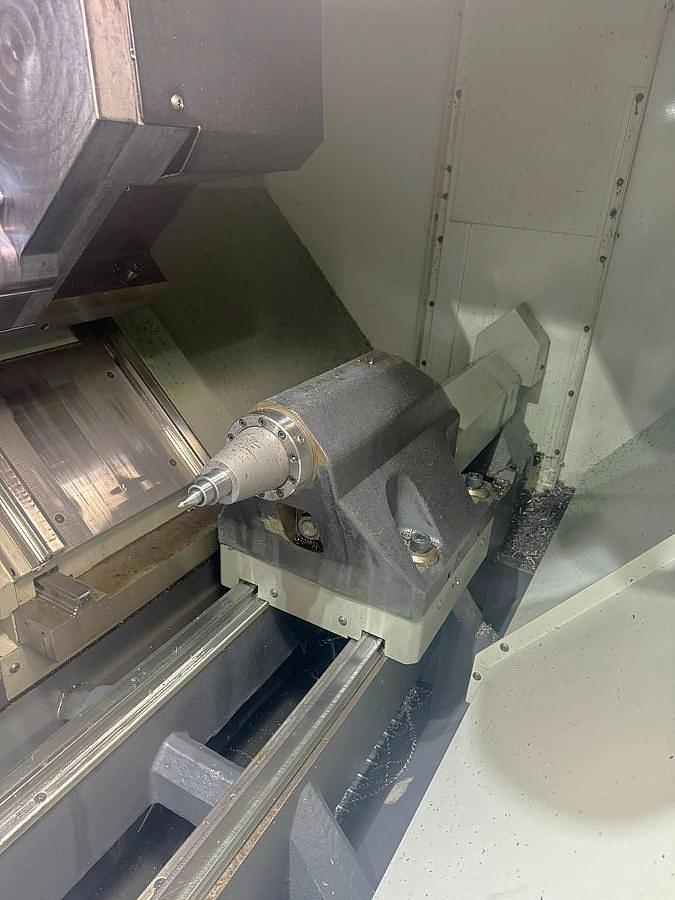

Programmable Tailstock

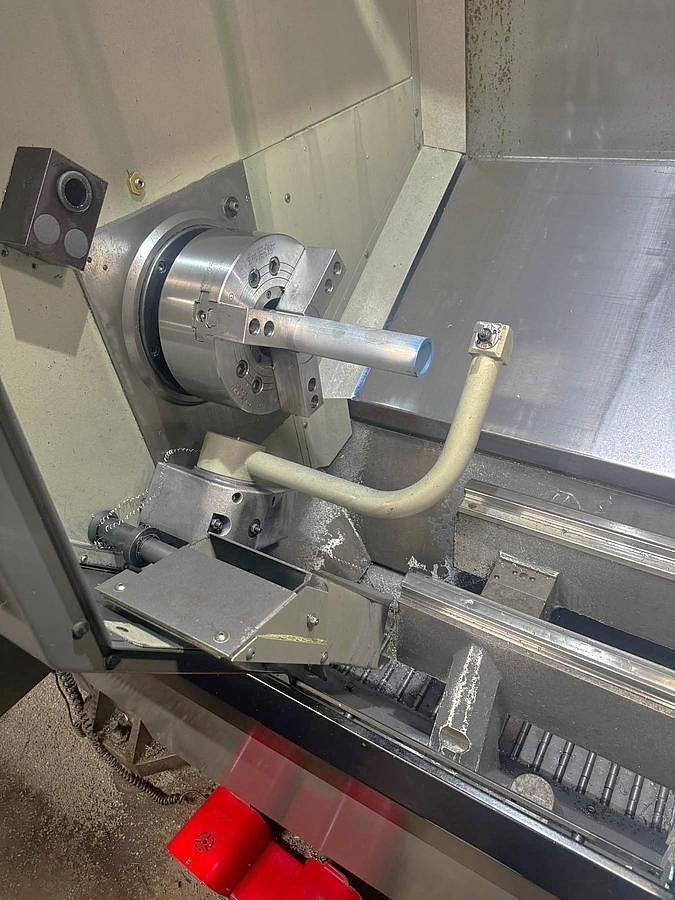

10" 3 Jaw Hydraulic Chuck

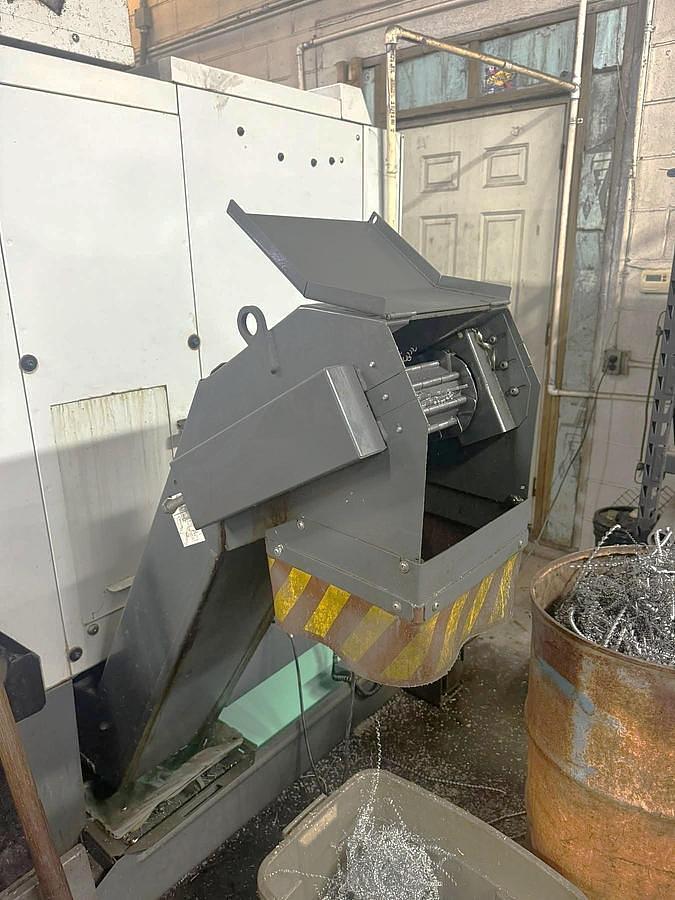

Chip Conveyor

Tool Presetter

Mist Collector

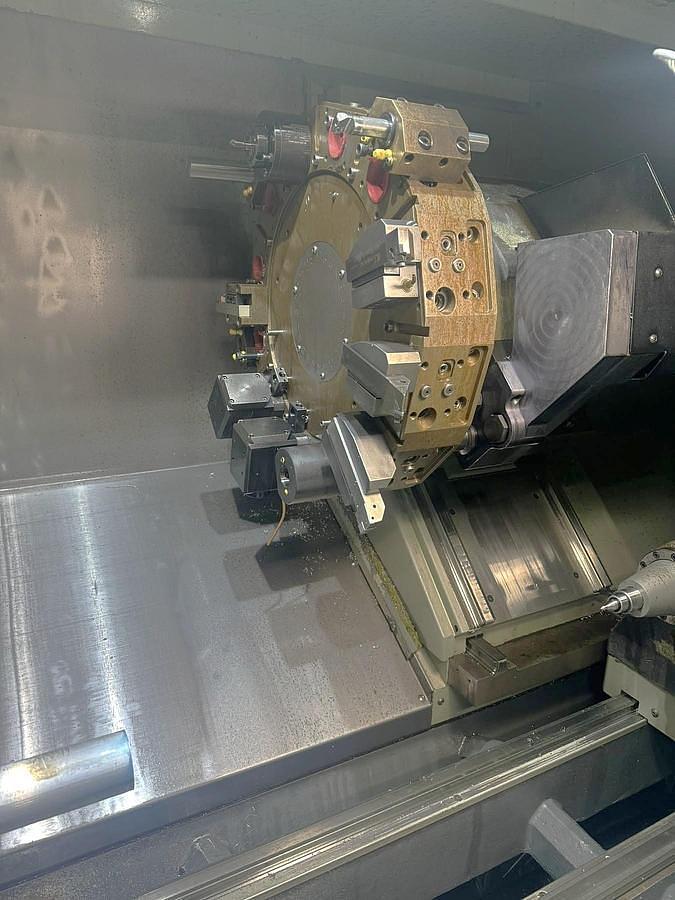

24 Station BOT/VDI Style Turret

Visual Quick Code Programming

Spindle Orientation

Rigid Tapping

Coolant System with Tank & 2 Stage Coolant Pump

Adjustable Chuck Pressure and Tailstock Pressure

High Intensity Lighting

USB Port Interface

RS 232 Port Interface

(3) Live Tool Holders

Assortment of Static Tool Blocks

Spindle Liners



**Cycle Start Hours 3,464**

*Replacement Cost as Equipped $182,150**

Show All

Specifications

ManufacturerHaas
ModelST30SSY
Year2016
ConditionUsed
Stock Number3693
Max Swing31.75"
Max. Turning Diameter16"
Max. Machining Length23"
Max. Bar Capacity3"
Spindle bore3.5"
X- Axis Travel12.5"
Y-Axis Travel+/- 2.0"
C-Axis Spindle Rotation.001 Full C-Axis Rotation
Spindle NoseA2-6
Spindle Speeds30-4,800 RPM
Spindle Motor30 HP
Rotary Tool Speed4,000 RPM
Rotary Tool Motor5 HP
No. Of Tool Positions24 Station BOT/VDI Type
Rapid Traverse Rate X/Y/Z945 IPM/500 IPM/1200 IPM
Tailstock Body Travel20"
Tailstock TaperMT#4
Approx. Machine Dimensions171" x 90" x 83"
Approx. Machine Weight13,540 lbs
