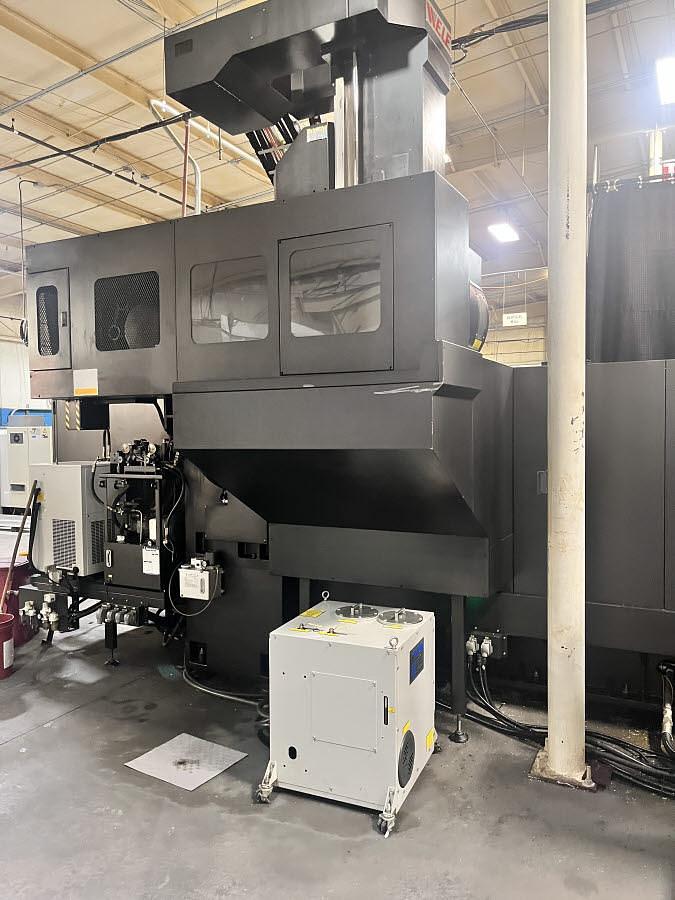

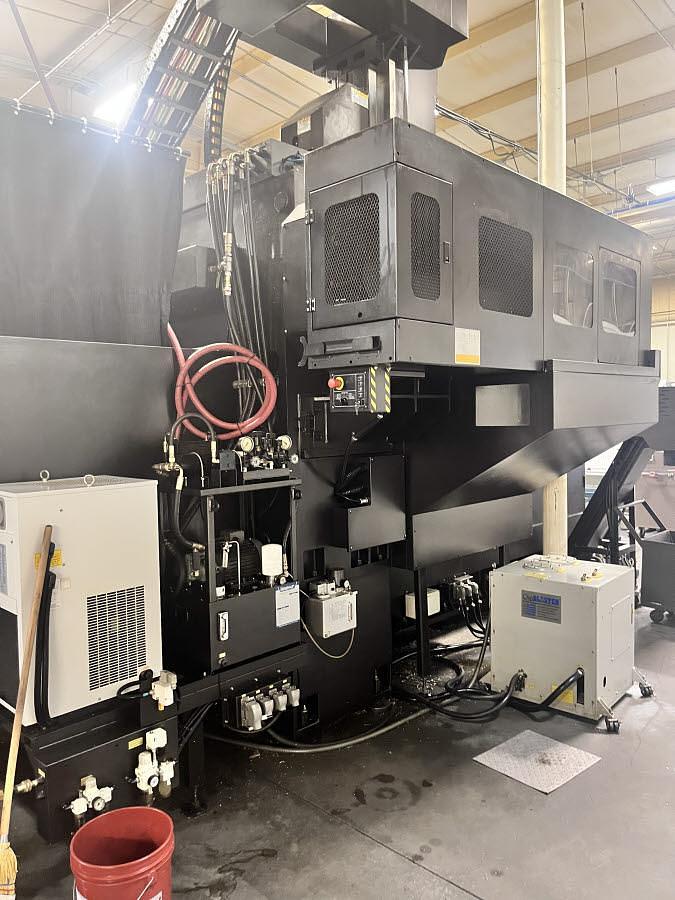

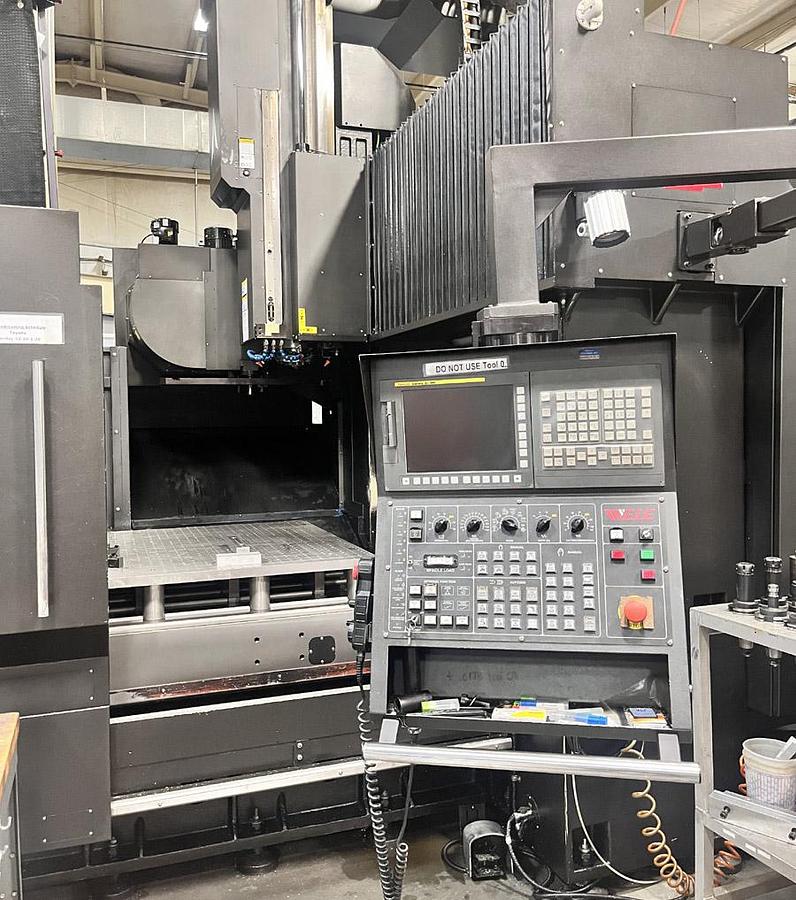

Toyoda VB-215 CNC Double Column Vertical Bridgemill
Toyoda VB-215 CNC Double Column Vertical Bridgemill
Contact us for price
Location:Belgium, WI
or
Call 1-262-284-5611
Description

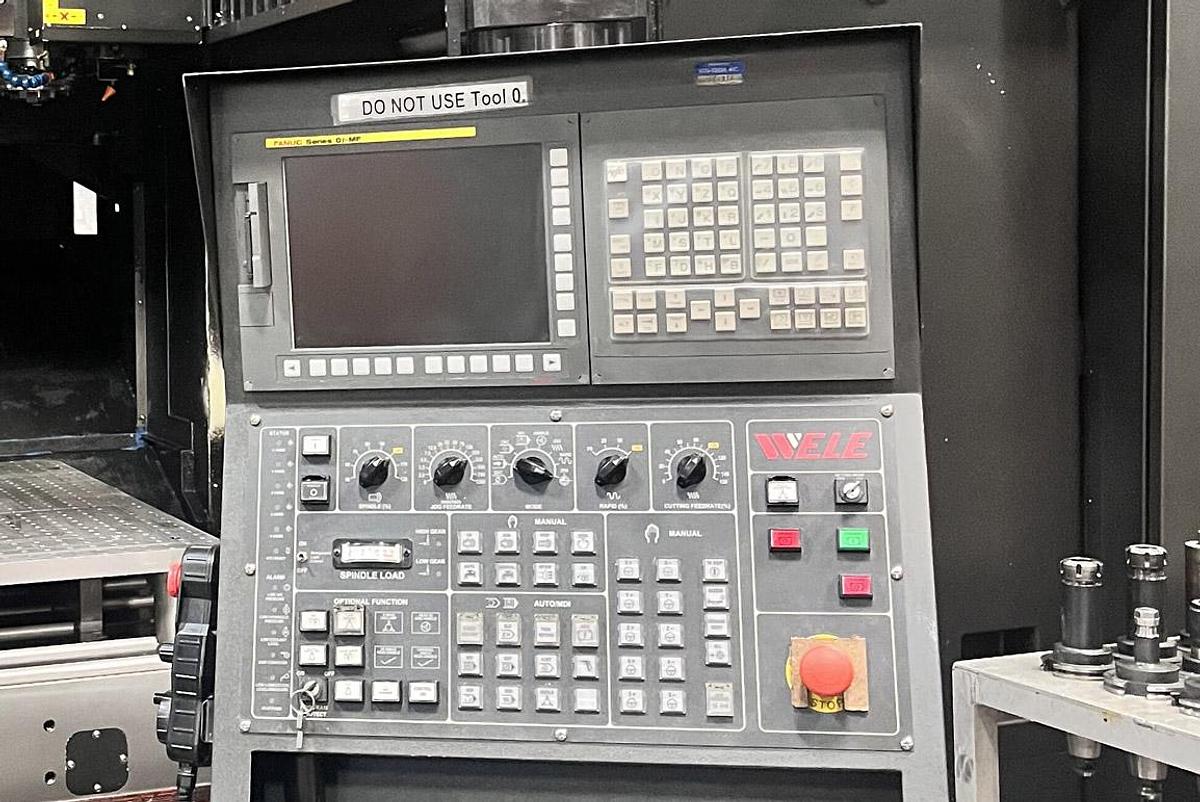

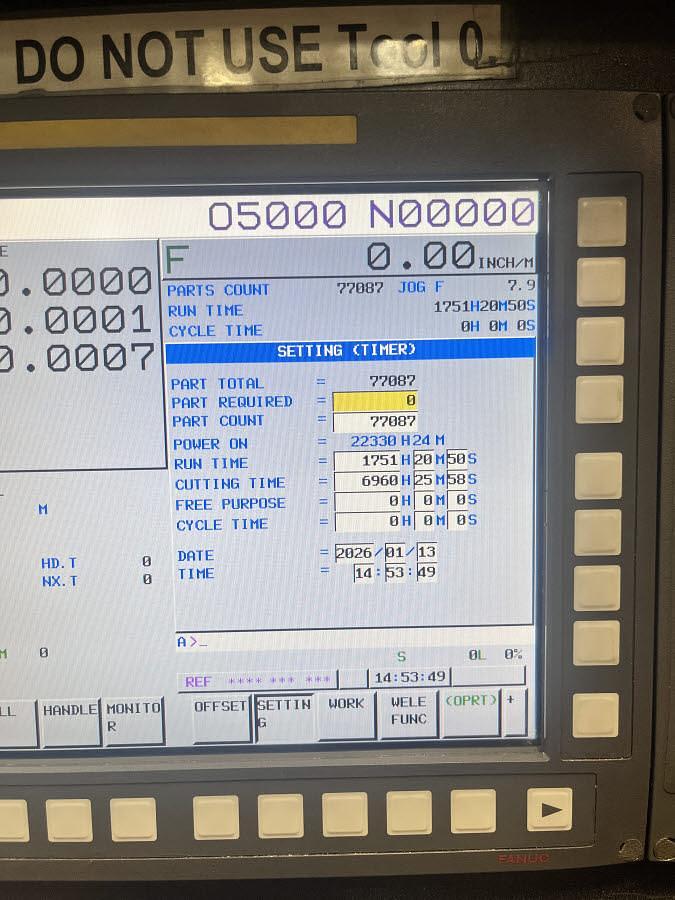

Fanuc Series Oi-M, Renishaw OMP 60 Probe, Chip Blaster Thru Spindle Coolant @ 1000 PSI, 28) Various Sized Solid Holders, 10) ER16 Holders, 19) ER 32 Holders, 4) Tap Drivers, 5) 150 Collet Holders, 1) Boring Head, 29) Misc. Holders/ Arbors.
Specifications
| Manufacturer | Toyoda |
| Model | VB215 |
| Year | 2017 |
| Condition | Used |
| Stock Number | 3691 |

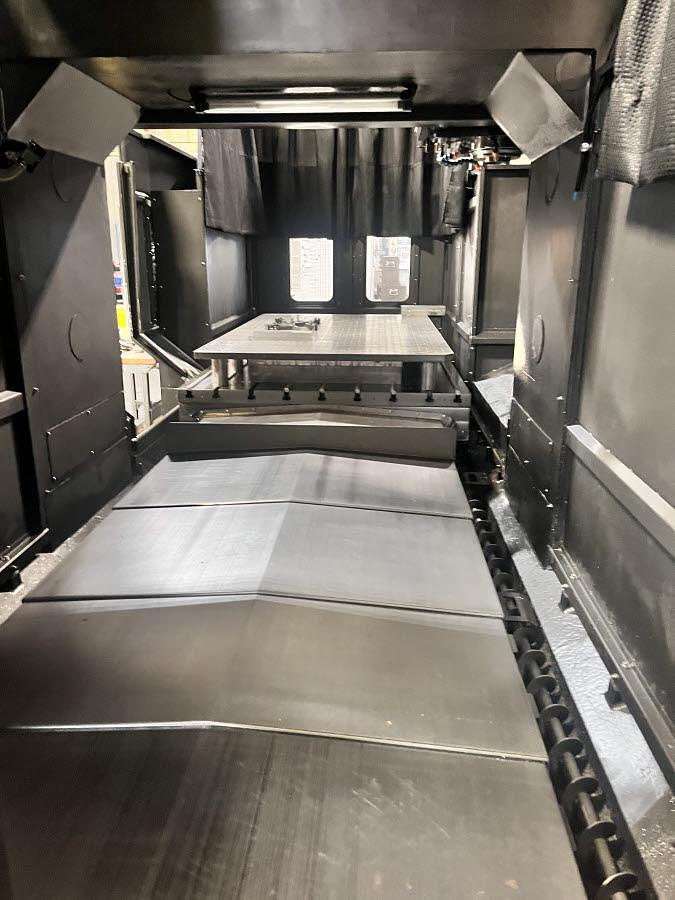

| Table Size | 82.6" x 55.1" |
| X- Axis Travel | 79.5" |
| Y-Axis Travel | 59" |
| Z-Axis Travel | 31.5" |
| Distance From Spindle Nose To Table Top | 7.9" - 39.4" |
| Max. Table Load Capacity | 17,600 lbs |
| Spindle Speed | 6,000 RPM (2 Speed Gear Box) |
| Spindle Taper | Big Plus CAT #50 |
| Spindle Motor | 30/35 HP |
| Max. Cutting Feedrate | 394 IPM |
| Rapid Feedrate X, Y & Z | 945/945-590 IPM |
| Auto Tool Change Capacity | 32 ATC |
| Max Tool Weight | 44.1 lbs |
| Floor Space | 317.2" x 179.1" x 162.5" |
| Approx. Machine Weight | 44,092 lbs |
