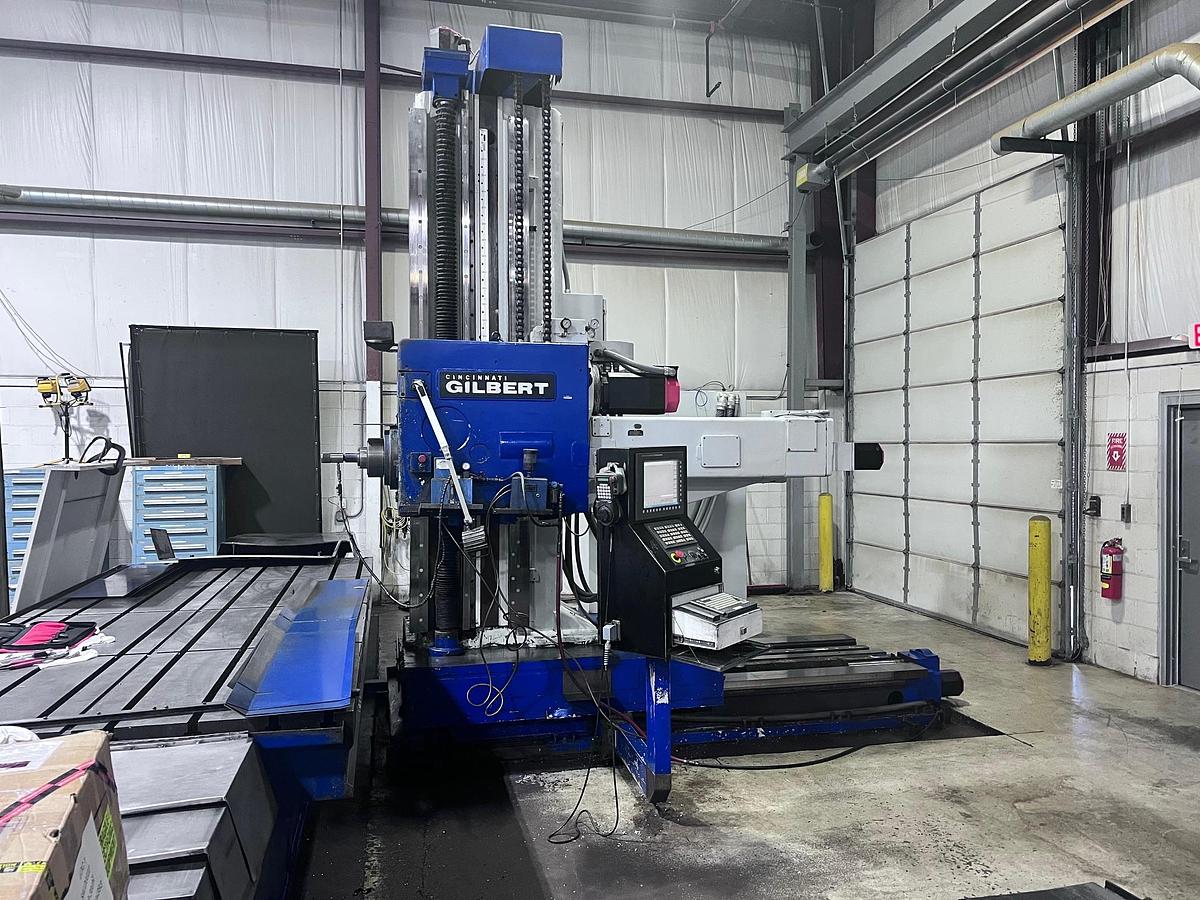

Cincinnati Gilbert 14448

Cincinnati Gilbert 14448
Contact us for price
Location:Belgium, WI
or
Call 1-262-284-5611
Description

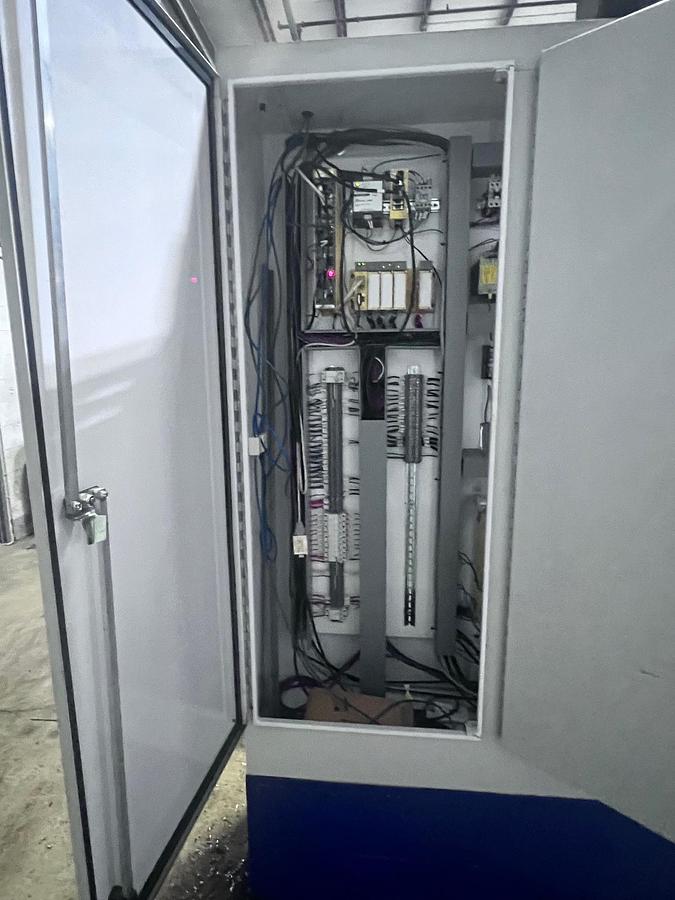

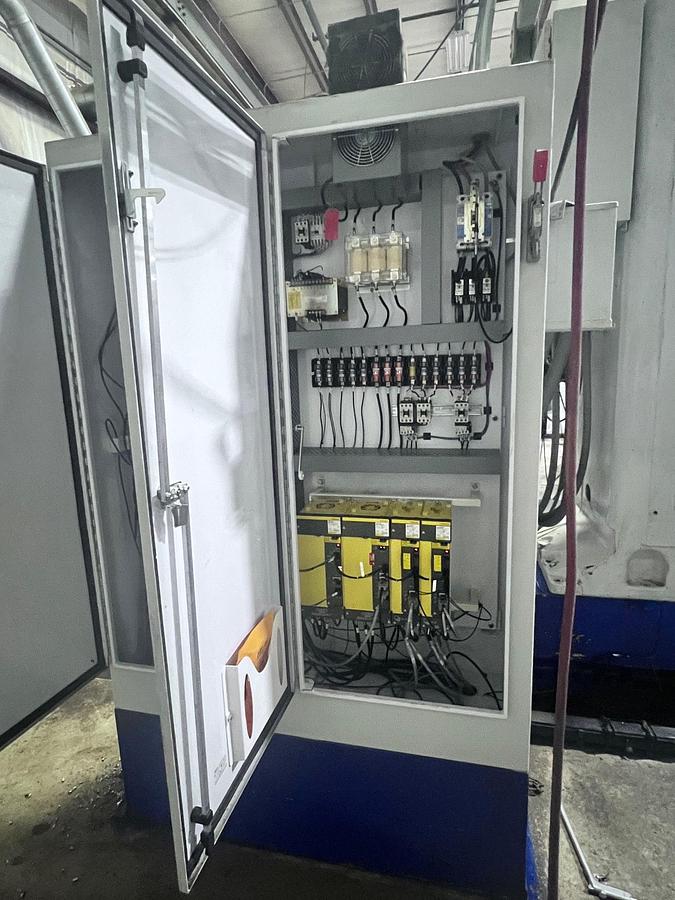

This machine is underpower in a die shop used for general die blocks and as a gun drill. This machine was rebuilt by reputable company which replaced all wiring, electrical cabinet, motors, drives, servos to each axis. The machine headstock was gone through along with the ballscrews being reconditioned. They did some scrapping to assure they could use it as a gun drill as well as machining die blocks. They have all the documentation for the machine and its currently installed underpower.
Specifications
| Manufacturer | Cincinnati Gilbert |
| Model | 14448 |
| Condition | Used |
| Stock Number | 3688 |
| Spindle diameter | 5" |
| Spindle motor | 30HP |
| SPINDLE SPEEDS | 1200 RPM |
| Spindle ranges | 3 |

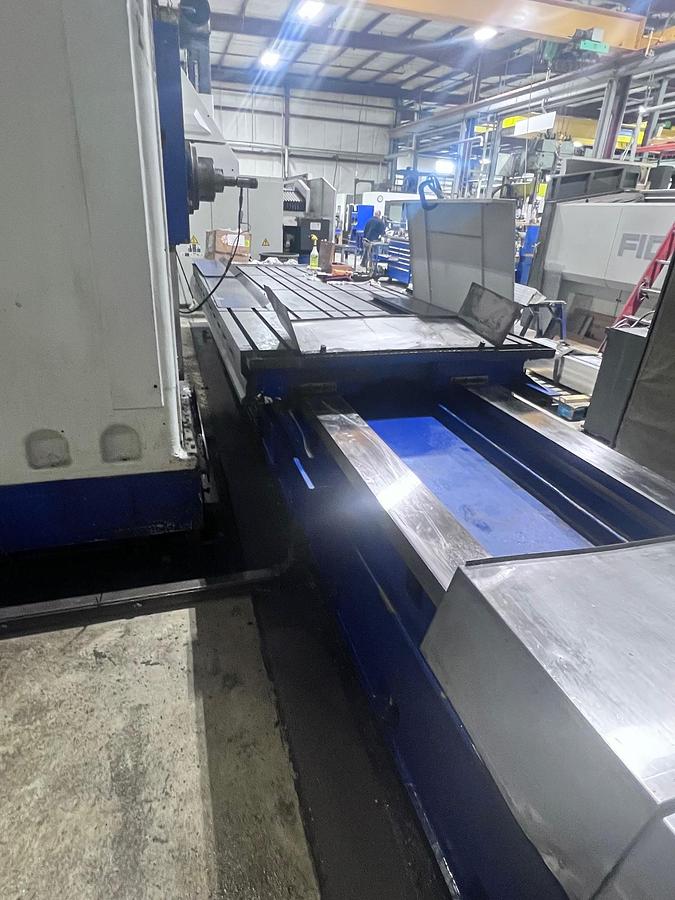

| Table size | 144" x 48" |
| X axis travel | 144" |
| Y axis travel (vertical) | 74" |
| Z axis travel (Spindle) | 48" |
| W axis travel (Column feed) | 60" |
| Table capacity must confirm | 10 Ton |
| CNC Control | Fanuc 32i |
| Scales | Heidenhain |
| Portable Manual pulse generator | MPG |
| Spindle taper | #50 |
| Spindle draw bar | Power |
