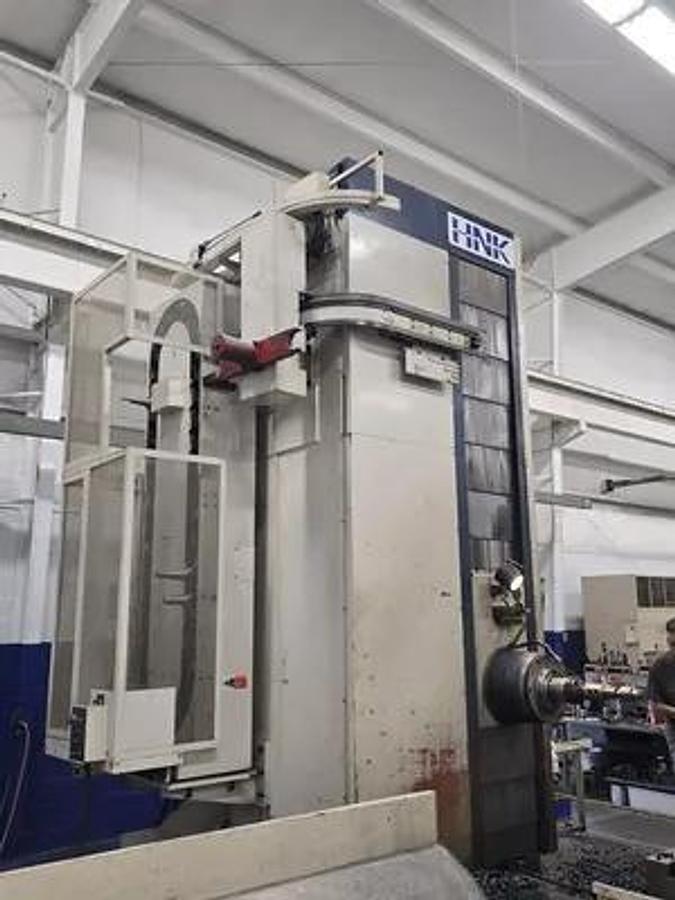

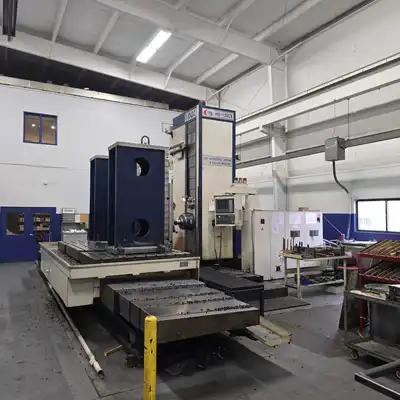

HNK HB-130CX CNC Horizontal Boring Mill
No longer available
HNK HB-130CX CNC Horizontal Boring Mill
Location:Michigan
Description

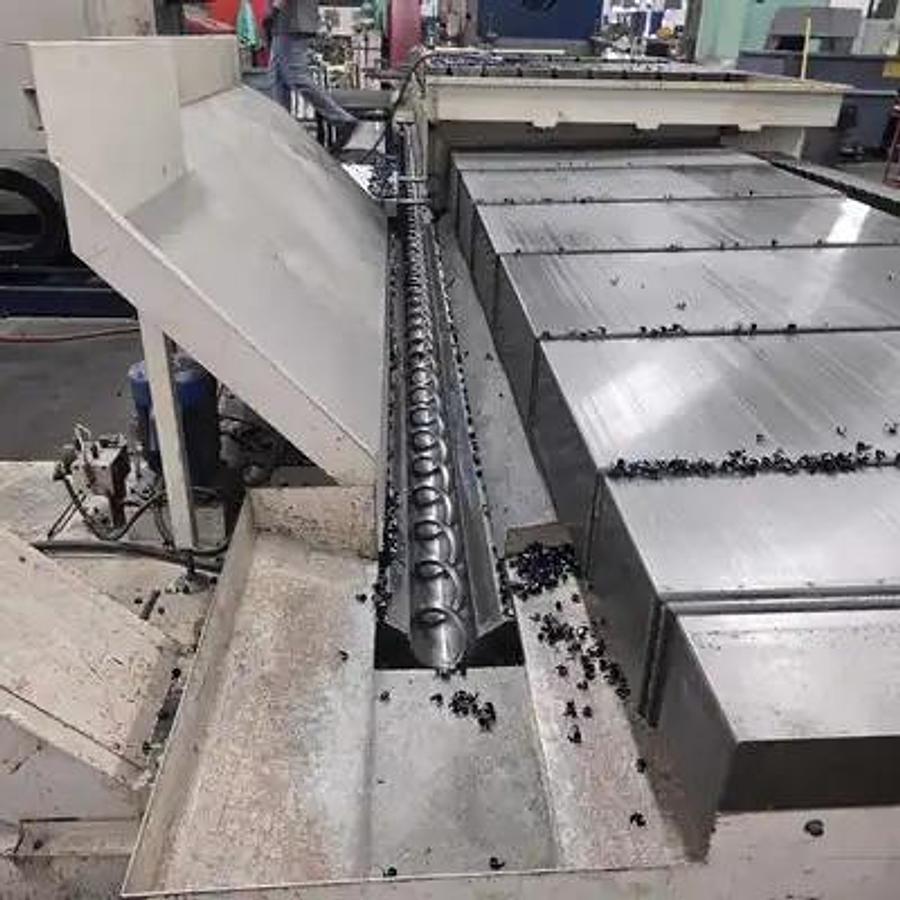

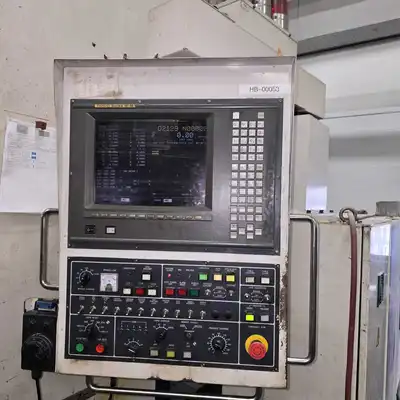

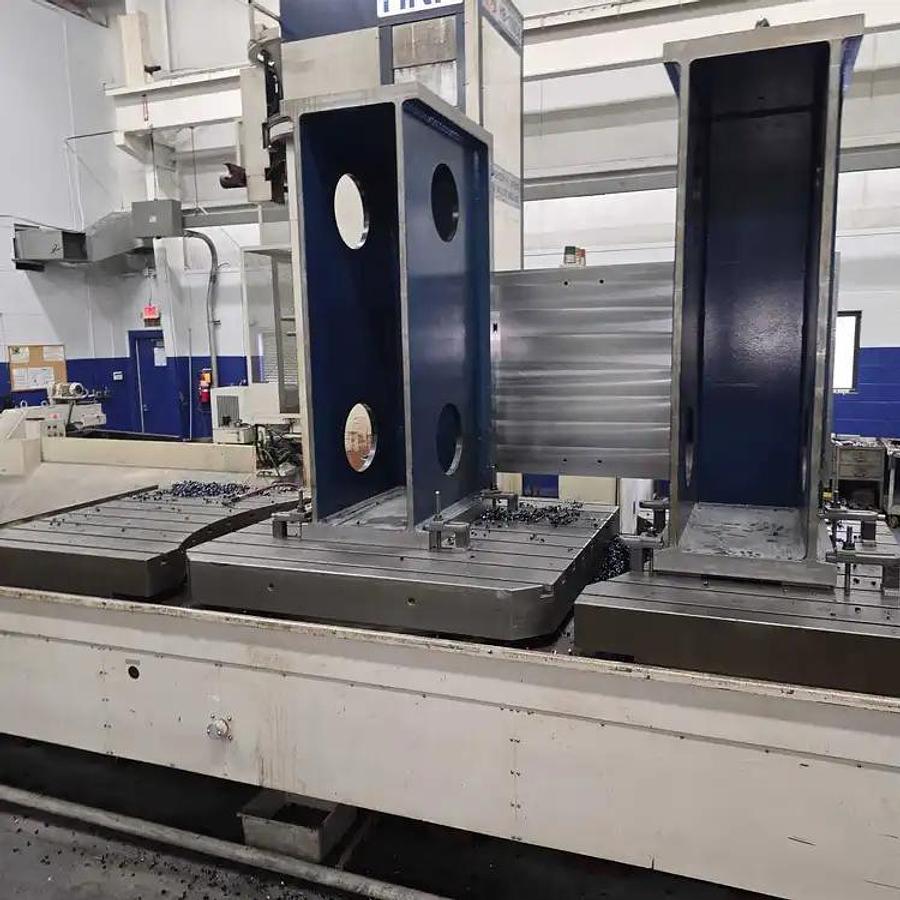

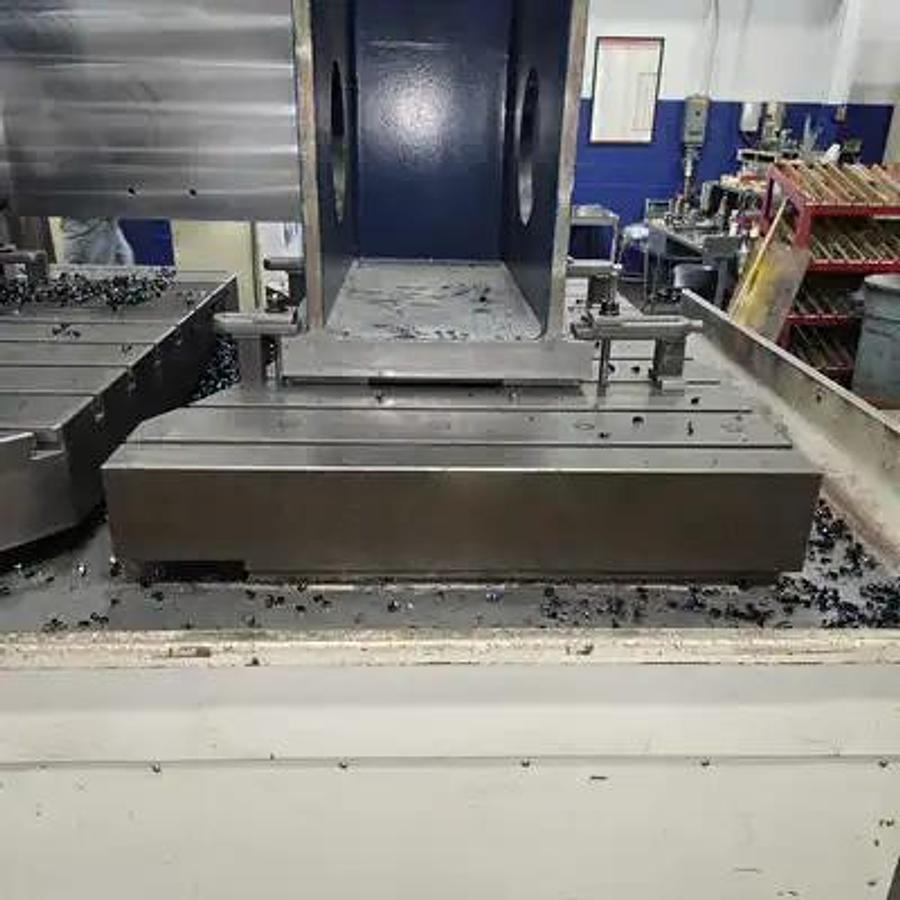

Fanuc 16M, Spindle oil Chiller, Chip Conveyor/Coolant System, hydraulic unit, (2) Two Blue angle plates, Table plates used as shims for equaling table height, any retention studs, spindle nose attachments for tooling, books/manuals available, leveling pucks, transformer
Specifications
| Manufacturer | HNK |
| Model | HB-130CX |
| Year | 2000 |
| Condition | Used |
| Serial Number | 00053 |
| Stock Number | 3685 |
| Spindle Size | 5.1" |
| X-Axis Travel | 157" |
| Y-Axis Travel | 90" |
| Z-Axis Travel | 51" |
| Spindle Quill Travel | 27.5" |
| Table Size | 157" x 63" |

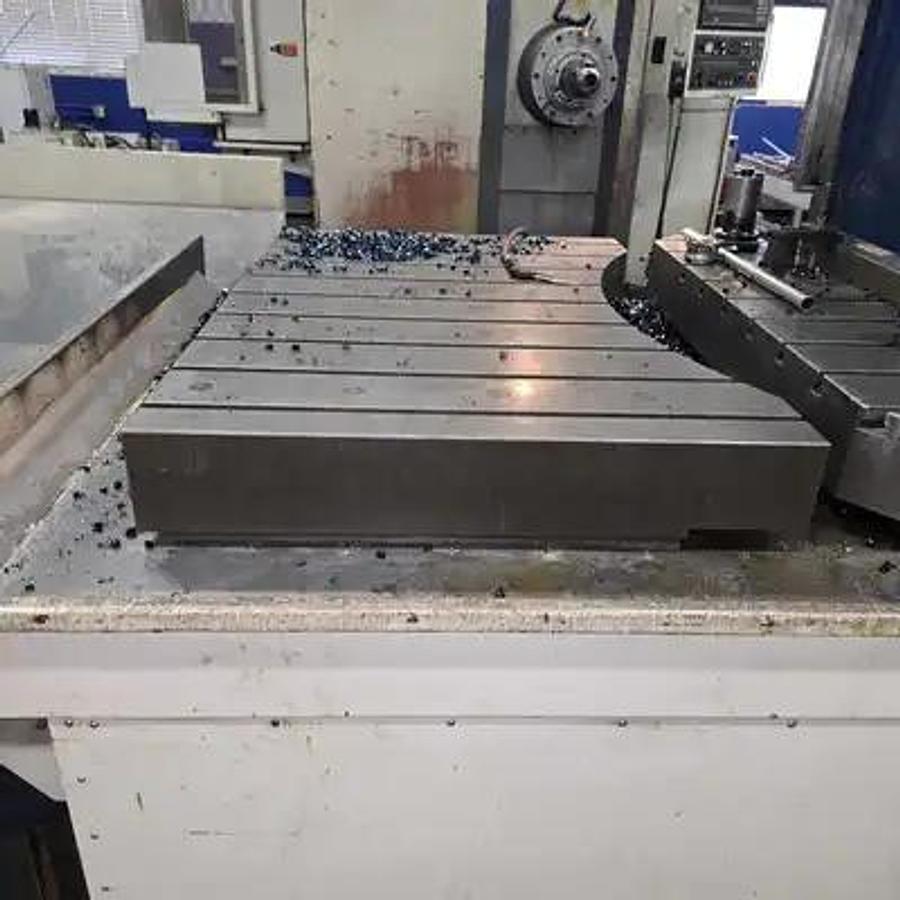

| Rotary Table Dimensions | 63" x 63" |
| Spindle Motor | 35 HP |
| Spindle Speeds | 5-2,500 RPM (2 Gear Ranges) |
| Spindle Taper | ISO #50 |
| Max. Table Load Capacity | 30,000 Lbs / Rotary 22,000 lbs capacity alone |
| Rotary Index | .001 Degree With 90 Degree Shot Pins |

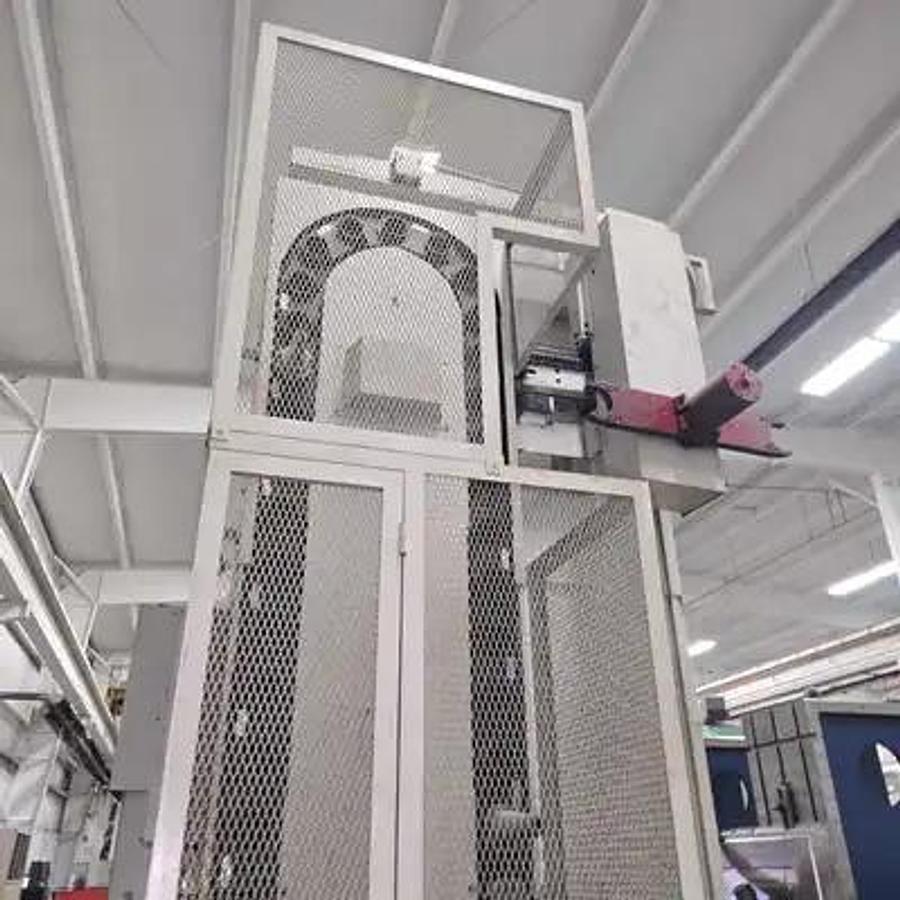

| ATC Capcity | 40 ATC |
| Max. Tool Weight | 55 lbs |
| Max. Tool Length | 16" |
| Distance From Spindle Nose To Center Of Table | 30"- 80" |
| Approx. Machine Dimensions | 397" x 291" x 193" Tall |
| Approx. Machine Weight | 108,000 lbs |
