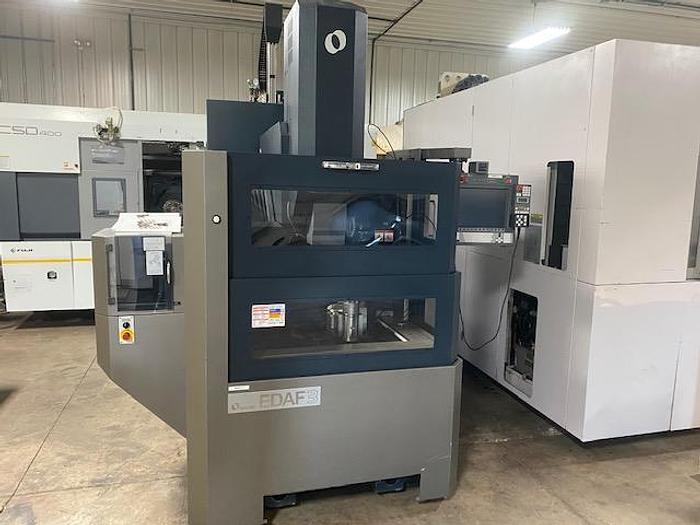

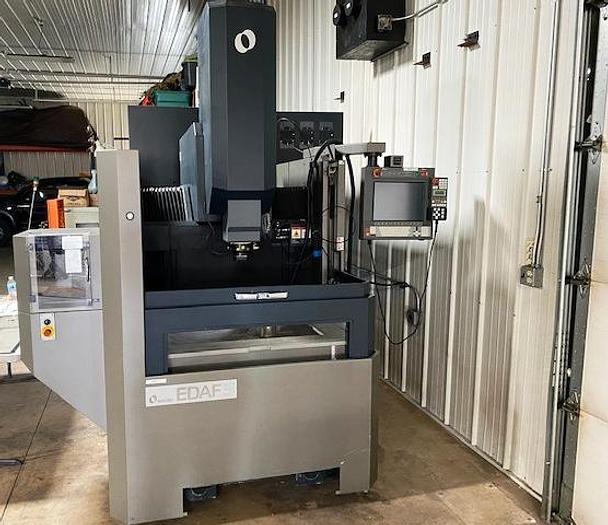

2014 Makino EDAF3 CNC Ram Type Die Sinker EDM
No longer available
2014 Makino EDAF3 CNC Ram Type Die Sinker EDM
Location:Belgium, WI
Description
Equipped With:

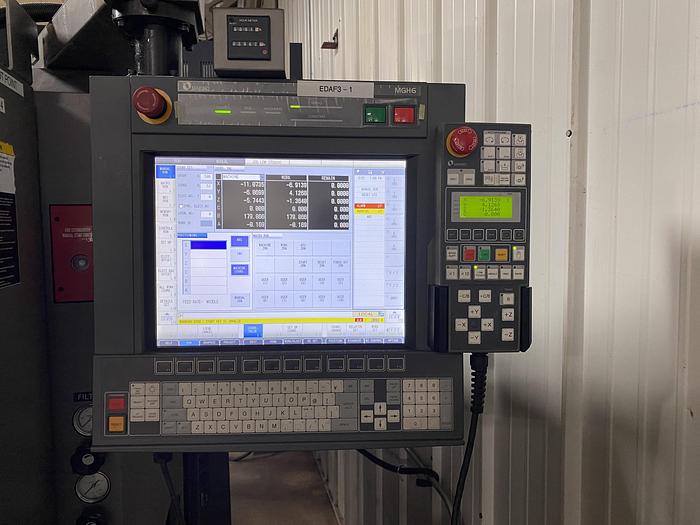

MGH6 CNC Pendant Control
C Axis

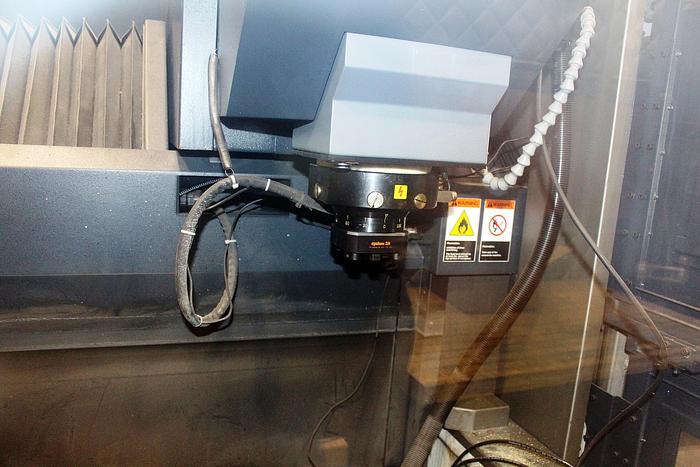

3R Chuck accepts 3R or Erowa Tooling

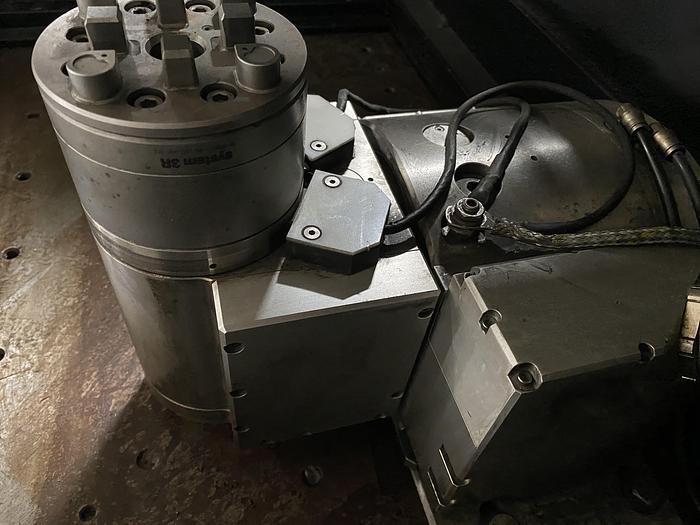

4" Jauch and Schmider Submersible 2-Axis Rotary Indexing Table
1,959 Power on Hours
Fire Suppressor
Fire Extingisher
Portable Operation MPG
Specifications
| Manufacturer | Makino |
| Model | EDAF3 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 3507 |
| Work Tank Size | 33.5" x 25.6" x 15.8" |
| Table Size | 27.5" x 19.7" |
| Max. Part Weight | 1,760 lbs |
| X-Axis Travel | 17.7" |
| Y-Axis Travel | 13.8" |
| Z-Axis Travel | 13.8" |
| C-Axis Rotation | 360,000 Degree |
| Max. Weight Of Electrode | 165 lbs |
| Machine Dimensions | 103" x 59" x 102" |
| Machine Weight | 10,582 lbs |
