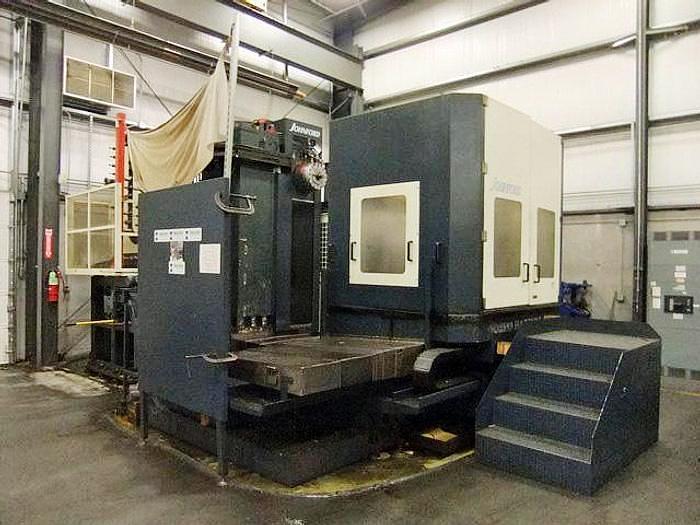

Johnford BMC-110 CNC Horizontal Boring Mill
No longer available
Johnford BMC-110 CNC Horizontal Boring Mill
Location:Pennsylvania
Description
Equipped With:

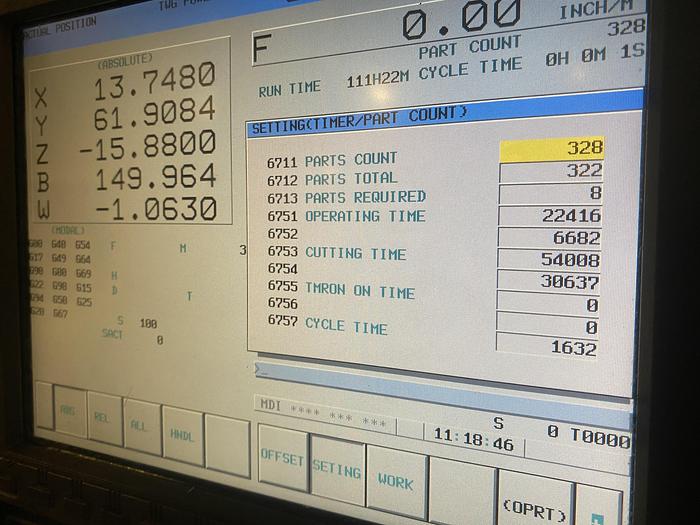

Fanuc 21i-MB
Full B-Axis Rotary Table
Rigid Tap
Coolant Tank
Lift Up Chip Conveyor
Table Guarding
Chip Auger
Specifications
| Manufacturer | Johnford |
| Model | BMC-110 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 3504 |
| X-Axis Travel | 79" |
| Y-Axis Travel | 71" |
| Z-Axis Travel | 63" |
| W-Axis Travel | 21.7" |
| Spindle Bar | 4.33" |
| Table Size | 55" x 63" |
| Max. Table Load Capacity | 26,400 lbs |
| Spindle Nose To Table Top | 0 to 70.9" |
| Spindle Motor | 35 HP |
| Spindle Speed | 3,000 RPM |
| Spindle Taper | CAT#50 |

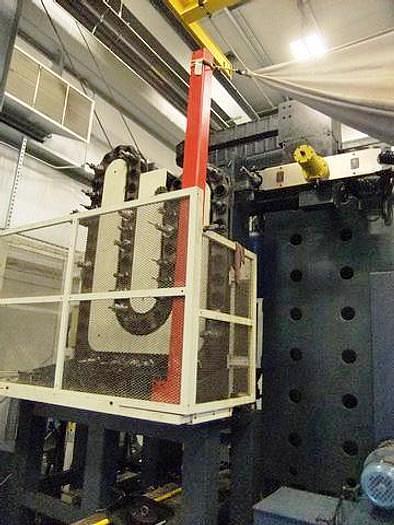

| ATC | 60 ATC |
