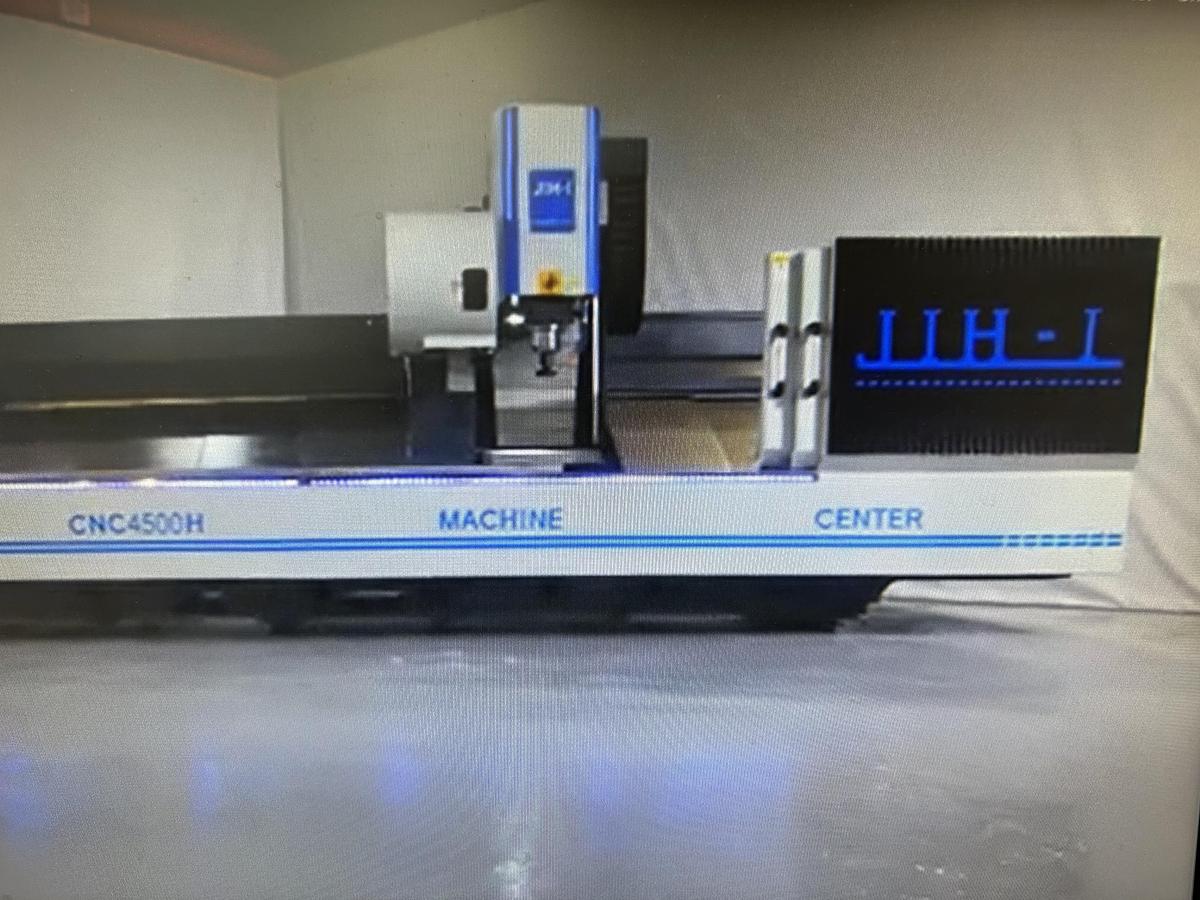

2025 Machinery Works, Inc. / JIH-I VMC120

We are pleased to offer you one new cnc traveling column cnc vertical machining center for your project.

Included:

Installation of each machine with training

Fanuc Oimf CNC Control with manual pulse generator

Coolant with tank

Semi enclosure to keep coolant contained

1. The base is fabricated from heavy gauge steel plates and scientifically reinforced, allowing for solid support for the column and work pieces.

2. Traveling column design features increased machining efficiency and accuracy.

3. The oversized box-type column is manufactured from high quality cast iron.

4. Large diameter ball screw on x-axis is firmly supported to eliminate self-deflection problems.

5. 3 axis adopt 45 mm P class high precision linear guide ways; X axis features 8 blocks, Y and Z axis are 6 blocks.

6. Automatic lubricator delivers lubrication oil to all linear ways and ball screws.

7. Y-axis & X-axis ball screws are direct coupled with drive motors, featuring no backlash, high transmission efficiency and high accuracy.

Traveling Column

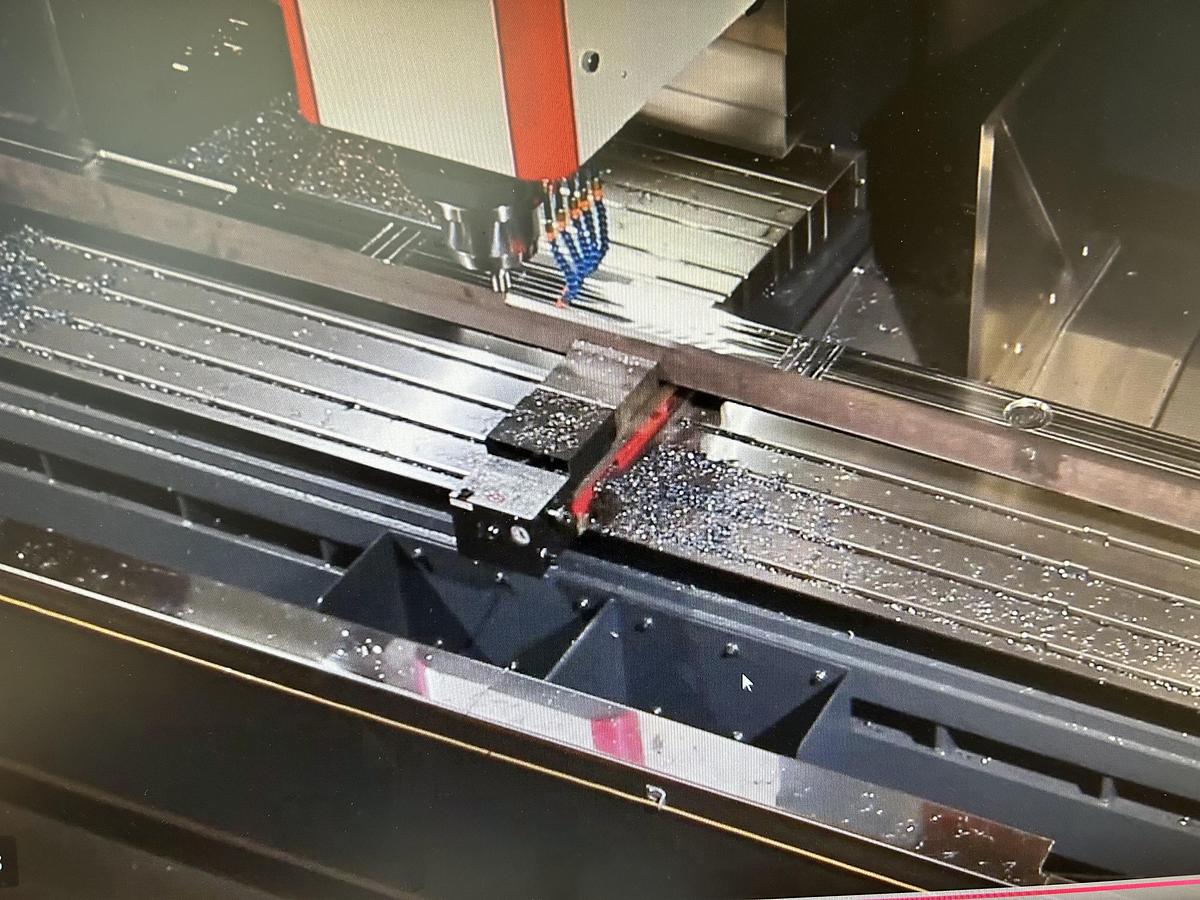

• The machine is designed with a travelling column and a fixed table.

• With the travelling column configuration,work piece weight will not affect the transmission system. As a result,consistent machining accuracy can be achieved.

• Each linear way on the Y-axis is fitted with 3 sliding blocks to assure ultra-high stability when the Y-axis is moving.

Price for this machine retail is $435,000. - 5% for dealer discount. This includes the packaging, transport to USA port with all duties and tariffs included. Customer pays shipping from USA Port to there facility rigging into place and we take care of the rest.
