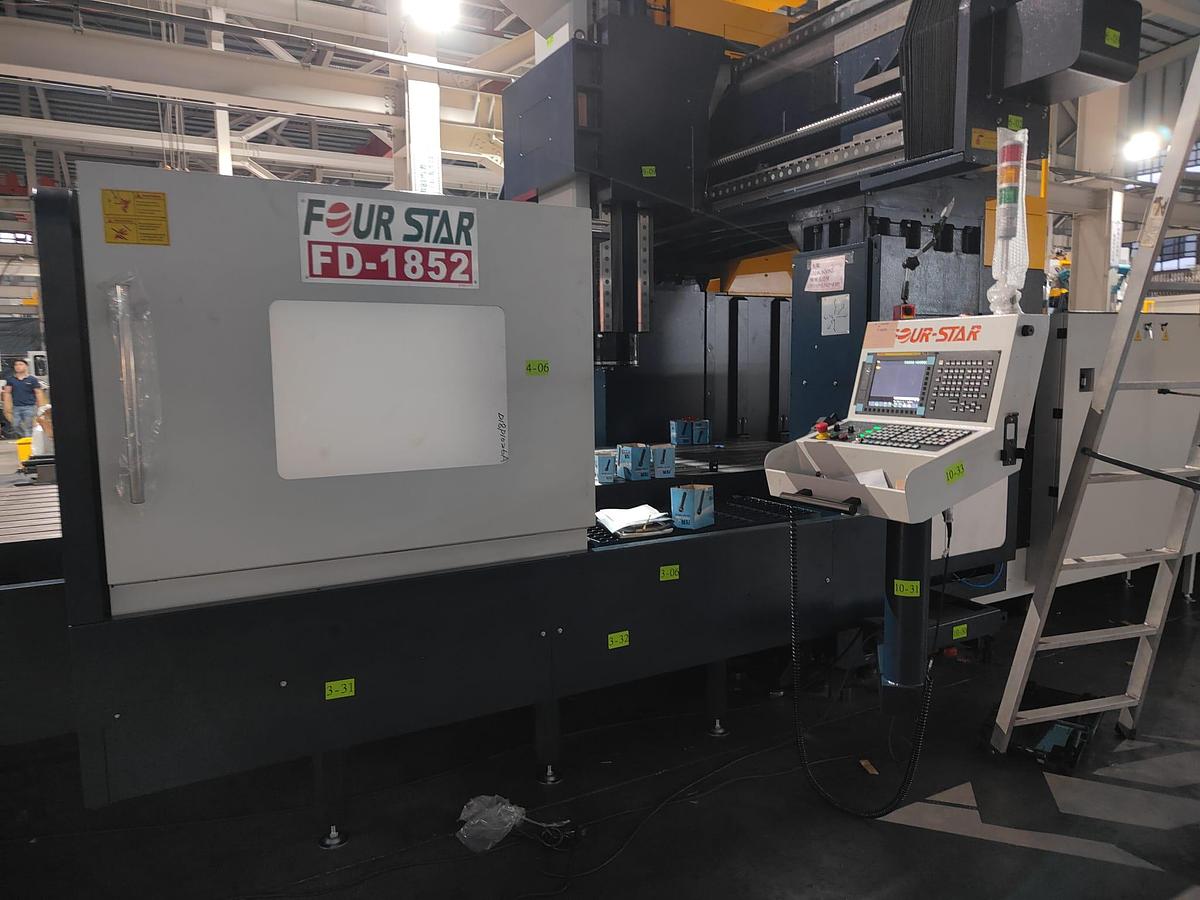

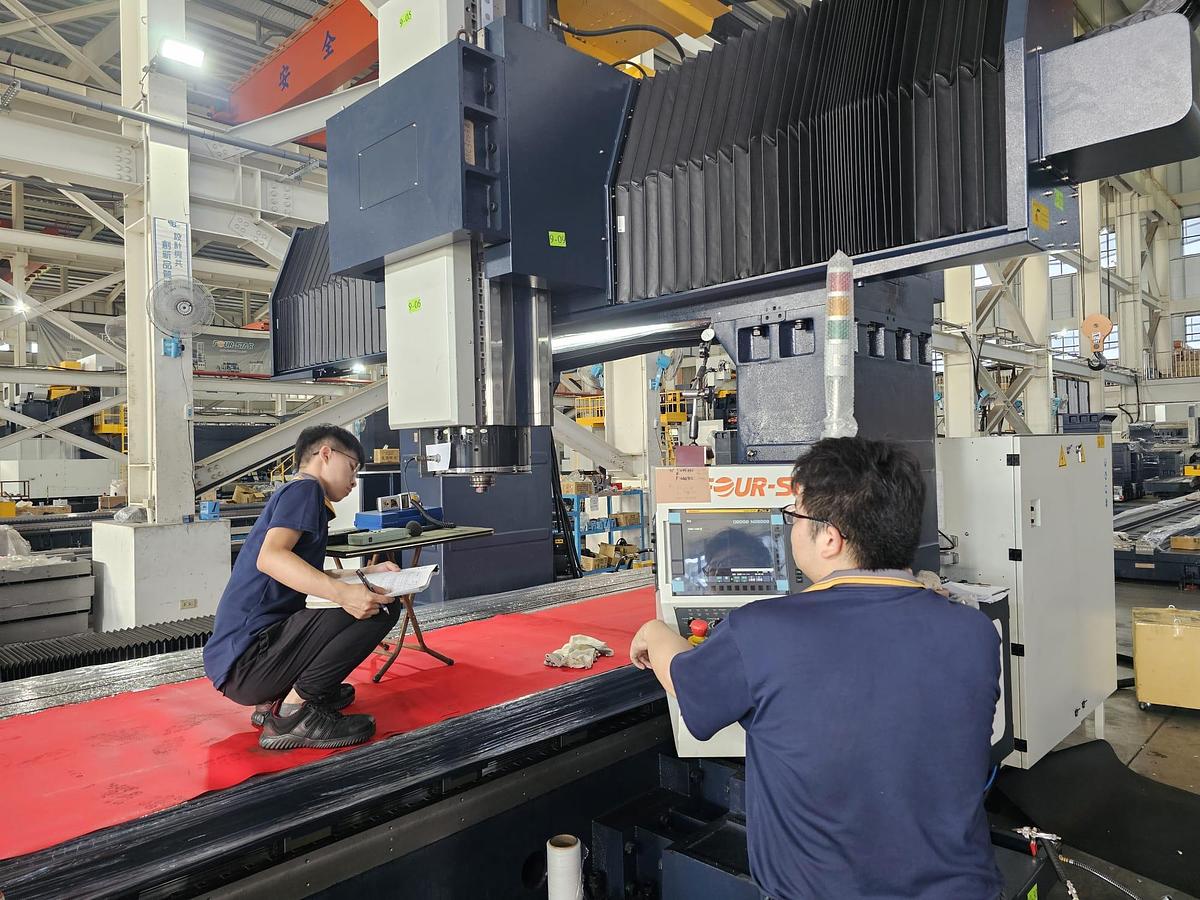

2025 Four Star FD1852
2025 Four Star FD1852
Contact us for price
Location:Belgium, WI
or
Call 1-262-284-5611
Description
This is a new machine packaged and ready for delivery due to order cancellation. This is a long term high quality builder specializing in only bridge and gantry mills.
Specifications
| Manufacturer | Four Star |
| Model | FD1852 |
| Year | 2025 |
| Condition | Used |
| Stock Number | 3678 |
| Table Size | 197"x59.1" |
| Table Load Capacity | 20 ton |
| X Axis travel | 204" |
| Y Axis travel | 70.92 (plus 25.8" for side milling) |
| Z Axis travel | 31.52" |
| Distance Between Columns | 70.92" |
| Spindle Nose To Table Top | 15.87" - 47.39" |
| Spindle Taper | BBT #50 |
| Spindle Motor | 22/26 kw (29/34 hp) |
| Spindle Speed | 6000 rpm |
| Spindle gear box | 2-speed |
| Ram size | 17.73" x 17.73" |

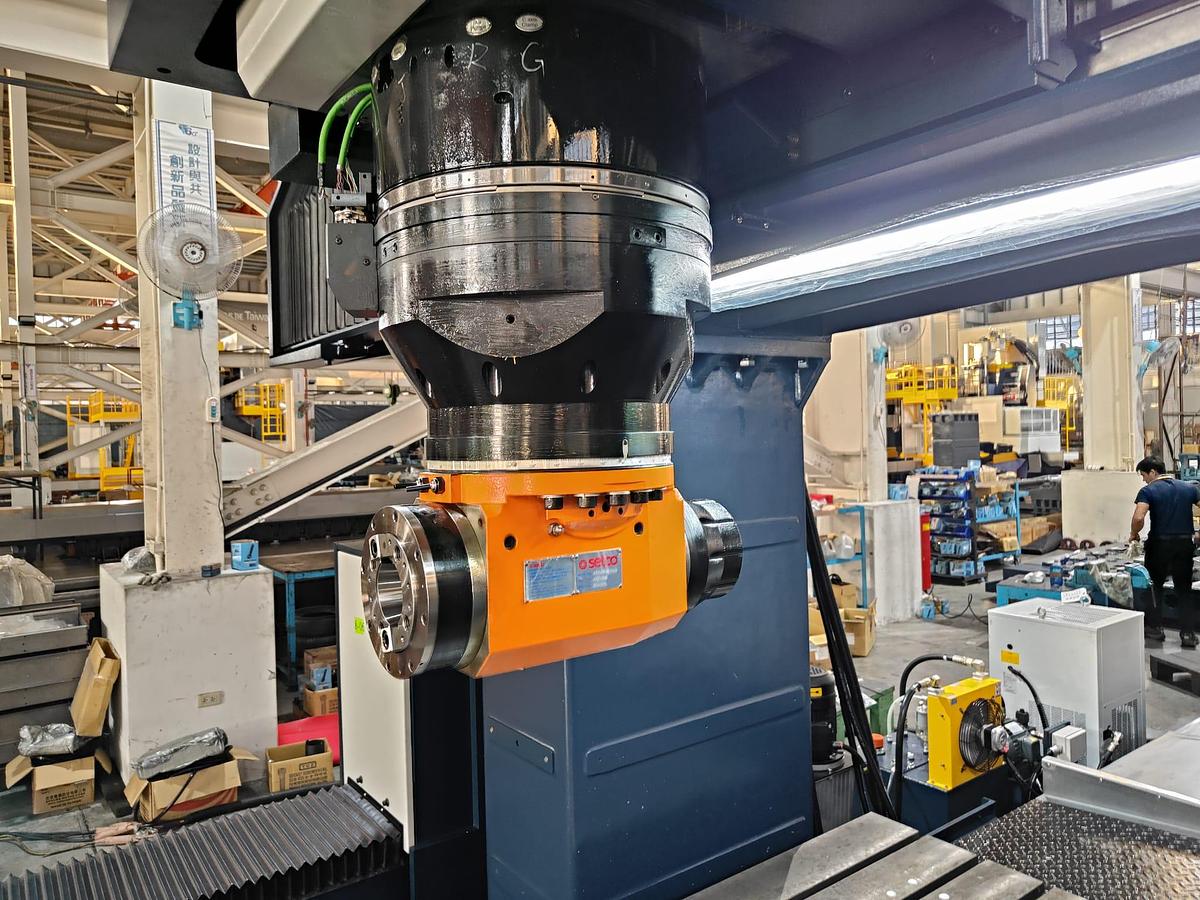

| Automatic head changer | 1- 90 degree programmable head attachment 5 degree increments |
| Coolant system | Lift up Chip conveyor |
| Full enclosure | Work envelope |
| CNC Control | Fanuc OiMF with 10.4" Screen |
| Chip removal | Dual augers on each side of table with lift up chip conveyor |
| Automatic atc | 30 |
| Approx. Machine Dimensions | 512" x 177" 177" Tall |
