Toshiba TUE-150S CNC Vertical Boring Mill
Toshiba TUE-150S CNC Vertical Boring Mill
Contact us for price
Location:Belgium, WI
or
Call 1-262-284-5611
Description

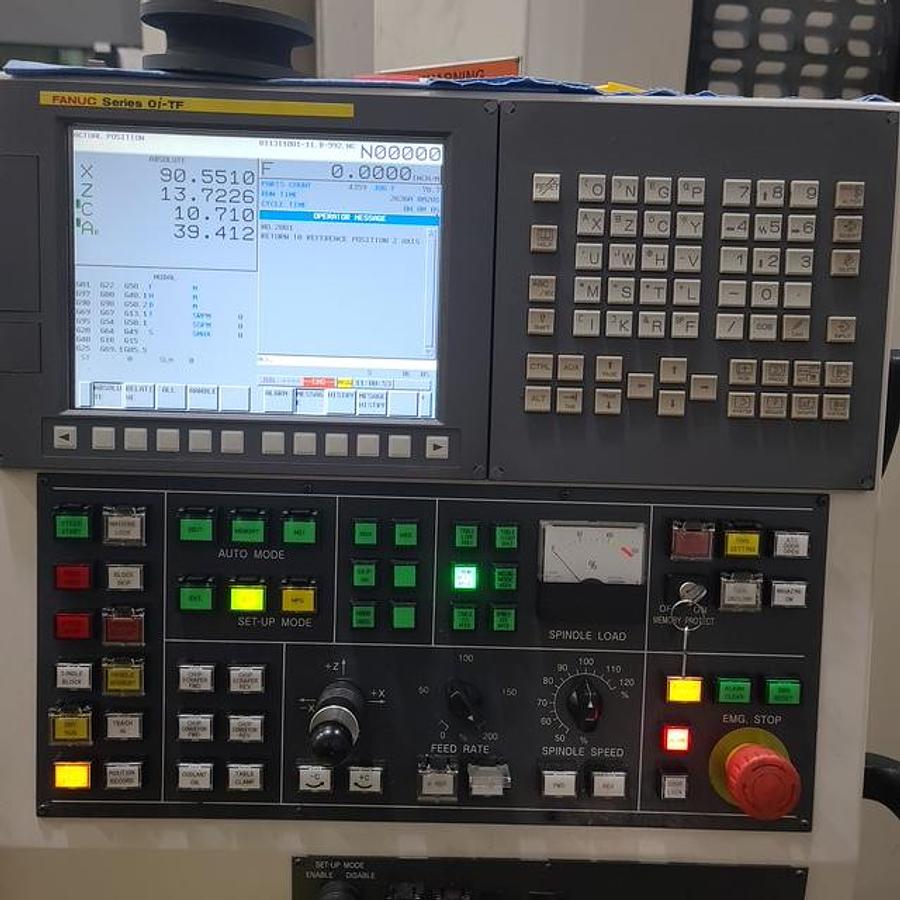

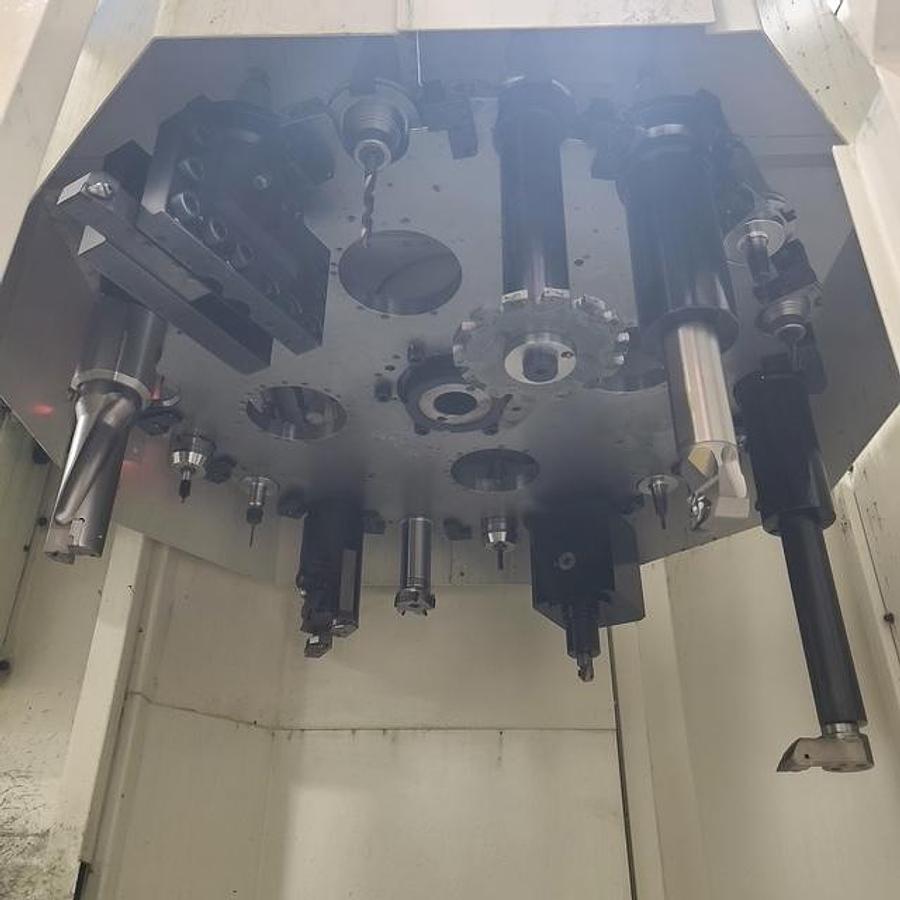

Fanuc Oi-TF CNC Control, 2,636 Run Hours, 4-Jaw Chuck with jaws, Ram with 18 Position Auto Tool Changer, Live Milling Spindle, C-Axis Table, Coolant Through Spindle, Chip Conveyor, Full Enclosure, tooling package included with the machine, leveling pads, chiller and books. Currently in plant underpower.
Machinery Works, Inc. will prep machine for shipment as discussed leaving the machine together and disconnecting the chiller, hydraulic system, coolant tank and chip conveyor. We will secure the ram and package and place cnc control stand inside the machines work envelope.
Specifications
| Manufacturer | Toshiba |
| Model | TUE-150S |
| Year | 2021 |
| Condition | Used |
| Serial Number | 440952 |
| Stock Number | 3677 |
| Table Diameter T-Slotted | 57.08" |
| Max. Turning Diameter | 78.74" |
| Max. Height Under Ram | 67.72" |
| Max. Cutting Height | 61.02" |
| Table Speed (2 Ranges) | 2-400 RPM |
| Live Spindle Speed | 15-3,000 RPM |
| Milling Spindle Taper | #50 |
| Ram Stroke | 35.43" |
| Horizontal Ram Travel | 47.24" |
| Rail Travel | 35.43" |
| Rapid Traverse (Tool Head) | 590 IPM |
| Machine floor space | R-L 161" x F-B 204" |
| Machine Height | 213.78" |
| Approx. Machine Weight | 37,480 Lbs |
| Table Drive Motor | 50/60HP |
| Electrics | 220/3ph/60Hz |
