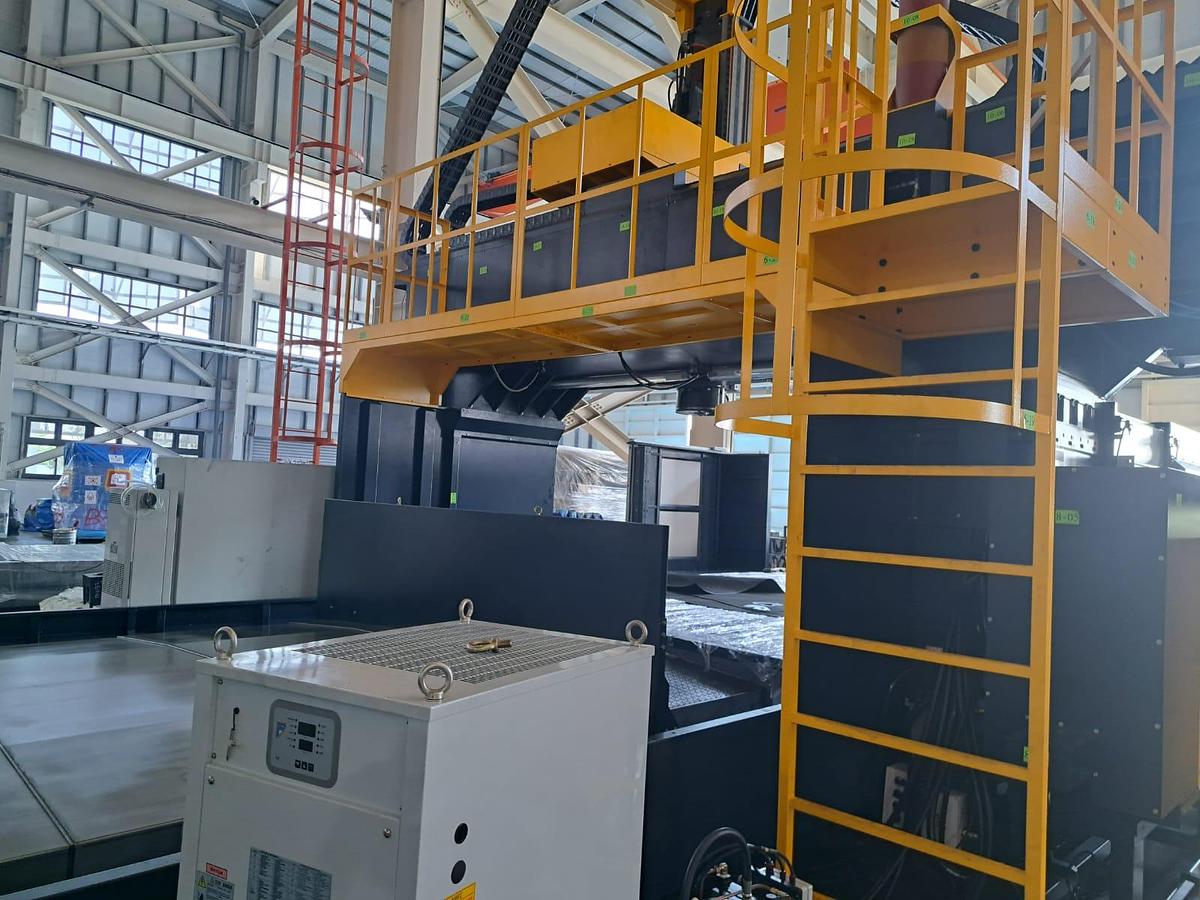

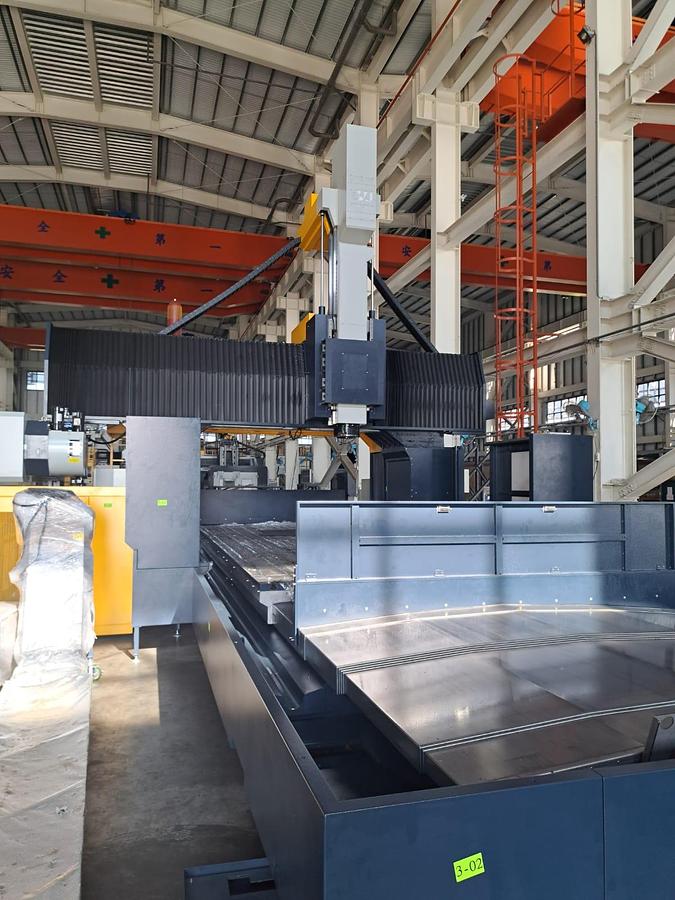

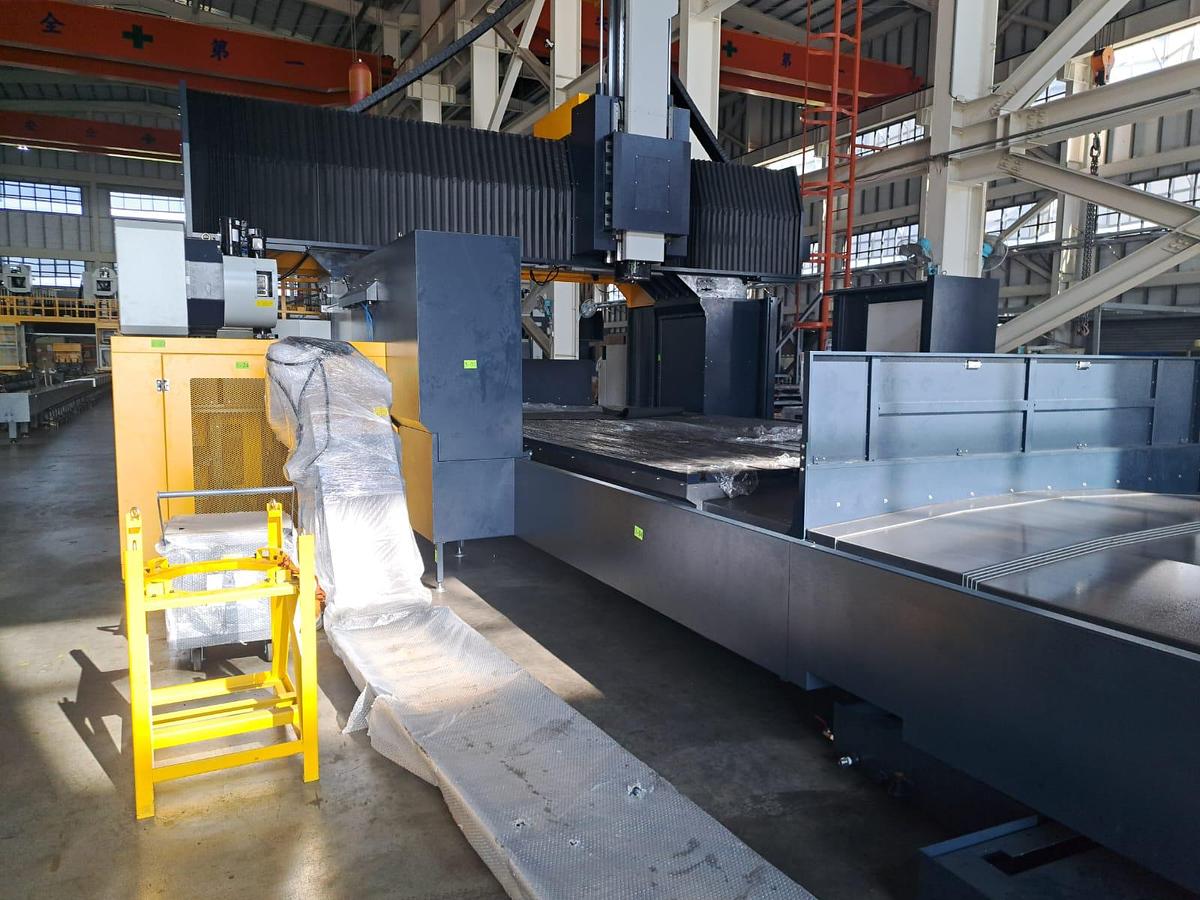

2025 Four Star FD3660
2025 Four Star FD3660
Contact us for price
Location:Japan
or
Call 1-262-284-5611
Description
This machine has been built and tested and is ready for shipment from the OEM with installation and training included, also includes two positions automatic head changer with two heads and one station for the bottom plate.
Specifications
| Manufacturer | Four Star |
| Model | FD3660 |
| Year | 2025 |
| Condition | Used |
| Stock Number | 3674 |
| Table size | 256" x 118" |
| Table Capacity | 25 Metric ton |
| X Axis travel | 236" |
| Y Axis travel | 167" (additional past coulumns for heads to be utilized on side of parts) |
| Z Axis travel | 55.16" |
| Distance Between Columns | 143" |
| Total y axis travel for atc and headchanger | 167" |
| Spindle Speed | 4,500 RPM |
| Spindle gear box | 2-speed |
| Spindle Motor | 30/37 kw (40/49 HP) |
| Spindle Taper | BBT#50 |
| CNC Control | Fanuc OiMF |
| Scale feedback | Heidenhain 3 axis X,Y,Z |
| Way system | THK Linear roller guide way |
| Ballscrew system | THK Ballscrews all axis |
| Automatic head changer | Three position APC |

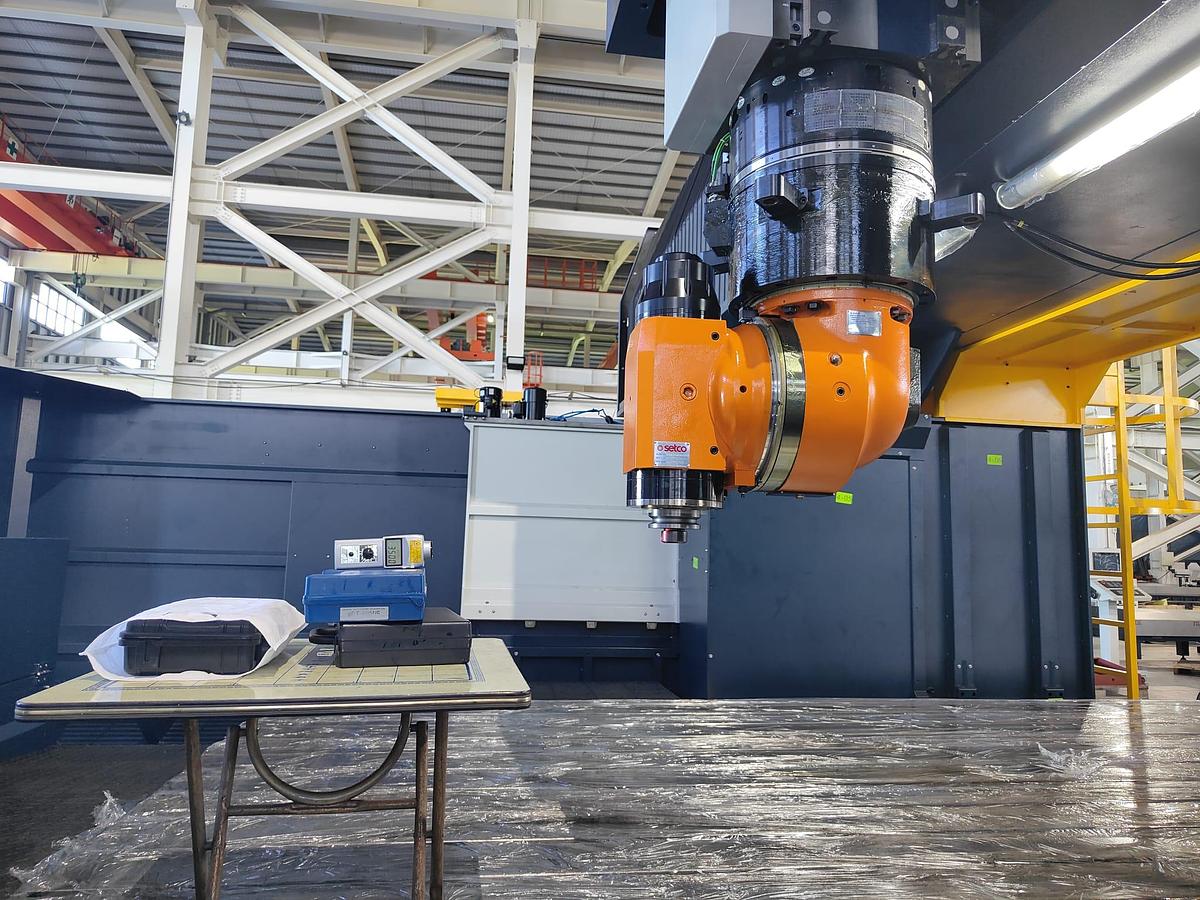

| 90 Degree head | 5 Degree index with coolant thru |

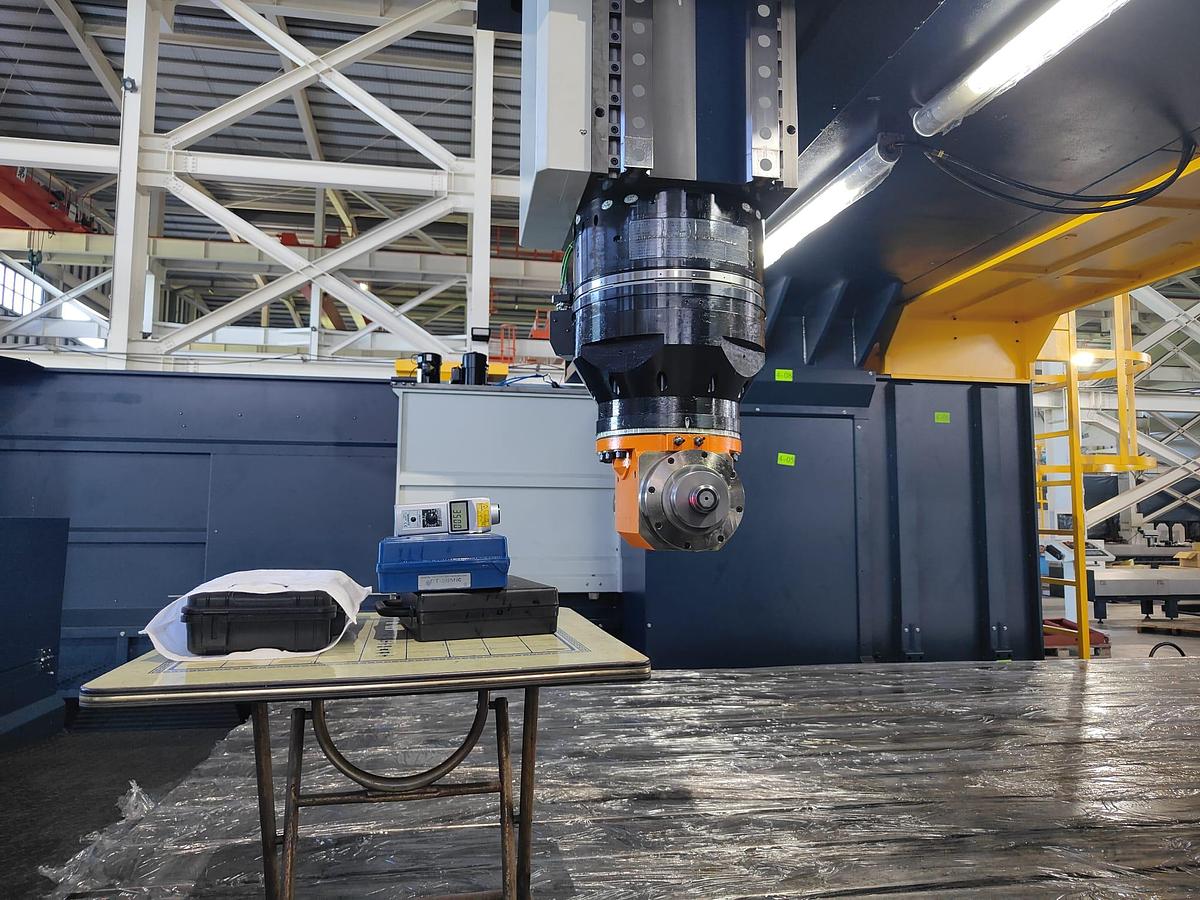

| Universal Head | A axis 1 degree and C axis 5 degree |
| Probe system | Renishaw RMP60 |
| Coolant | Coolant thru spindle 20-40 bar |
| Chip system | Dual table augers |
| Chip removal | Lift up chip conveyor |
| Chip Guarding | Opertator area chip guard |
| Standard accessories | Ram size 17.73" x 15.76", 32 automatic tool changer, Spindle cooler, spindle air blast, auto lubrication, Program end alarm, Rigid tap, air conditioner for electrical cabinet, USB/RJ45/ethernet, ATC auto door, foot switch for tool release, manual pulse generator, oil skimmer, |
| Machine size | 15.4/6.8/6.45 m |
| Approx. Machine Weight | 58 ton |
