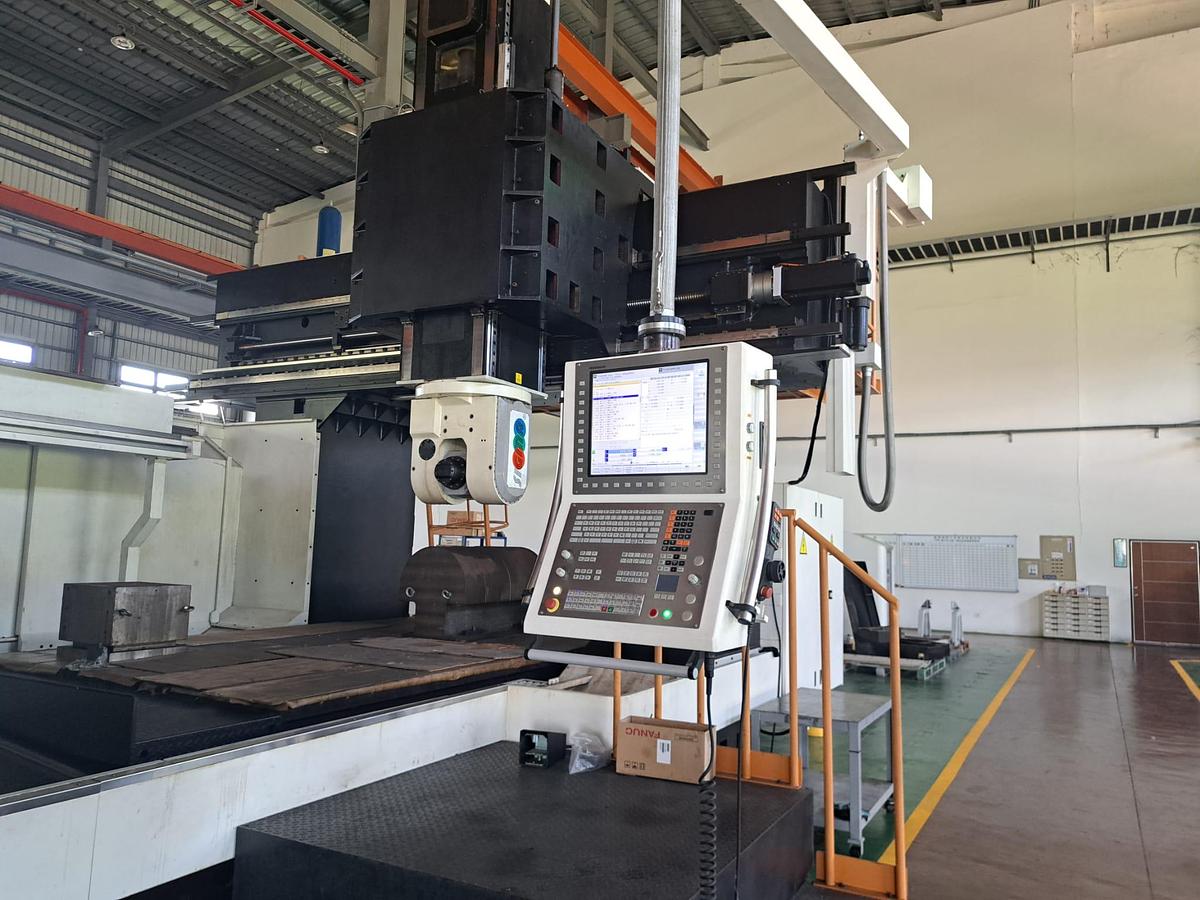

Sigma S5A-4732HH CNC Bridgemill
Sigma S5A-4732HH CNC Bridgemill
Contact us for price
Location:Taiwan
or
Call 1-262-284-5611
Description
Heidenhain ITNC 640, 2-Speed Geared Head Stock, X & Y Axis Ballscrew Supports, Scales, Chip Augers on Both Sides of Table, Lift Up Chip Conveyor, Coolant System, Ram Supported in Box Type Design For Rigidity.
Specifications
| Manufacturer | Sigma |
| Model | S5A-4732HH |
| Year | 2024 |
| Condition | Used |
| Stock Number | 3673 |
| Table Size | 157.48" x 86.61" |
| Max. Table Load Capacity | 33,069 lbs |
| X- Axis Travel | 157.48" |
| Y-Axis Travel | 126" |
| Z-Axis Travel | 47.24" |
| C-Axis | +200/-200 Degree |
| B-Axis | +110/-110 Degree |
| Spindle Motor | 47 HP |
| Spindle Speed | 4,000 RPM |
| Spindle Taper | BT#50 |
| Distance Between Columns | 99.21" |
| Distance From Floor To Table Top | 37.40" |
| Dead Stock Size | 26.96" x 30.19" |
