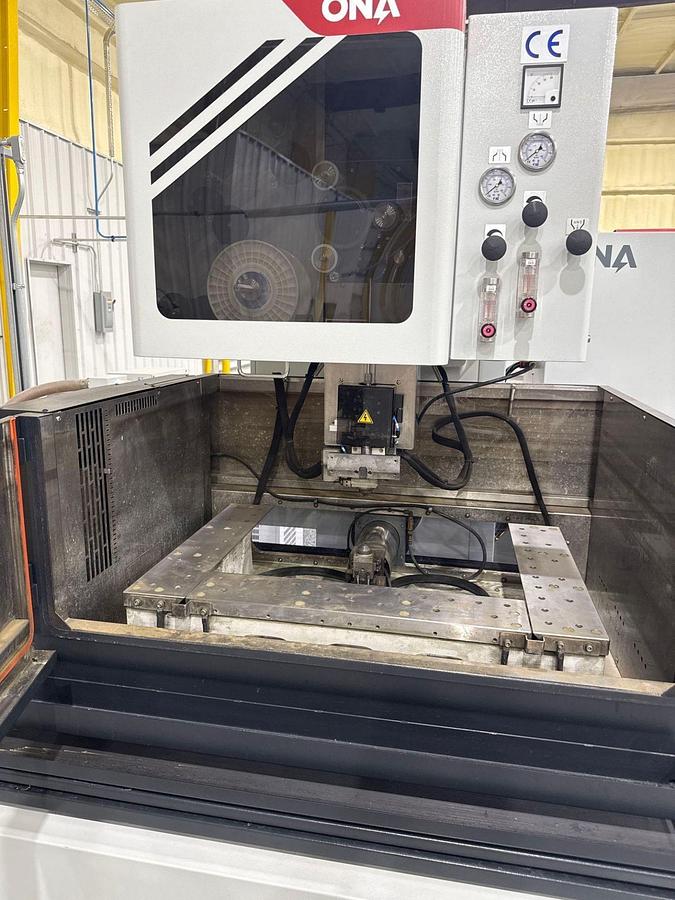

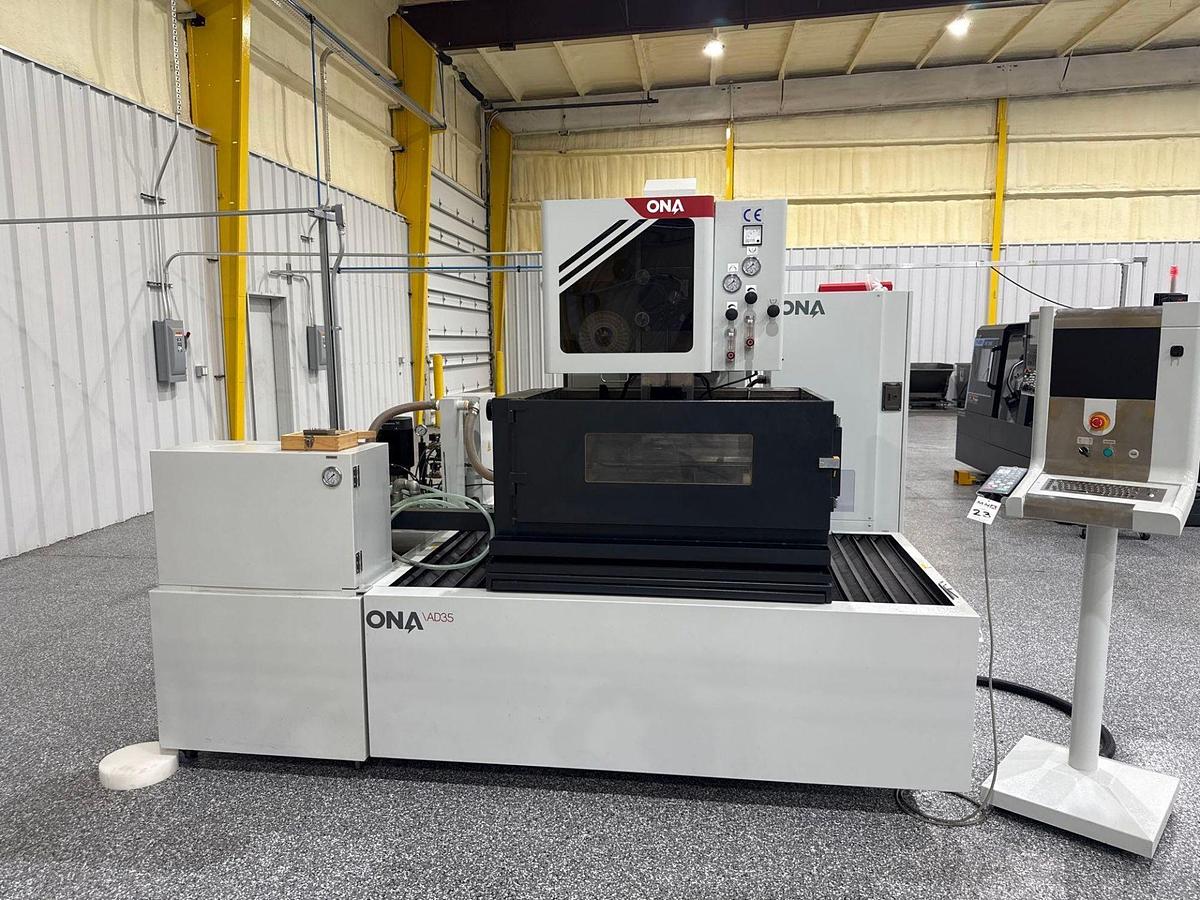

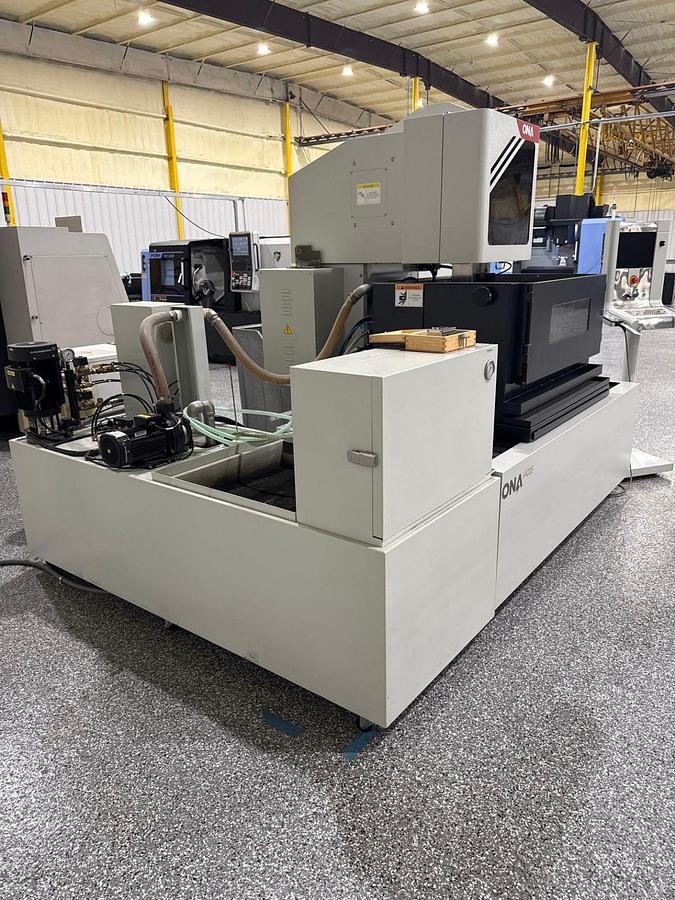

2021 ONA AD35 CNC Wire EDM

2021 ONA AD35 CNC Wire EDM
Contact us for price
Location:Belgium, WI
or
Call 1-262-284-5611
Description
15" Color Screen, Installed New 2023, RS 232 Connector, USA & Ethernet Connection, Anti-collision Detection System, Flushing & Submerged Cutting, Auto Wire Threader, Chiller, Glass Scale Feedback, 1GB Memory, Auto Grease System, 5-Axis Controlled, Precision Linear Guides on all axes, Magnetic Linear Drives on X&Y, Wire Spool up to 8 Kgs, MOSFET Transistorized Pulse Generator, High Frequency ASIC Chip to improve the cutting efficiency during discharge, Spark Auto adjustment according to erosion condition, Error Correction in Corners, Auto Entry Into Work piece, Linear/Circular Interpolation XY-UV, Taper Cutting by Inclination angle. Installation and training available.
Specifications
Manufacturer | ONA |
Model | AD35 |
Year | 2021 |
Condition | Used |
Stock Number | 3658 |
X-Axis Travel | 23.6" |
Y-Axis Travel | 15.7" |
Z-Axis Travel | 11.41" |
U,V Axis Travel | 3.93" - 3.93" |
Max. Workpiece Dimensions | 38.9" x 24.4" x 11.4" |
Max. Workpiece Weight | 2,200 lbs |
Max. Taper Angle | +-21 Degrees/3.93" |
Linear Motors | X&Y |
Glass Scales | X&Y 0.00003937" |
Encoder U,V & Z Axes | 0.00019685" |
Standard Wire Diameter | 0.008", 0.010", 0.012" |
Cutting Technology | Flushing And Submerged |
Wire Guides | Closed Type, Diamond |
Wire Spool | 17.63 lbs |
Min. Diameter of Threading Hole | 0.019" |
Dielectric Capacity | 224.54 Gal. |
Filtration Quality | 0.00011811" |
Axis Simultaneously Controlled | X, Y, U & V |
Approx. Machine Weight | 8,157 lbs |
Machine Height | 81.22" |
Power | 380V/3ph/50-60Hz |
