Troyke NC42C360HD Rotary Table
No longer available
Troyke NC42C360HD Rotary Table
Saukville, WI
Description
Equipped With:

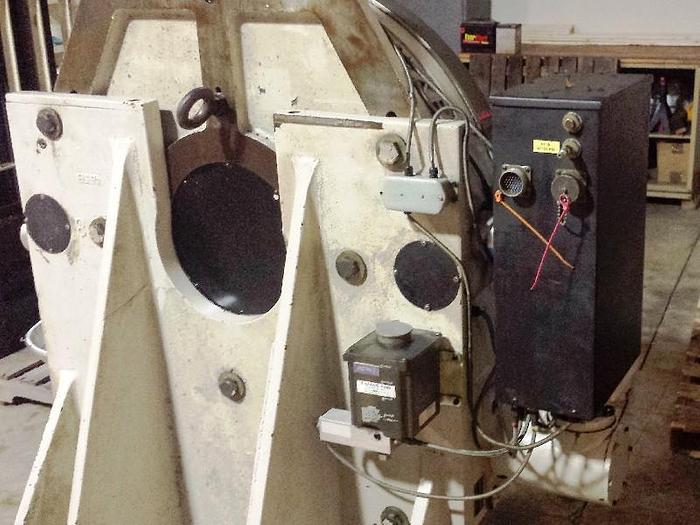

Angle Bracket
C907 Bronze Wormgear and Hardened and Ground Worm Running in a Bath of Oil
High Precision Spindle Bearings
Turcite Bearing Surface
Dual Rack & Pinion Pneumatic Brake
Precision Ground Surfaces
Single Axis Programmable Control
Cables for Interfacing to Machine Tool
Troyke NC42C360HD
Specifications
Condition | Used |
Stock Number | 2533 |

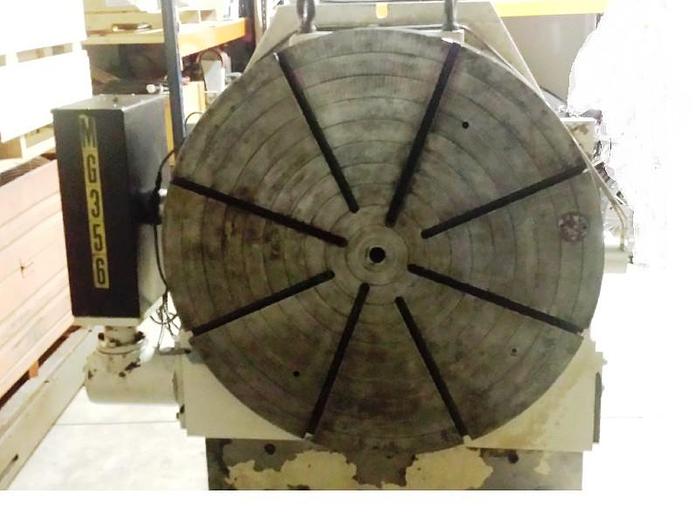

Turn table dia. | 42" |
Horzontial load cap. | 7,000 lbs |
Vertical load cap. | 4,000 lbs |
Faceplate t-slot width | .81" x 6 |
Max. speed range (std ratio) | 0-4 |
Standard con. torque | 4,500 ft lbs |
Brake torque | 1550 ft lbs |
Unit weight | 4,200 lbs |
