Naxos CNC Multi-Axis Cylindrical Grinder

Naxos CNC Multi-Axis Cylindrical Grinder

Contact us for price

Location:Belgium, WI

orCall 1-262-284-5611

Description

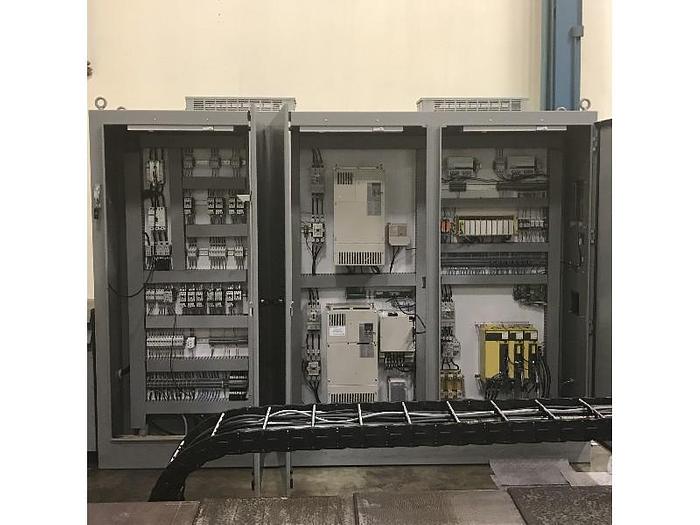

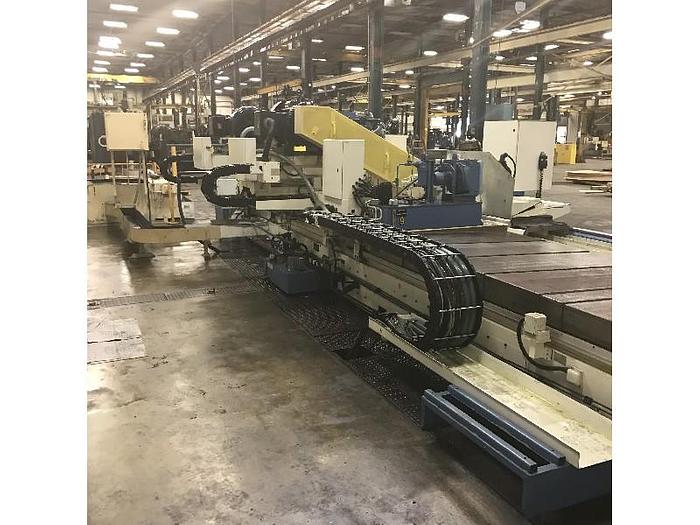

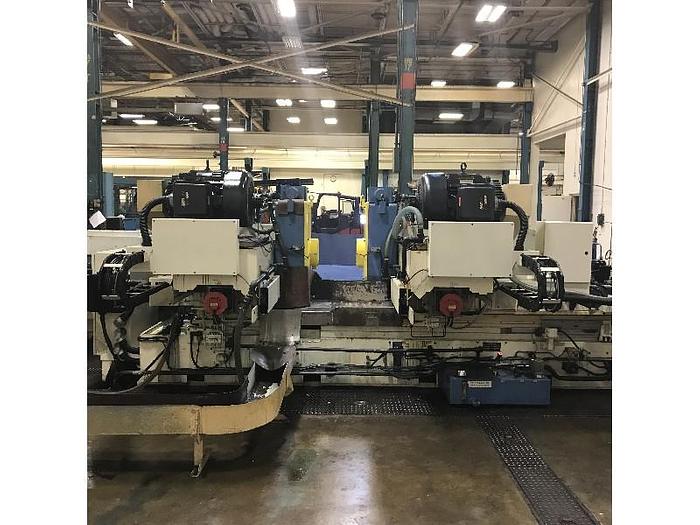

This machine is located in our facility underpower for inspection it was completely remanufactured to new specifications in 2013 and installed in 2014. It was stripped down to the bare casting, table/base/wheel heads/work head and tailstock and the second z axis ways were fit and rescrapped. New electrical cabinet with all new wiring to the machine and new all components, hydraulic lines, air lines and new cable carriers were added. New Marathon 60HP motors for both grinding wheel heads. (The drives in the cabinet are set for 40 Hp)The spindle drives in the cabinet are Yakawa built in the USA along with the workhead drive servo motor. All new ballscrews and nuts with support brackets for stabilizing the screw under operation. The machine has a new balancing system which monitors both spindle grinding heads constantly during operation and automatically makes corrections if needed. Equipped With: Fanuc Oitd Latest control with graphics for both spindles Communication ports, USB/ RS232/PCMI MPG (manual pulse generator) Digital load meters for both grinding spindles SBS Balancing system in process for both grinding wheel heads Fanuc servo motors for each axis Ballscrews each axis Fagor scales for each axis with positive air pressure Yaskawa work head servo motor New electrical cabinet all new components and wiring to all machine motors and accessories New spindle motors for each grinding head Coolant tank with paper filtration system Balancing stand with arbor (4) four wheel hubs (2) pillow blocks Several workhead drive units Lifting bracket for removal of grinding wheel Attachment for rough grinding of wheels Attachment for special dressing applications Hydraulic unit for each head Way lubrication system Air assist for tailstock body travel Tailstock with taper adjustment, power quill feed, tailstock operator station with forward/reverse and e-stop for quill Automatic diamond dresser probe (compensate for wear in diamond) Automatic wheel probe (to read and compensate for width, diameter, taper of wheel ) Automatic dresser for straight wheel Automatic taper wheel grinding wheel Apprx. cutting time 2,980 hours Workhead station operators control, forward, reverse, e-stop

Specifications

ManufacturerNaxos
Year1987
ConditionUsed
Stock Number3272
Max. swing24.78"
Max. distance workhead face to tailstock face191"
Max. travel for z axis (table)198"
Max. grinding distance for main wheel178"
X axis infeed travel for both head stocks28.38"
Max. travel for z axis second spindle#2 107"
Grinding wheel spindle motors (2) marathon60hp (Drives limited to 40hp)
Apprx. weight between centers9,000 lbs
Tailstock quill diameter6"
Tailstock stock bodyAir assist for movement
Tailstock bodyAdjustment for taper
Tailstock quill taperLive center Mfg. Riden (M3817)
Machine floor space45'4" long x 20'4" deep
Apprx. weight66,000 lbs
Power requirement460/3/60
Kva requirement118 kva
