Anayak Nicolas Correa HVM-T-10000 CNC 5-Axis Travelling Column Mill
No longer available
Anayak Nicolas Correa HVM-T-10000 CNC 5-Axis Travelling Column Mill
Belgium, WI
Description

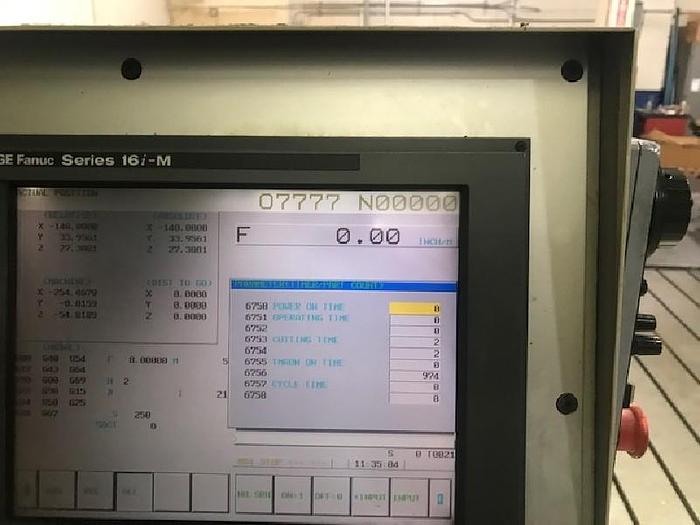

Equipped With: CNC Control Fanuc 16i High speed skip function Additional custom Macros Part Program storage 80m Manual Pulse Generator Opertaor platform Programmable Universal Head ATC changes tools in vertical or horizontal position. 15 Bar Coolant Through tool Chip Conveyor Coolant No Floor Plates Included or Riser Complete Rebuild on Head, 2017 Newer way covers for x axis Rebuilt X axis ballscrew
Specifications
| Manufacturer | Anayak Nicolas Correa |
| Model | HVM-T-1000 |
| Year | 2000 |
| Condition | Used |
| Stock Number | 3468 |
| X-axis travel | 30'6" ( 372" long.) |
| Z-axis travel | 58" (cross) |
| Y-axis travel | 106" (vertical) |

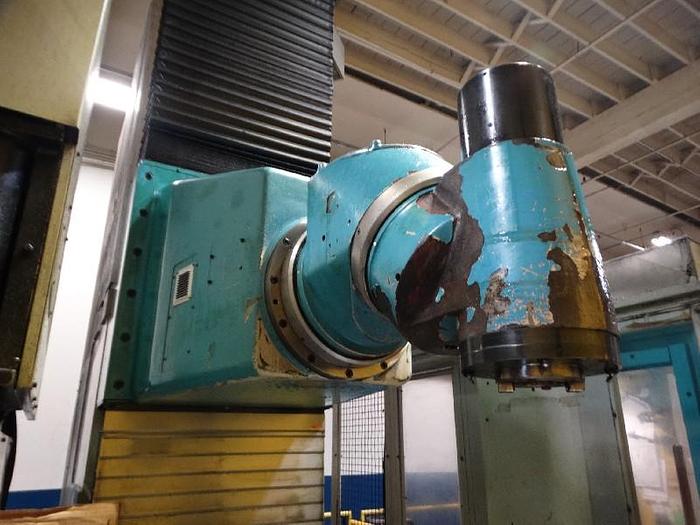

| Head has 2 rotating points universal head, c axis | 2.5 degree Increments |
| Secondary b axis | 1 Degree Programmable |
| Spindle motor | 50 HP |
| Spindle taper | #50 Taper |
| Spindle speed | 3,000 RPM |
| No. of tool pckets | 30 ATC |
| Apprx. floor space required | 61' x 10' x 17' |
| Apprx. net weight | 135,000 lbs |
