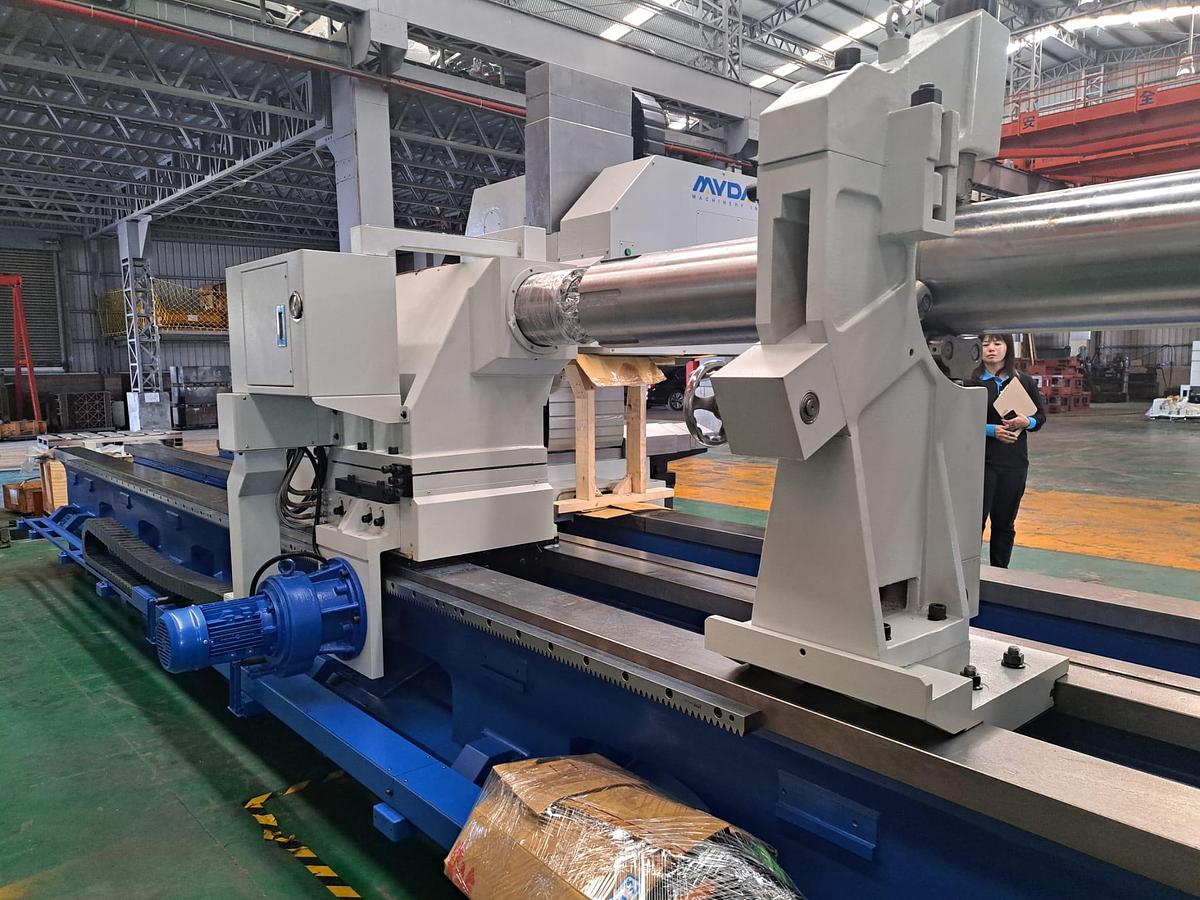

MY DAY SGE1500 CNC Lathe
MY DAY SGE1500 CNC Lathe
Contact us for price
Location:Belgium, WI
or
Call 1-262-284-5611
Description
Siemens cnc control,
4- HD Guideway series with twin pass by crossslides,
Includes; Tailstock, One Carriage with Live Tooling turret with Y axis, 2nd Carriage has a Boring Mill Spindle with Quill for Heavy Milling, Width of bed 53.17” 4 way design for pass by steadies and tailstock and will park when using second turret along side of headstock to give you full travels with both crossslides. Lift up chip conveyor with coolant tank, machine has back splash covers for chip control, coolant thru the turret, books, manuals and installation can be included.
Delivery from factory @7-10 weeks to USA port.
Specifications
| Manufacturer | MY DAY |
| Model | SGE1500 |
| Year | 2025 |
| Condition | Used |
| Stock Number | 3657 |
| Max. Swing | 59.1" |
| Swing Over Cross Slide | 39.1" |
| Distance Between Centers | 236" |

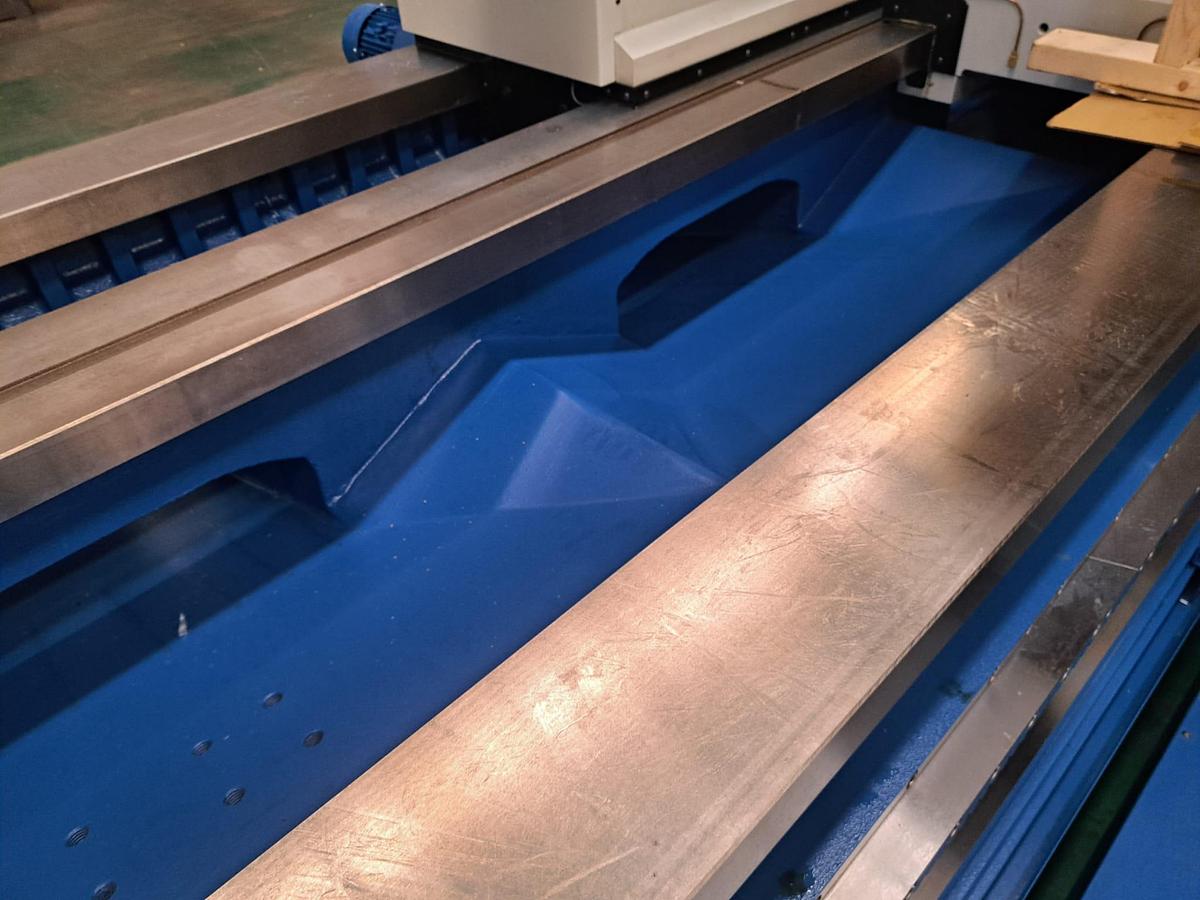

| Width of Bedways | 53.17" 4 ways design for pass by steadies |
| Spindle Bore | 5.91" |
| Spindle Motor | 50 HP |
| Spindle Speeds | 1,200 RPM |
| Tailstock Quill Diameter | 8.6" |
| Tailstock Quill Travel | 9.85" |
| Turret Capacity | 12 Station with live tooling and Y axis |
| Boring mill column | Secondary crossslide for heavy milling feature |
