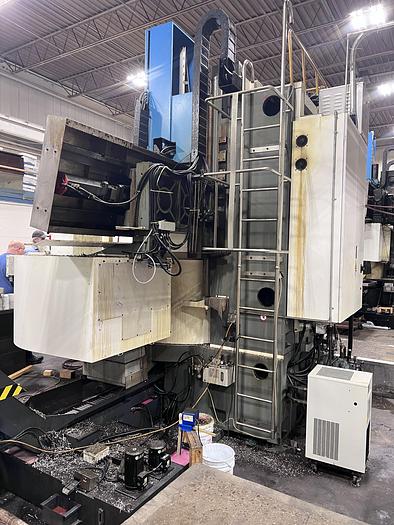

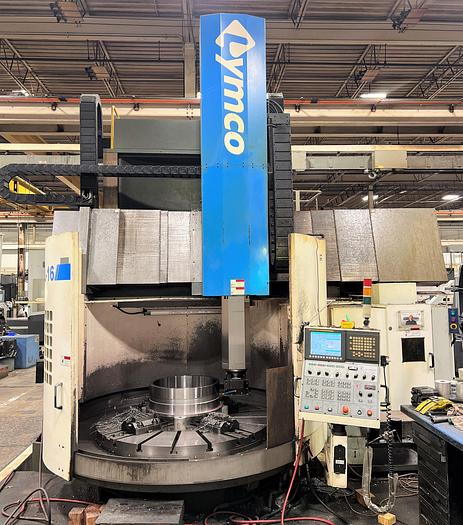

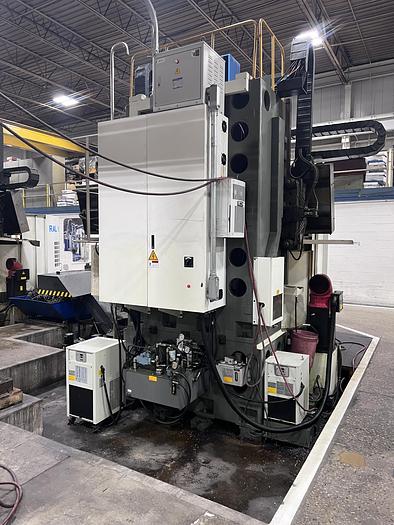

Lymco RAL-16 CNC Vertical Boring Mill W/ATC
No longer available
Lymco RAL-16 CNC Vertical Boring Mill W/ATC
Location:New York, NY
Description
Equipped With:

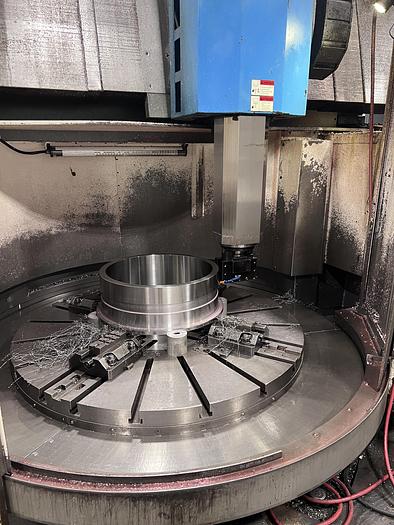

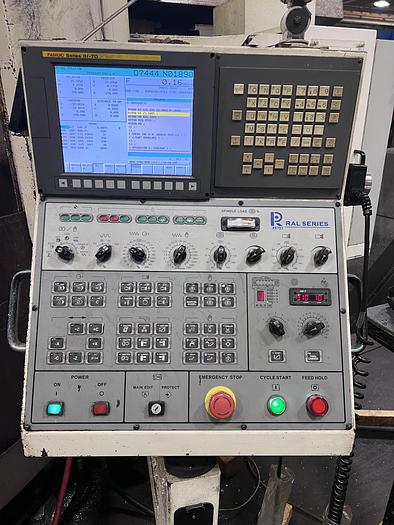

FANUC 0I-TD CNC CONTROL,12-STATION AUTOMATIC TOOL CHANGER, 63" CHUCK W/4-FACE PLATE JAWS,FULL ENCLOSURE, COOLANT SYSTEM, CHIP CONVEYOR
NOTE: This machine is a copy of the Toshiba TUE15 VBM. This factory in Taiwan had made Toshiba VBM's under a different license and sold around the world. The machine configuration (layout) is very close to the Toshiba you already have, no pit required and easy to install and move. Approximately 6500 hours in 11 years of running, one owner machine.
Specifications
Manufacturer | Lymco |
Model | RAL-16 |
Year | 2012 |
Condition | Used |
Stock Number | 3621 |
Table Diameter | 63" |
Max. Swing | 78.74" |
Max. Turning Diameter | 74.80" |
Max. Turning Height | 62.99" |

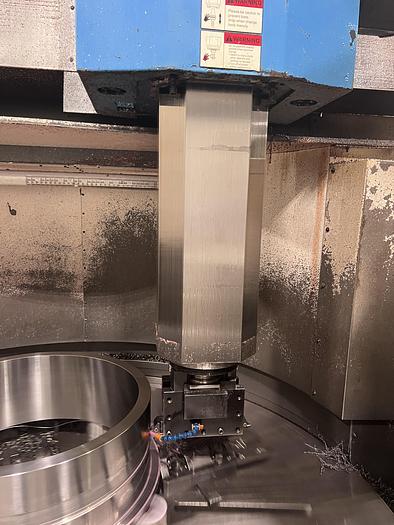

Ram Stroke | 39.4" |
Crossrail Stroke | 31.49" (5 Position) |
X-Axis Traverse | -7.87"/+44.29" |
Max. Table Load Capacity | 22,000 Lbs |
Spindle Speeds | 1-250 RPM |
Spindle Motor | 50/60 HP |
