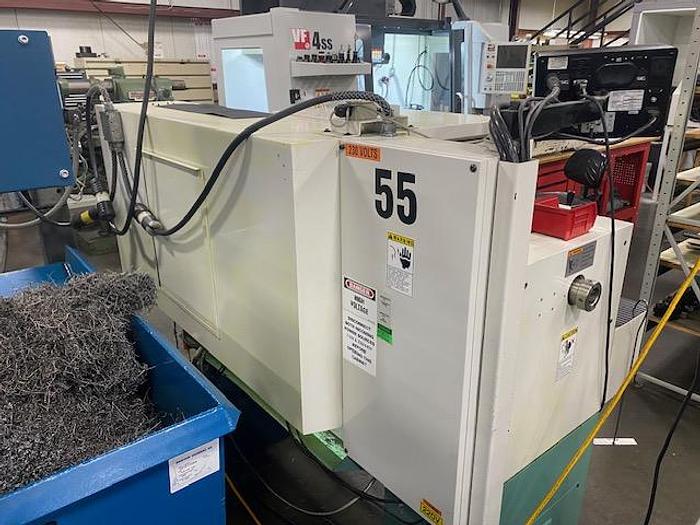

Proto Trak TRL 1440EX Turning Center
No longer available
Proto Trak TRL 1440EX Turning Center
Location:Wisconsin
Description

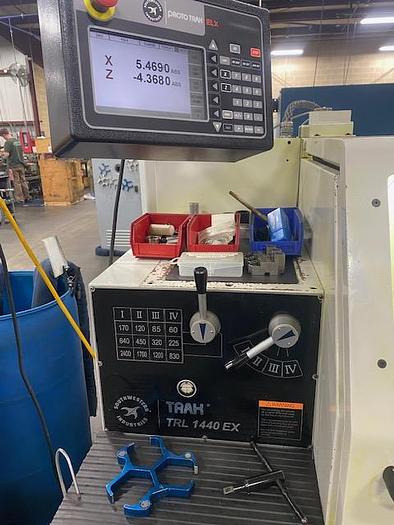

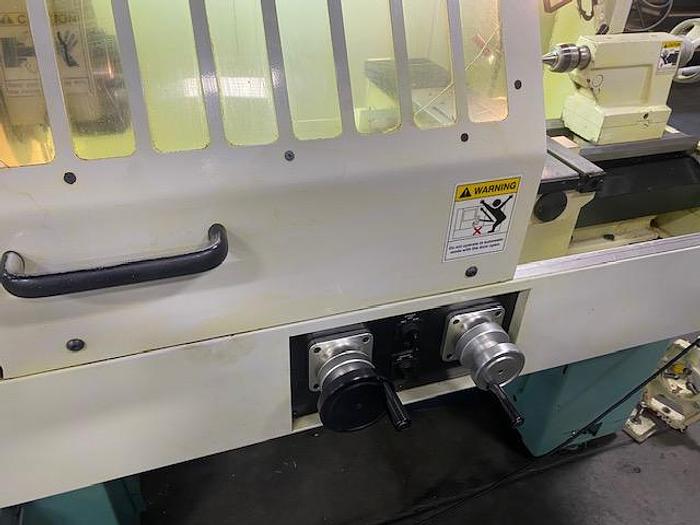

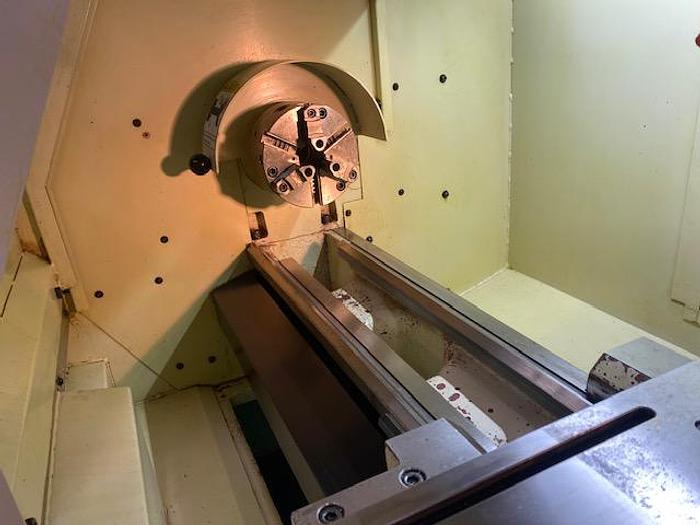

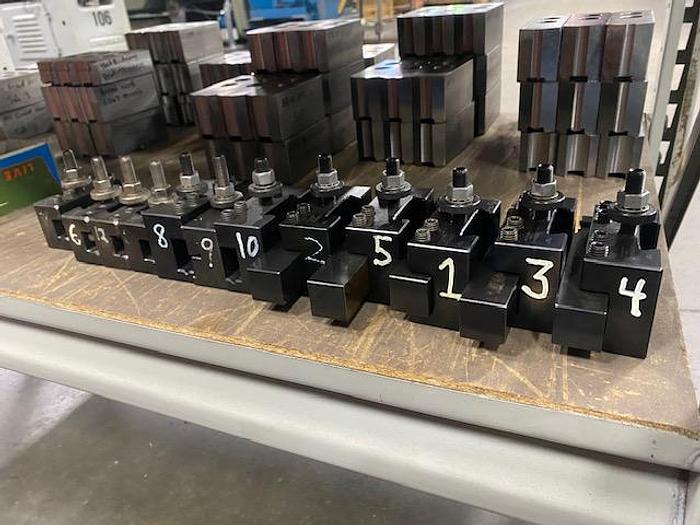

Electronic Handwheels for Manual operation, 7” active-matrix screen D.R.O, 4 USB connectors, Tailstock, Steady Rest, assorted tool holders, Bedways hardened and ground, Dovetails on cross slide, V-ways on saddle, Adjustable saddle gibs, 3 Gallon Coolant Tank. VERY CLEAN MACHINE
Specifications
| Manufacturer | Proto Trak |
| Model | TRL 1440EX |
| Condition | Used |
| Stock Number | 3620 |
| Swing Over Bed Ways | 14" |
| Swing Over Cross Slide | 7" |
| Distance Between Centers | 40" |
| Spindle Bore | 1.57" |
| Spindle Motor | 5 HP |
| Spindle Speeds | 60-2,400 RPM |
| Rapid traverse Rate (X&Z) | 100 IPM |
| Cross Slide Travel | 8" |
| Spindle Nose | Camlock D1-4 |

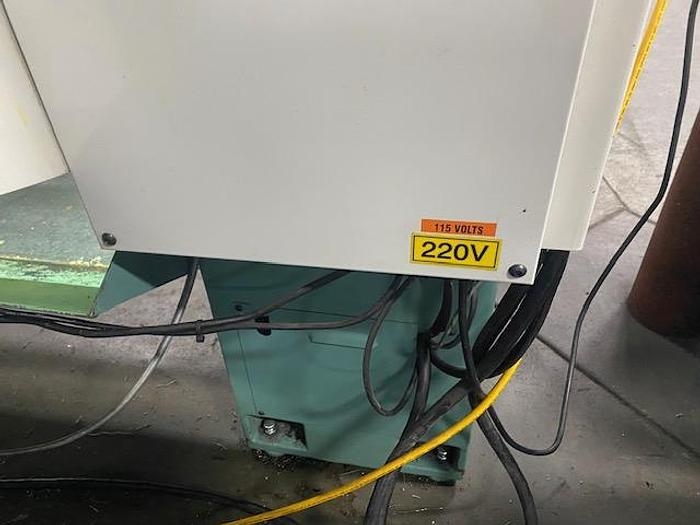

| Machine Voltage | 220/3ph/60 |
| Approx. Machine Weight | 1,800 lbs |
| Tailstock Quill Travel | 1.575" |
| Tailstock Quill Taper | MT#3 |
