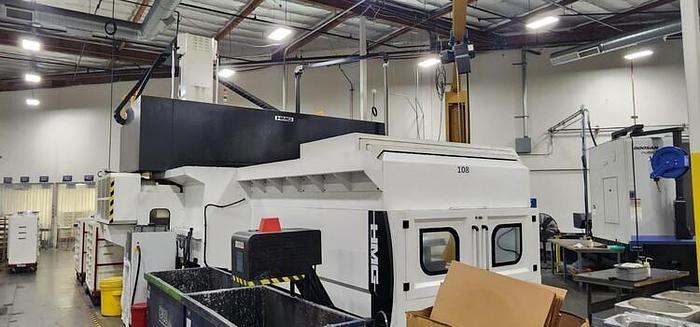

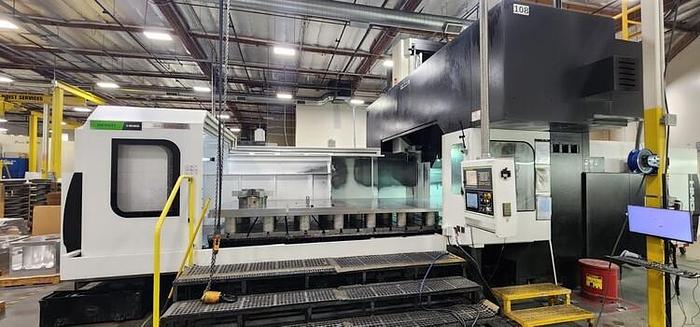

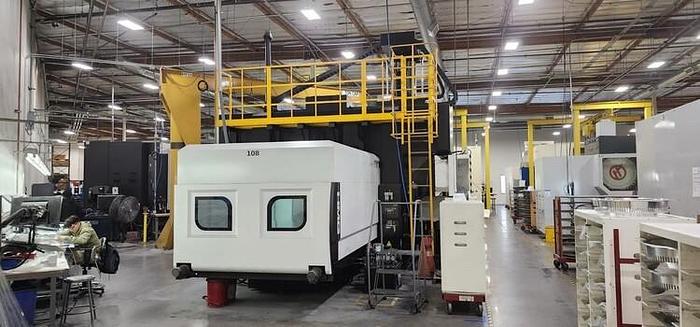

Hartford HSA-423EAY Double Column Machining Center

No longer available

Hartford HSA-423EAY Double Column Machining Center

Location:Belgium, WI

Description

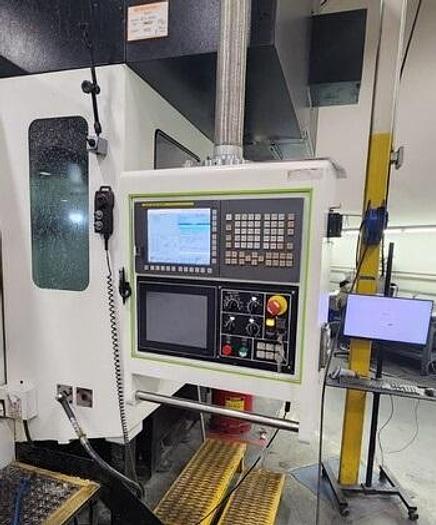

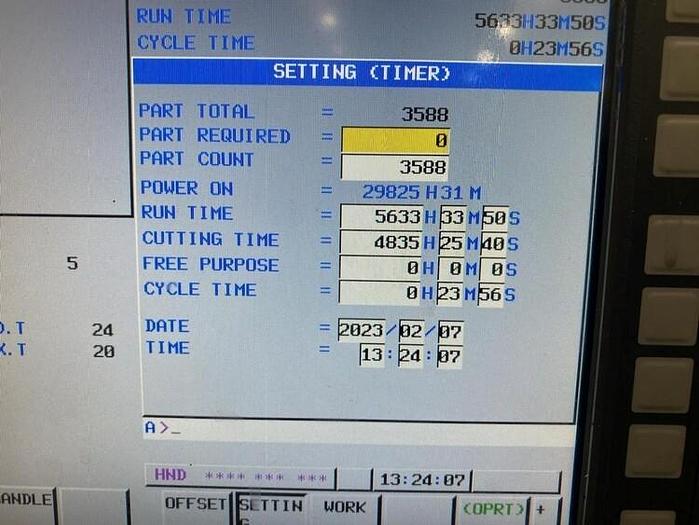

- FANUC OIMF CONTROL, DATA SERVER 1 GB WITH FLASHCARD, AICC 400 BLOCK LOOK AHEAD, AI CONTOUR CONTROL, X, Y, AND Z SCALES, TOOL LIFE MANAGEMENT, SPINDLE COOLER, TOOL LIFE MANAGEMENT, RENISHAW TOOL & PART PROBES (TS-27R & OMP60), SCREW-TYPE CHIP CONVEYOR


  • HP Coolant thru spindle

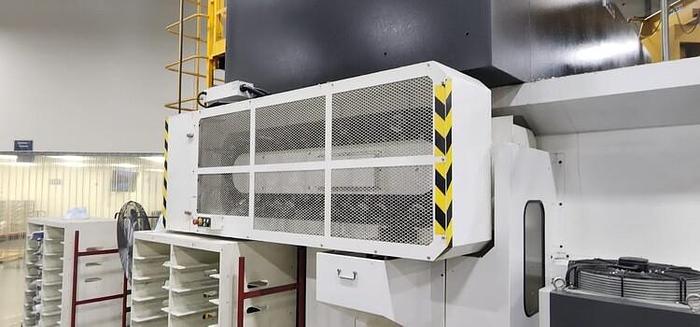

  • Lift up chip conveyor
  • Fully enclosed work envelope
  • Slant beam cross rail for increased rigidity at the spindle
  • 3-axes direct drive servo motor: effectively reducing the transmission backlash by more than 30%
  • Z axis nitrogen counterweight design: reduce the operating noise of the hydraulic tank, reduce the oil temperature by 50%, and effectively save energy by more than 20%
  • Heidnenhain scales X,Y,Z axis


Show All

Specifications

ManufacturerHartford
ModelHSA-423EAY
Year2018
ConditionUsed
Stock Number3615
Table Size157.5" x 86.6"
Max. Table Load Capacity26,500 lbs
X-Axis Travel157.5"
Y-Axis Travel122.1"
Z-Axis Travel39.4"
Distance From Spindle Nose To Table Top13.8" - 53.2"
Distance Between Columns90.62"
Positioning Accuracy+- 0.0004"
Repeatability Accuracy+- 0.0001"
Rapid Traverse Rate X,Y & Z787.4/708.7/629.9 IPM
Spindle TaperCT#50
Spindle Speed10,000 RPM
Spindle Motor30/35 kw (40/ 47 hp)
Auto Tool Change Capacity32 ATC
Max. Tool Weight44.1 lbs
Max. Tool Size4.92" - 15.75"
Electrics220v/3ph/60Hz/60 Kva
Approx. Machine Dimensions511.8" x 267.7"
Approx. Machine Weight81,800 lbs
