Geminis 4 Plus CNC Flat Bed Lathe
No longer available
Geminis 4 Plus CNC Flat Bed Lathe
Location:Belgium, WI
Description

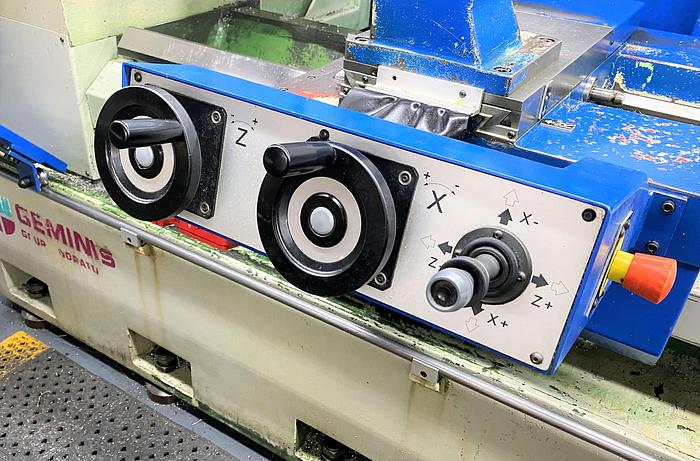

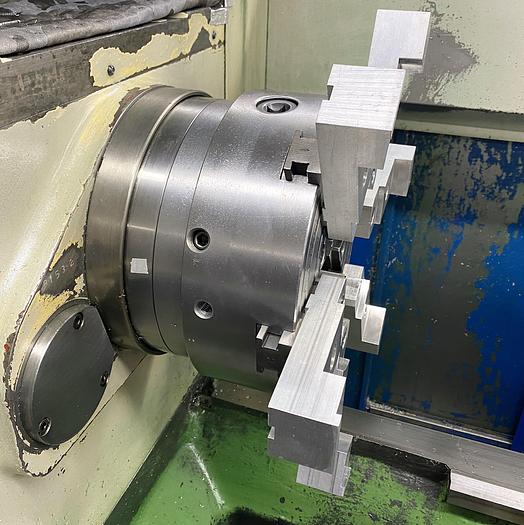

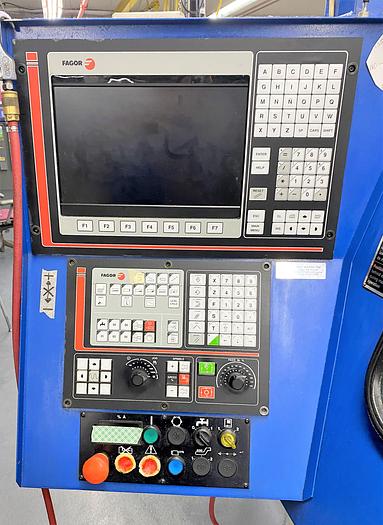

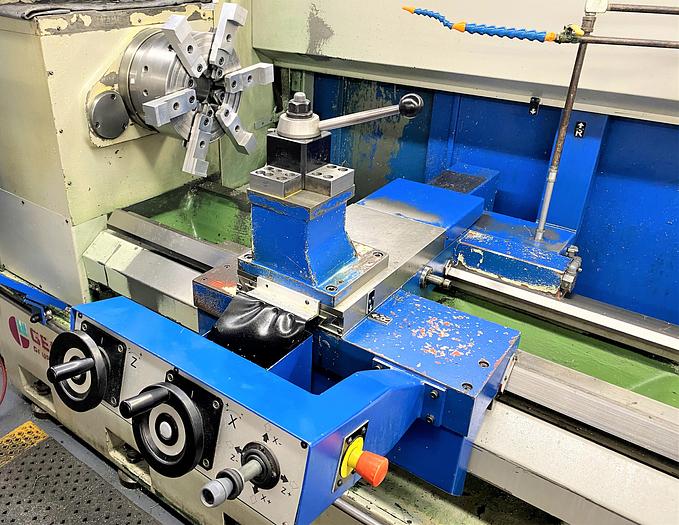

Fagor 8055 Control, 12" Buck Chuck, Steady Rest, Tool Post, Back Splash Guarding, Coolant Tank, Manual Teach Hand Wheels.
Specifications
| Manufacturer | Geminis |
| Model | 4 Plus |
| Year | 1998 |
| Condition | Used |
| Stock Number | 3606 |
| Swing | 28.36" |
| Swing Over Cross Slide | 16.94" |
| Distance Between Center | 78.8" |
| Spindle Bore | 4.09" |
| Spindle Motor | 22 HP |
| Max. spindle speed | 1,600 RPM |
| Spindle Ranges | 2 |
| Tailstock Quill Diameter | 3.94" |
| Tailstock Quill Travel | 7.8" |
| Tailstock Quill Taper | MT#6 |
| Machine Bed Width | 16.94" |
| Approx. Machine Dimensions | 130" x 90" x 75" |
| Approx. Machine Weight | 14,300 lbs |
