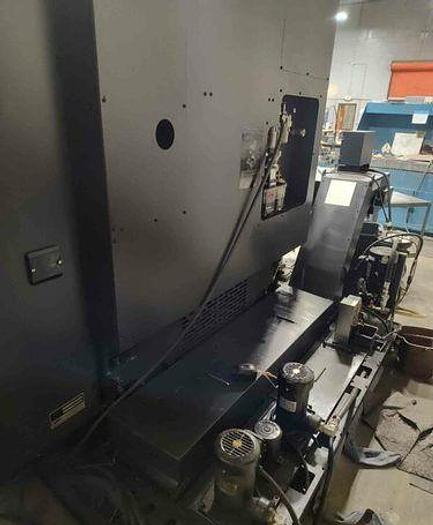

Samsung MCV 5000 CNC Multi-Axis CNC Vertical Machining Center
No longer available
Samsung MCV 5000 CNC Multi-Axis CNC Vertical Machining Center
Location:OR
Description

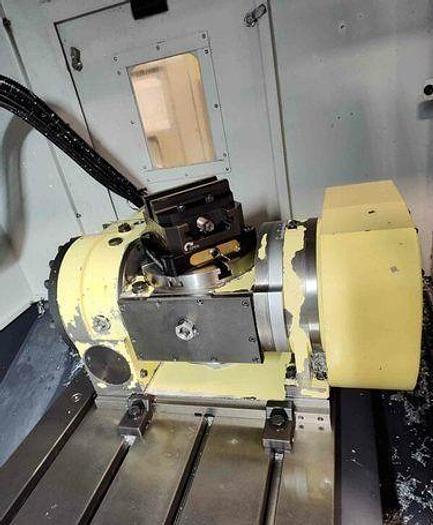

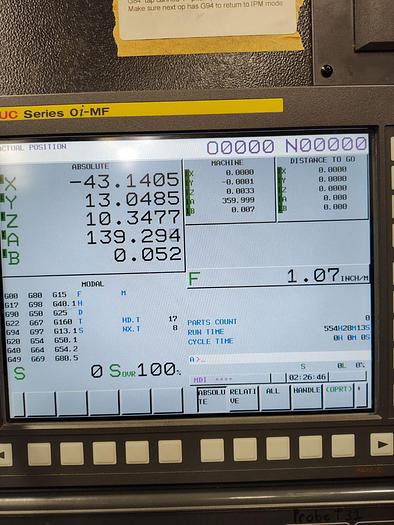

Fanuc OiMF Manual Guide, Approx. 600 Cutting Hours, 290 PSI CTS, Nikken 4/5th Axis Rotary, Spindle Chilling Unit, Oil Skimmer, Full Enclosure, Built in Screw Type Chip Augers, Ridged Tapping, Renishaw Part Probe/Tool Setter, Z-Axis HP Upgrade 4,000 lbs Thrust, Side Discharge Lift Up Chip Conveyor, Spindle Air Blowout, 2MB Program Storage
Specifications
| Manufacturer | Samsung |
| Model | MCV 5000 |
| Year | 2017 |
| Condition | Used |
| Stock Number | 3602 |
| Table Size | 21.26" x 47.24" |
| Max. Table Load Capacity | 2,205 lbs |
| X-Axis Travel | 41.3" |
| Y-Axis Travel | 21.2" |
| Z-Axis Travel | 20.4" |
| Spindle Motor | 25 HP |
| Spindle Speed | 10,000 RPM |
| Spindle Taper | BBT CT #40 |
| Auto Tool Changer Capacity | 30 ATC |
| Spindle Nose To Table Top | 22" |
| Approx. Machine Dimensions | 143" x 112" x 109.4" |
| Approx. Machine Weight | 14,771 lbs |
