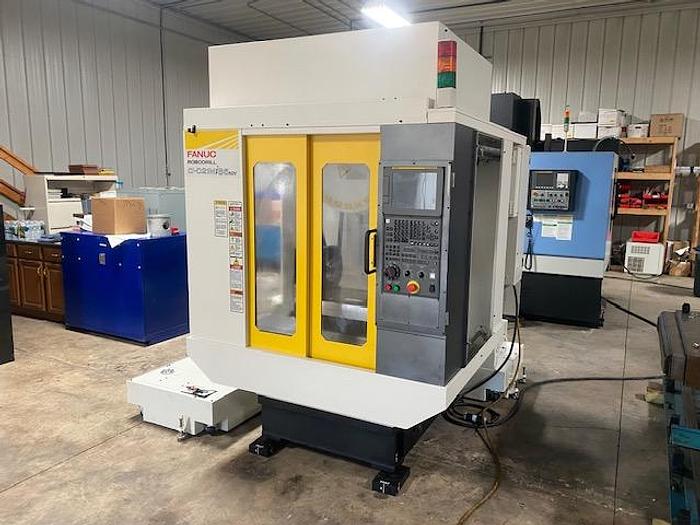

Fanuc D21Mib5ADV 4- Axis CNC Vertical Machining Center
Fanuc D21Mib5ADV 4- Axis CNC Vertical Machining Center
Contact us for price
Location:Belgium, WI
or
Call 1-262-284-5611
Description

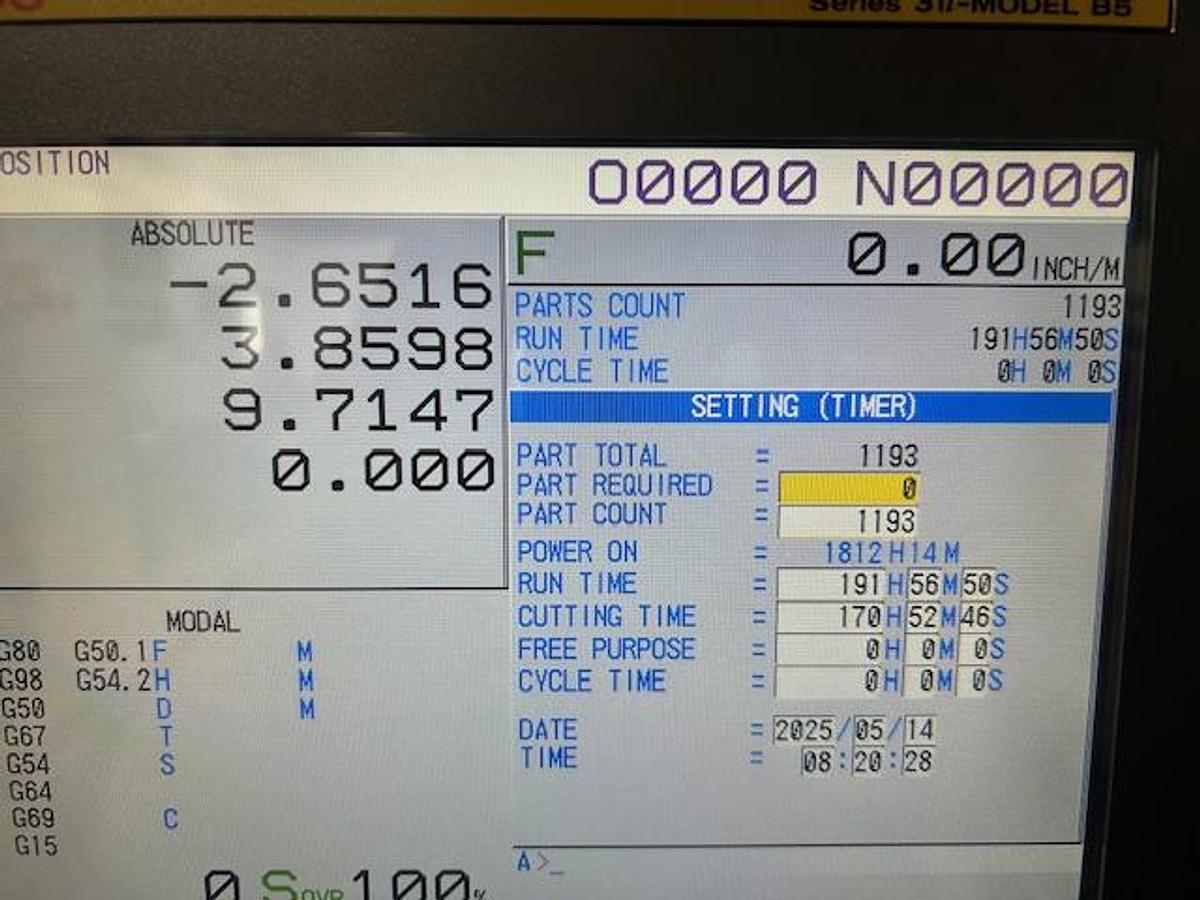

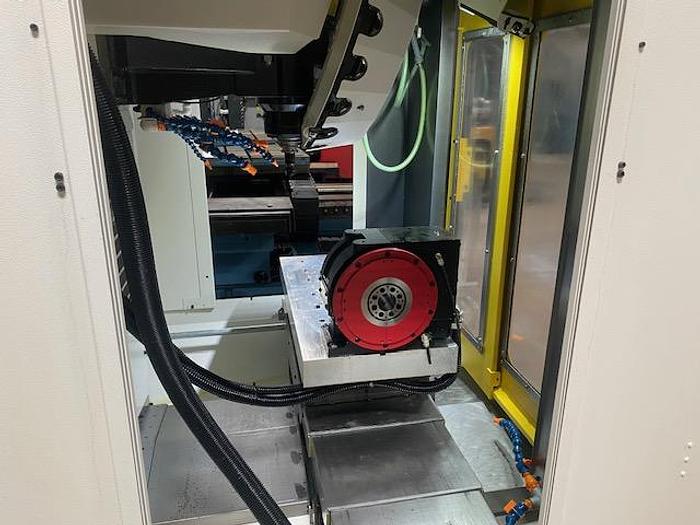

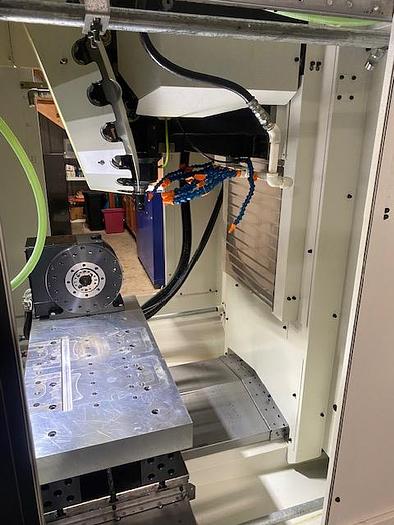

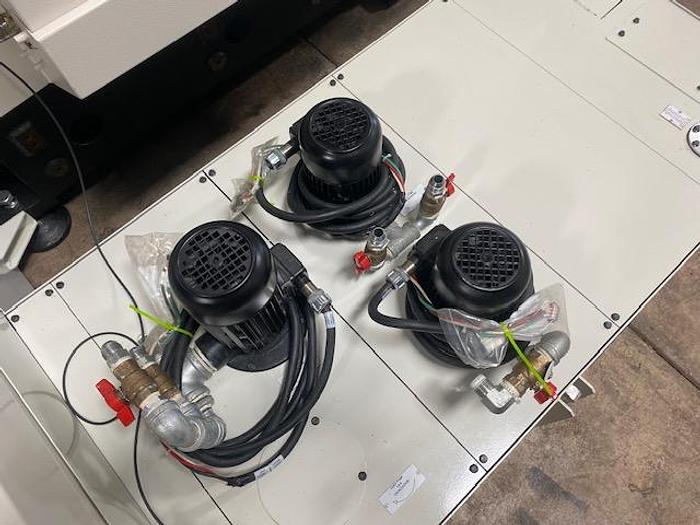

This machine is in our facility underpower for inspection with a Fanuc 31iB5, 170 Cutting Hours, 4th Axis Rotary, Factory 200MM Riser, Installed New 12/2021, Coolant Tank, Auto Lub., Bed Wall Wash, Books & Manuals, Up to 5 Axis Simultaneous Machining, Ultra Precise 32,000,000 Pulse/Rev Encoders, Ai Contour Control I, Thermal Growth Compensation, 1.3 sec Chip to Chip, 1.5G Accel/Decel, Helical Interpolation Program Storage, Rigid Tapping 5,000/8,000 RPM, Thread Milling, High Speed Reverse Tapping, “Quick” Tap Recovery System, Simultaneous ATC / Table Positioning, Easy to Automate with Methods, Built 100% in Japan.
Specifications
| Manufacturer | Fanuc |
| Model | D21Mib5ADV |
| Year | 2018 |
| Condition | Used |
| Serial Number | P188ZU671 |
| Stock Number | 3596 |
| Table Size | 25.6" x 15.7" |
| Table Load Capacity | 882 lbs |
| X-Axis Travel | 19.7" |
| Y-Axis Travel | 15.7" |
| Z Axis Travel | 15.7" |

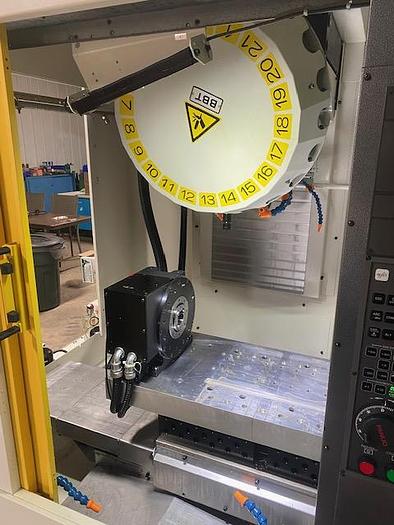

| Tool Chnager Capacity | 21 ATC |
| Spindle Speed | 24,000 RPM |
| Spindle Motor | 7.5 HP |
| Spindle Taper | BBT30 |
| Rapid Traverse Rate X,Y & Z | 2,125 IPM |
| Tool Change Time (Tool To Tool) | 0.7 Sec. |
| Tool Change Time (Chip To Chip) | 1.3 Sec. |
| Tool Weight Capacity | 8.82 lbs |
| Approx. Machine Weight | 4,850 lbs |
