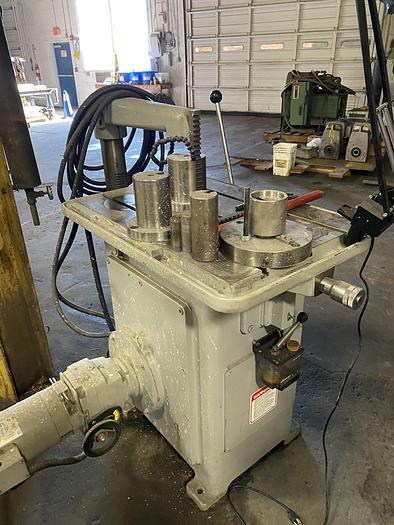

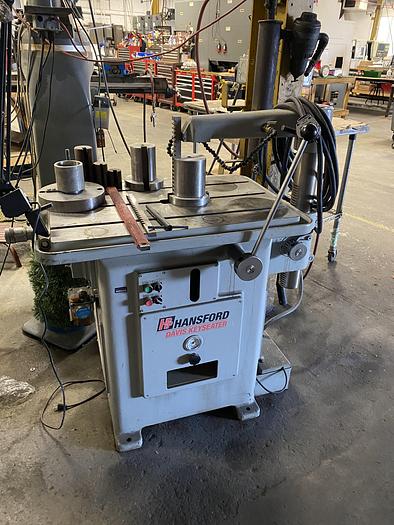

Hansford Davis DA-15B Auto/Manual Key Seater

No longer available

Hansford Davis DA-15B Auto/Manual Key Seater

VA

Description

Coolant Tank W/ Pump & Assortment of Tooling

Specifications

ManufacturerHansford Davis
ModelDA-15B
Year2015
ConditionUsed
Stock Number3589
Keyway Cutting Capacity1-16" - 1-1/2" (Steel)
Throat DepthFrom Face of 1" Cutter to Armpost 19"/With DA-60 Extra Throat Depth Assembly 22"
Max. Work HeightStandard 12" / 18" With D-1701 Arm Post Option
Max. Length Of Cut4" with 16" Long Cutter/ 8" With 20" Long Cutter/ 12" With 24" Long Cutter/ 18" With 30" Long Cutter
Table Size20" x 31"
Table Travel1-1/2"
Stroke4-1/2"
Strokes Per Min.11-56 With DA-27 Variable Speed Drive
Motor2 HP
Air Pressure Required80 PSI
Approx. Machine Weight1,250 lbs
