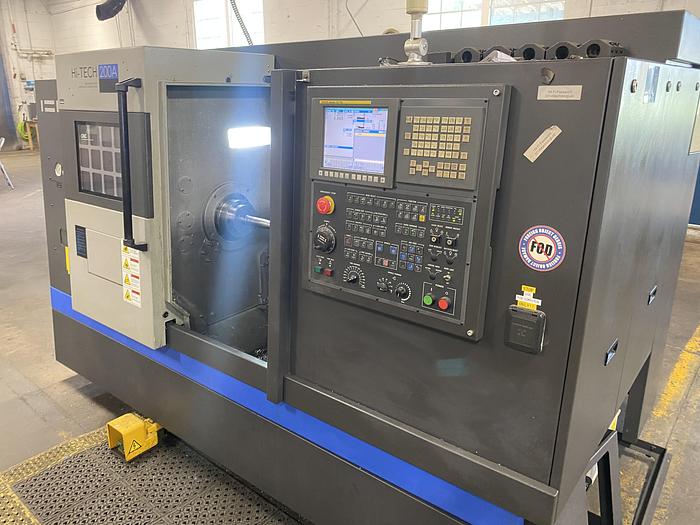

2013 Hwacheon High Tech 200A CNC Lathe
2013 Hwacheon High Tech 200A CNC Lathe
Contact us for price
VA.
orCall 1-262-284-5611
Description

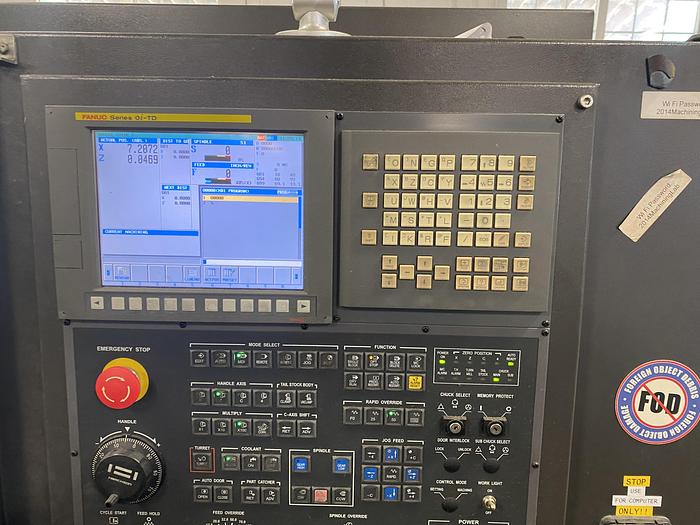

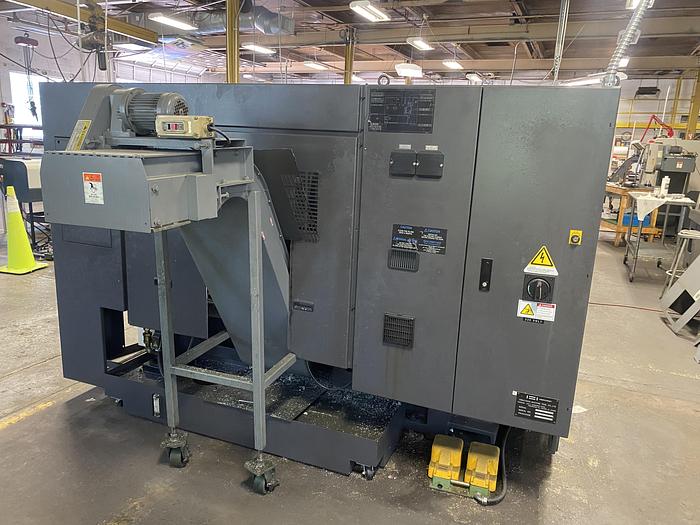

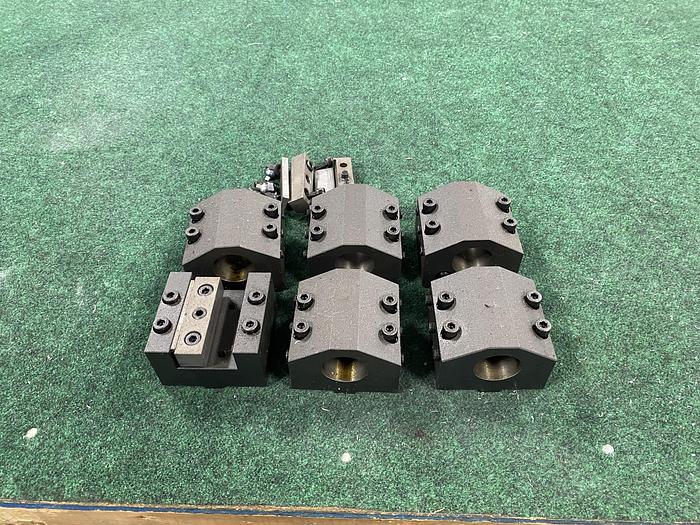

Fanuc Oi-TD CNC Control, 8" 3-Jaw Chuck, 5 Boring Bar Holders, This machine is underpower in plant for inspection in good working order with low hours. Complete with Fanuc control, rear type lift up chip conveyor, programmable tailstock quill, hydraulic tailstock movement, box hard and ground ways for rigid cutting.
Specifications
| Manufacturer | Hwacheon |
| Model | High Tech 200A |
| Year | 2013 |
| Condition | Used |

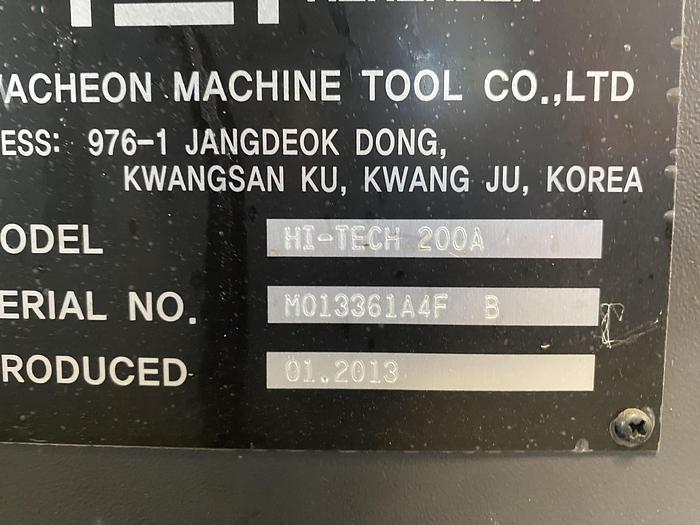

| Serial Number | M013361A4FB |
| Stock Number | 3587 |
| Max. Swing | 19.7" |
| X-Axis Travel | 7.7" |
| Z- Axis Travel | 16.9" |
| Max. Turning Dia. | 13.8" |
| Max. Cutting Length | 15.75" |
| Distance Between Center | 24" |
| Spindle Nose | A2-6 |
| Max. Spindle Speed | 5000 RPM |
| Max. Bar Dia. | 2.0" |
| Tailstock Quill Travel | 4.72" |
| Tailstock Body Travel | 13.7" |
| Rapid Traverese Rate | 1181 IPM |

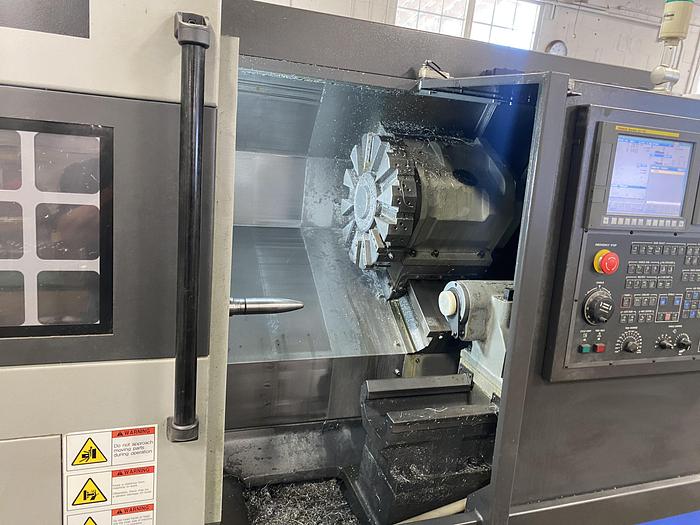

| Turret | 12 Station |
| Turret Index Time | .015 Seconds |
| Machine Weight | 9,260 LBS |
| Machine Dimensions | 66" x 104" x 80" |
