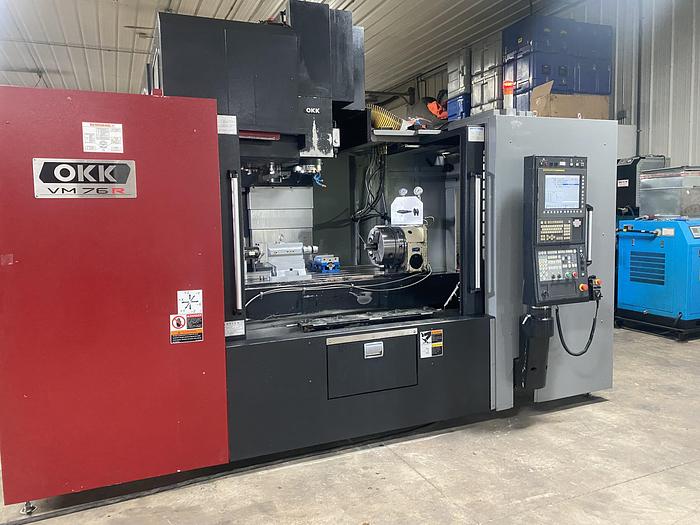

Okk VM76R CNC 4-Axis Vertical Machining Center

Sold

Okk VM76R CNC 4-Axis Vertical Machining Center

Location:Belgium, WI

Description

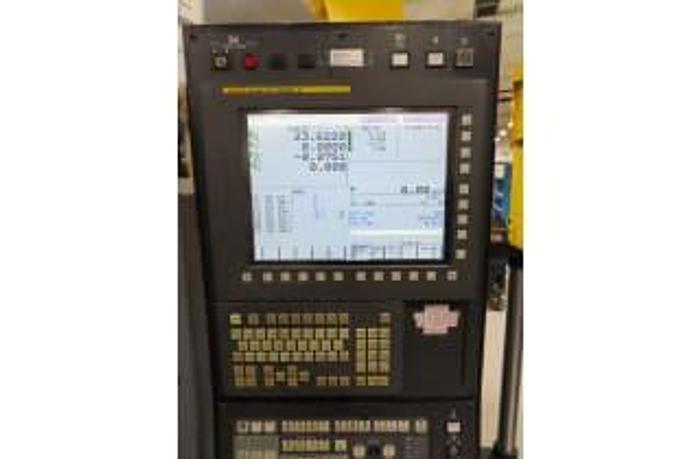

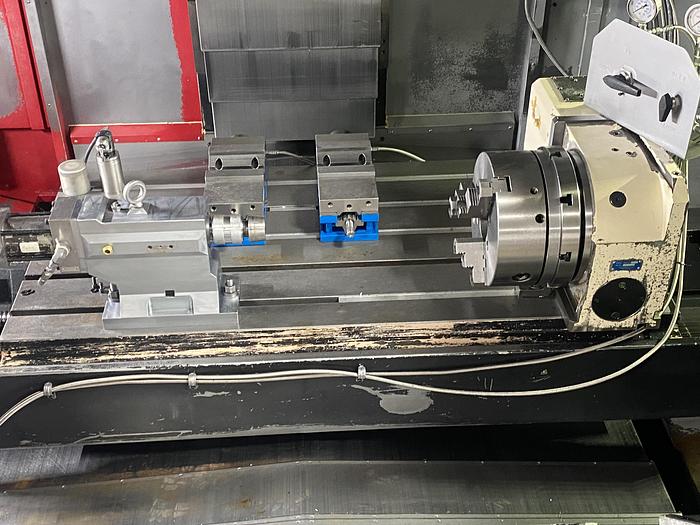

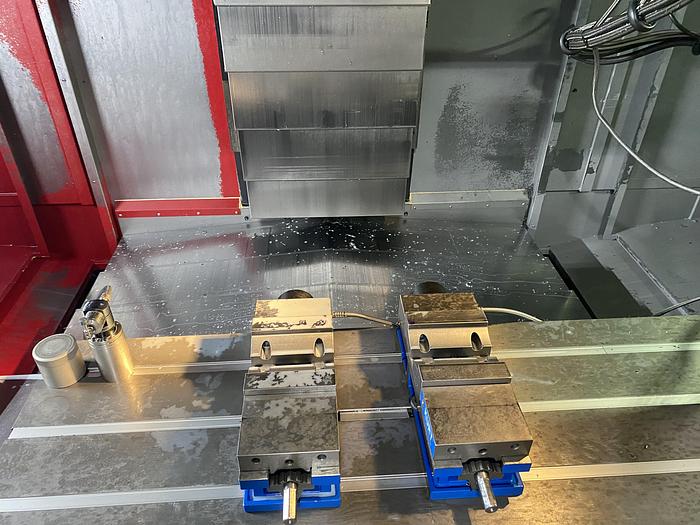

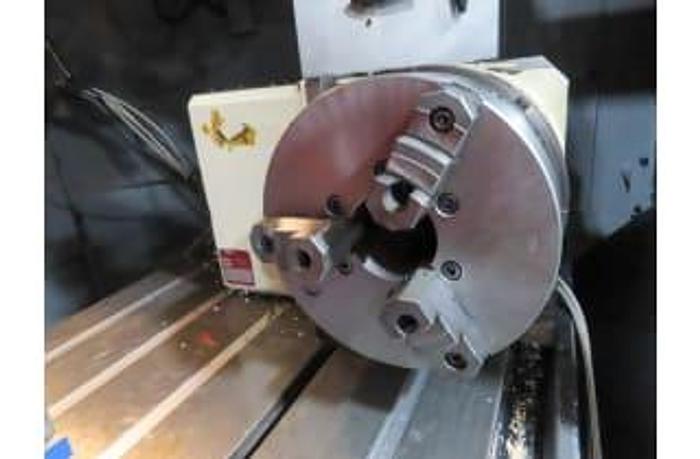

Fanuc 31i A5, Manual Guide i, Cool Jet System, Tool Length Measuring, 1000 PSI High Pressure CTS, Spindle Chiller, Mist Collector, LNS Turbo Lift Up Chip Conveyor, Box Way Design, Tsudakoma RNA-320L 4-Axis with Hydraulic Tailstock, Dual Kurt Vises with Auto Clamping, Core Chilled ball scews, 64 KByte Program Memory Capacity, Rigid Tapping, Canned Cycles, Auto Corner Override, Soft Scale 111, Helical Interpolation, Custom macro B, Programmable mirror image, Tool Life management, Tool Nose Radius Comp., Many more options.

The VM/R series increased rigidity of the main body and the spindle to provide even higher cutting performance. Its feed axes utilize highly rigid and accurate box-ways like conventional machines. This enables machining of not only general parts but also parts made of difficult-to-cut materials such as titanium. The main body design delivers heavy and accurate machining in an ergonomic friendly design.

Specifications

ManufacturerOkk
ModelVM76R
Year2014
ConditionUsed
Serial Number203
Stock Number3574
Table Size30" x 61"
Table Weight Capacity3307 lbs
X-Axis Travel60.6"
Y-Axis Travel29.9"
Z-Axis Travel26"
Max. spindle speed12,000 RPM
Spindle Motor40 HP
Spindle TaperBig Plus Dual Contact # 50
Auto Tool Change Capacity60 ATC
Max. Tool Weight44 lbs
Tool To Tool Time2.0 Sec.
Table Top To Spindle Nose5.9" - 31.9"
Rapid Traverse Rate X/Y945 IPM
Rapid traverse Rate Z787 IPM
Cutting Feed Rate X/Y/Z787 IPM
Machine Weight28,700 lbs
