Mazak Integrex 200-4ST CNC Turning/ Milling Center

No longer available

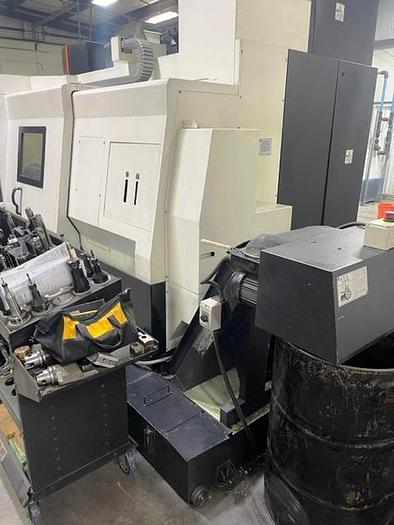

Mazak Integrex 200-4ST CNC Turning/ Milling Center



Equipped with:

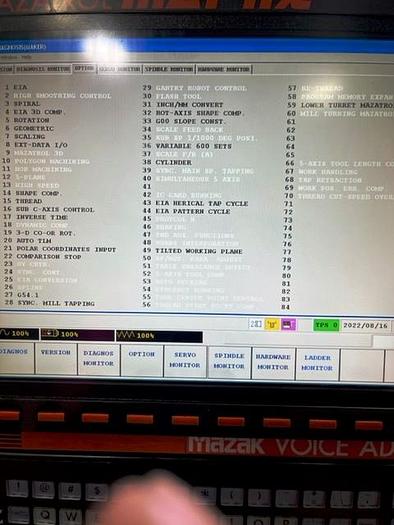

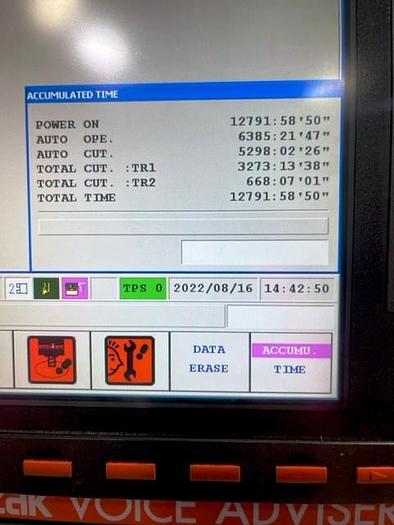

Mazatrol Matrix Control, 15” Color LCD, EIA/ISO Code Input Function, Add. EIA/ISO Functions (Req. EIA/ISO), 3-D Coordinate Conversion, GOO Slope Constant, Shape Compensation for Rotary Axes, Cylindrical & Polar Coordinate, Milling Spindle Synchronous Tapping, EIA/ISO 1st Spdl & Mill Spdl Ind. Rotation, IC Memory Card Interface, Inch/Metric Conversion, Cardbus I/F (2-Slot), LAN Port, USB I/F, XYZ Pitch Error Compensation Input, Absolute Positioning Sys (Linear Axes), Y-Axis Control,Coolant Through Milling Head (Up-Turret), 71 PSI Thru Clnt/Flood Clnt Simul-Flowable (Upper Turret), 1KG Flood Coolant (Lower Turret), Main Spindle Maintenance Door w/Interlock for 60” Bed Only, C-Axis 0.0001 Degree Incr. (1st Spindle), 2nd Spindle C-Axis 0.0001 Degree Incr., Chuck Air Blast (2nd Spindle), Chuck Air Blast (2nd Spindle), 40 Capto-Tool Magazine,Rotary Tool Spindle Speed 12,000 RPM,  B-Axis 0.0001 Deg/Cntring (Req. EIA/ISO), B-Axis Index 5 Degree (Coupling Clamp), Lower 9 Position Drum Turret, Chip Conveyor Side 60” 1500U (Hinge Type), Automatic Tool Eye, Auto Chuck Jaws Open/Close (1&2 Spindle, Chuck Open/Close Confirm (1&2 Spindle), Relocation Device, Windows XP Operating System for Mzk Machine, MT Connect Preparation, Automatic Parts Catcher w/Ejec (2.5” Dia. X 4.7” L x 5.5 lbs), C1C2 Synchronous Function.





























ModelIntegrex 200-4ST
Stock Number3571
Max. Swing26"
Max. Swing Using Y-Axis19.5" - 26" ( Limited to 12.99" when lower turret is in operating range without tools mounted)
Max. Swing Over Lower Turret10.6"
Max. Cutting Diameter (Upper)26"
Max. Cutting Diameter (Lower)10.24"
Max. Cutting Length58.85"
Max. Distance Between Chuck Jaws60.83"
Spindle NoseA2-6
Spindle Bore2.99"
Max. Bar Capacity2"
Spindle Speeds35 - 5,000 RPM
Spindle Index ( Programmable)0.0001 Degrees
Spindle Motor20/25 HP
Spindle Torque241 Ft-lbs

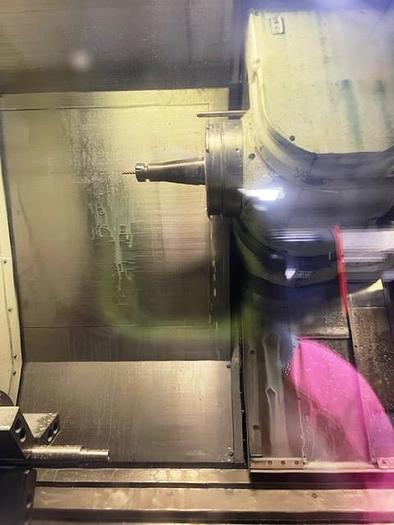

Upper Turret Type1 position W/ ATC
Magazine Capacity (Upper Turret)40 Tools
tool To Tool ATC Time1.3 Sec.

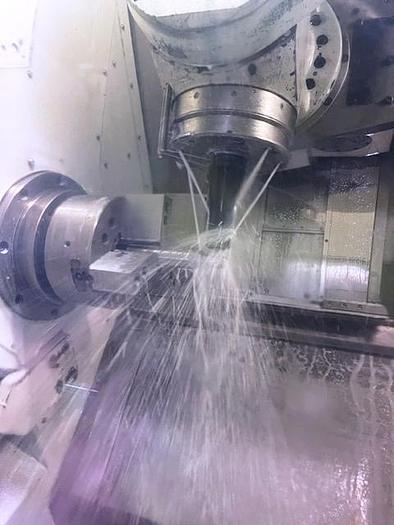

Rotary Tool Spindle Speed12,000 RPM
Rotary Tool Spindle Motor25 HP
Rotary Tool Torque88.2 Ft-lbs

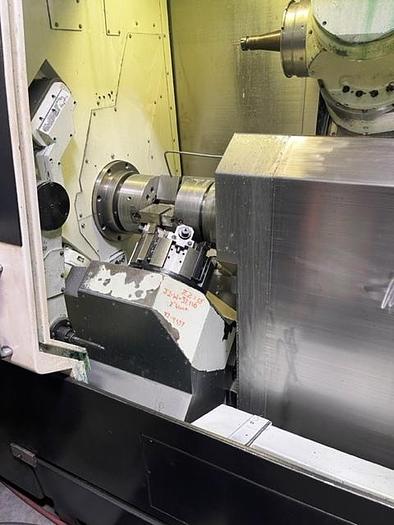

Lower Type Of TurretDrum
Tool Size(Max. Boring Bar Diameter)1.25"
Tool Index Time0.14 Sec.
B-Axis Travel0.0001 Degree Increments/Contouring
Y-Axis Travel+/- 3.15"
X-Axis Travel22.83"
Z-Axis Travel60.82"
X2 Axis Travel (Lower)5.91"
Z2-Axis Travel (Lower)58.66"
Second Headstock W-Axis61.02"
Y-Axis Rapid Rate1024 IPM
X/X2 Axis1496 IPM
Z/Z2 Axis1496 IPM
Second Headstock W-Axis Rapids1181 IPM
C-Axis555 RPM
Floor Space95.39" x 200.31"
Machine Height102.24"
