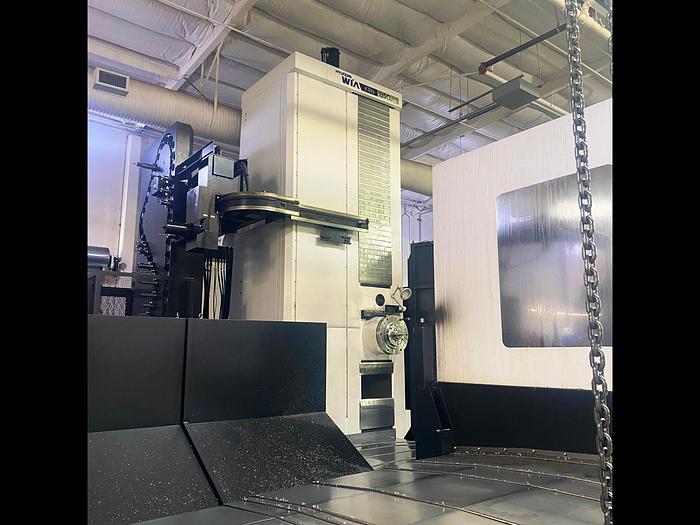

Hyundia Wai KBN 135CL CNC Horizontal Table Type Boring Mill
No longer available
Hyundia Wai KBN 135CL CNC Horizontal Table Type Boring Mill
Belgium, WI
Description
Fanuc 31i-A
874 Cutting Hours
High Pressure CTS
Box way Construction
5th Axis Rotary Table W/Wiring & Drive
Fully enclosed work area
Extended Slide Ways
Full B-Axis
Air Semi-Rising Slide Ways
Lift Up Chip conveyor
Chip Augers
Spindle Chiller
Specifications
Manufacturer | Hyundia Wia |
Model | KBN 135 CL |
Year | 2015 |
Condition | Used |
Stock Number | 3552 |
Table Size | 78.7" x 70.9" |
Table Load Capacity | 44,000 LBS |
Spindle Diameter | 5.3" |
Spindle Taper | BT#50 |
Max. Tool Weight | 66 lbs |
Max. Tool Length | 23.6" |
Spindle Speed | 2,500 RPM (3 Step Gear) |
Spindle Motor | 35/30 HP |
X-Axis Travel | 157.5" |
Y-Axis Travel | 98.4" |
Z-Axis Travel | 78.7" |
W-Axis Travel | 27.6" |
Tool Changer Capacity | 60 ATC |
Cutting Feed Rate X/Y/Z | 157.48 IPM |
Rapid Feedrate X/Y/Z | 275.59 IPM/393.7 IPM/393.7 IPM |
Approx. Machine Weight | 99,208 lbs |
Wired Power | 220/3ph/60hz |
