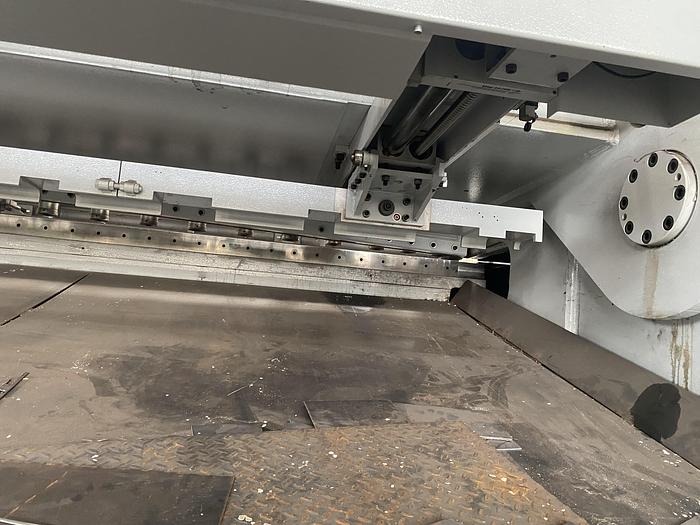

Adira GH001340 H.D. CNC Shear
No longer available
Adira GH001340 H.D. CNC Shear
Location:Belgium, WI
Description

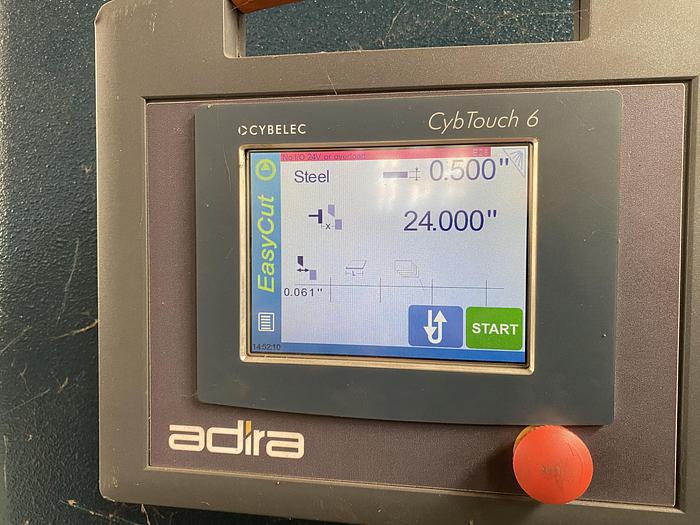

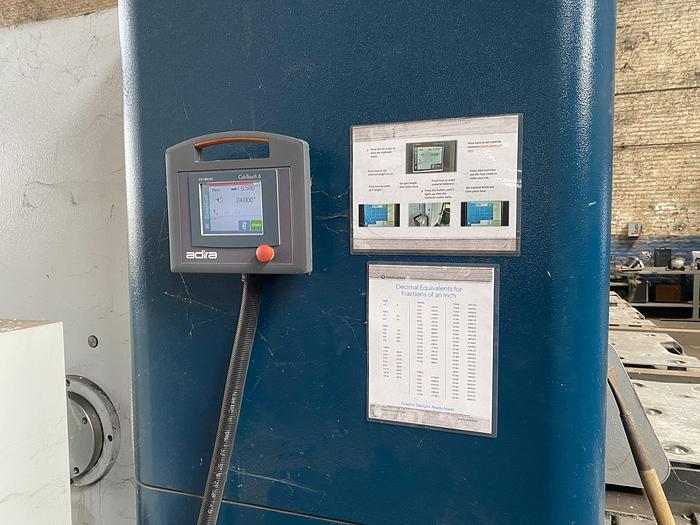

Cybelec/ SybTouch 6 Back Gauge, GH Swing Cut Model, Sheet Support System
Specifications
| Manufacturer | Adira |
| Model | GH001340 |
| Year | 2018 |
| Condition | Used |
| Serial Number | M00000743 |
| Stock Number | 3549 |
| Max. Cutting Length | 159" |
| Max. Cutting Thickness | 0.512" Mild Steel |
| Max. Cutting Thickness | 0.315" Stainless Steel |
| Rake Angle | 11/2 |
| Blade Clearance Adj. | 0.05" - 0.0787" |
| Motor Power | 24.4 HP |
| Number Of Hold Downs | 22 |
| Back Gauge Range | 39.8" |
| Stroke per minute | 8 |
| Machine Dimensions | 196" x 111" x 89" |
| Machine Weight | 29,700 Lbs |
