Okuma LB3000EX11-MYW800 CNC Live Milling Lathe

Okuma LB3000EX11-MYW800 CNC Live Milling Lathe

Contact us for price

Belgium, WI

orCall 1-262-284-5611

Description


Equipped With:

Cutting hours 189 total

Sold New In 2018

OSP 300 Touchscreen control

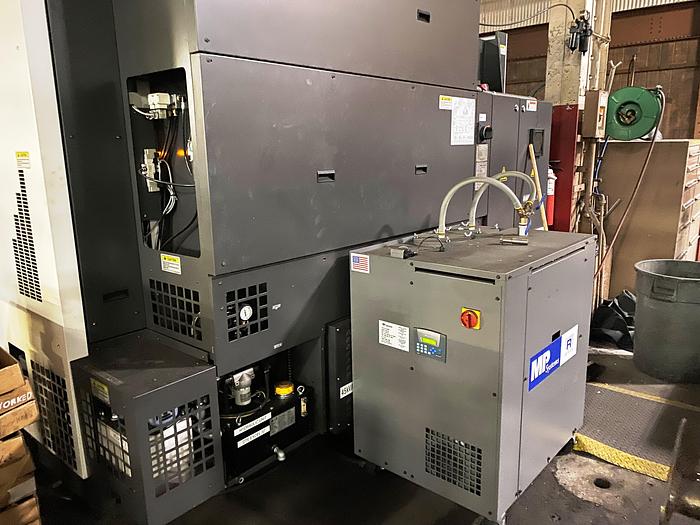

MP Systems High pressure coolant System 1000 P.S.I. & surface skimmer (7.5 HP)

Chip conveyor & coolant tank

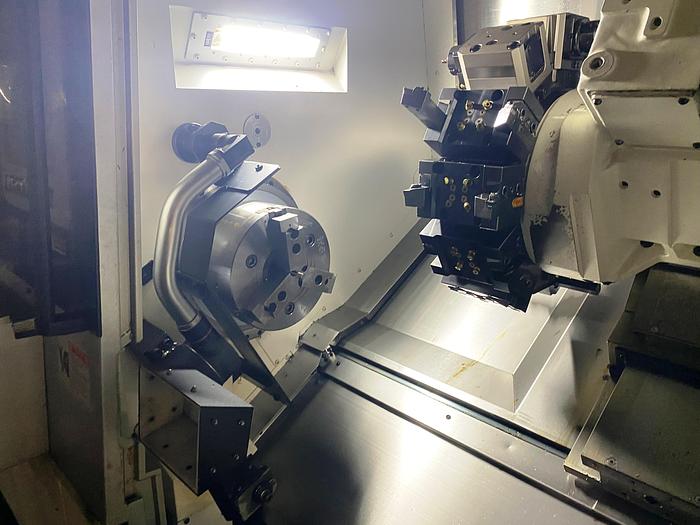

10” 3 jaw KITAGAWA #BB210 chuck on main spindle

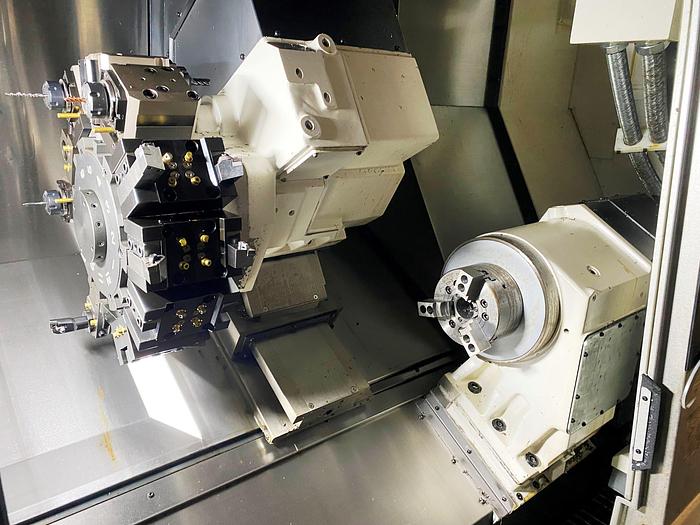

6.5” 3 jaw KITAGAWA #B206 chuck on sub spindle

Spindle nose A2-8

Bar capacity 3.18"

Y - AXIS

C - AXIS Both spindles

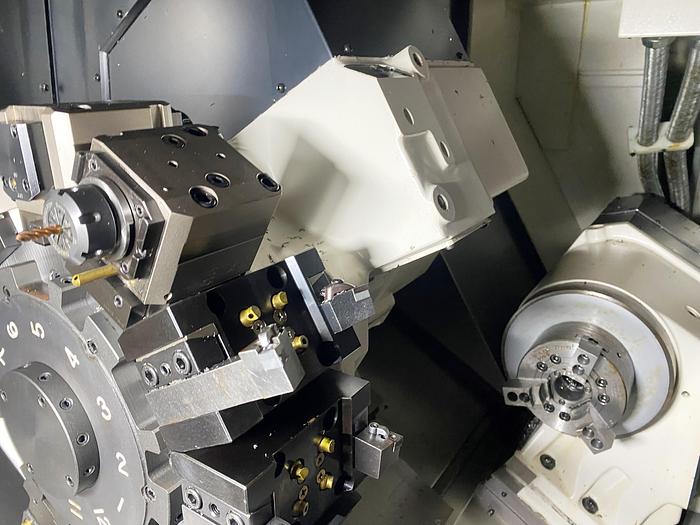

4) Straight Live Holders

8) Right Angle Holders

Tool setter

Hard ground ways (Very Rigid)

Dual foot pedals

Work light

Control options-3D animation, animation, Pitch error compensation, 96 tool offsets, tool

wear compensation, NC work counter, MAC man, Plane conversation, Profile generator,

Synchro tapping, Helical cutting, Spindle orientation, M axis orientation

Machine manuals

Main spindle motor 40/30 H.P.

Z axis motor 6.13 H.P.

X axis motor 4.67 H.P.

Y axis motor 4.67 H.P.

Sub spindle motor 3.73 H.P.

Hydraulic pump motor 3 H.P.

Guide way lubrication pump

Machine is currently wired for 480 Volt / 3 Phase / 60 HZ


All specifications are assumed to be correct but must be confirmed by the purchasing entity.

Specifications

ManufacturerOkuma
ModelLB3000EX11-MYW/800
Year2016
ConditionUsed
Serial Number199216
Stock Number3541
Swing Over Bed22.83"
Max. Swing Over Cross Slide18.5"
Max. Turning Diameter13.39"
Distance Between Center31.72"
Spindle Speed45-4,500 RPM
Main Spindle Through Hole3.15"
Spindle Motor40 HP
Sub Spindle Speed45-6,000 RPM
Sub Spindle Motor15 HP
X-Axis Travel10.24"
Y-Axis Travel4.53"
Z-Axis Travel39.76"
W-Axis Travel35.24"
C-Axis360 Degree/0.001 Degree Increment
Live tooling/Milling Speed45-6,000 RPM
Turret Capacity12
Approx. Machine Weight19,500 lbs
Approx. Machine Dimensions170’’ L x 96’’ L x 98’’ H
