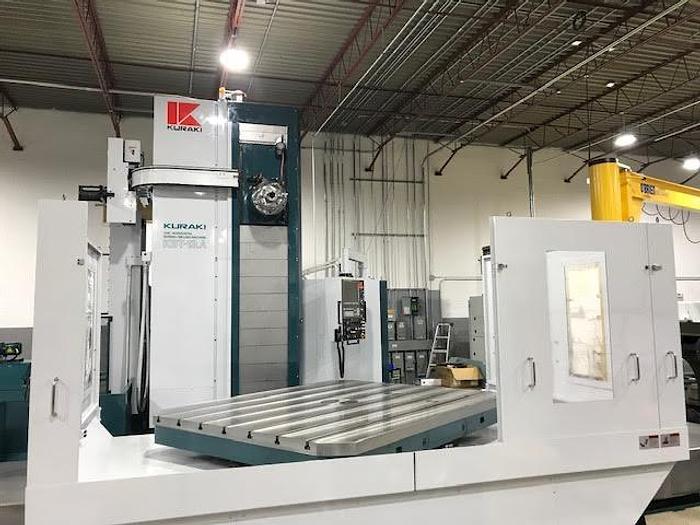

Kuraki KBT-13A CNC Horizontal Boring Mill
Kuraki KBT-13A CNC Horizontal Boring Mill
Canada
Description
Equipped With:
Fanuc 31i-B5 CNC 5 axis control
Coil type chip conveyor
Spindle cooling device
Chip cover for slideways
NC index table every 0.001 deg/Full B axis (Every 90 deg indexing by KURAKI original locator pin)
Manual pulse generator
Work light & signal light
Power shut off device
Manual spindle speed setting device
Single lever joystick type jog feed
Scale feedback system (X, Y, Z, B axes)
Self-diagnosis function
Tool & tool box for reassembly
Leveling block and foundation plate
Z & W axes auto coordinate system setting and tool length compensating function (G143)
Work piece reference point auto calculation function by B axis rotation (G111)
Door interlock for electric cabinet
Coolant through spindle interface for Chip Blaster
***Not including any coolant unit.
Coolant device with lift type chip conveyor
Actual spindle speed display on LCD (screen)
Helical interpolation
Tool offset 200 pairs
Tool offset memory C
Rigid tapping
Part program storage length 8MB (= 20,480m)
Data protect key
Custom macro B (V: 100 pc's)
Z-axis stroke 62.99" (1,600mm)
COGSDIL interface
COGSDIL HEAD ZX 420-TC
ATC Capacity - 60 tools
120 Pull studs
Miscellaneous Cat 50 tool holders ( Approximately 83 pcs TBD)
Touch Probe M&H
Machine Options (KURAKI side)
Coolant through spindle system and high-pressure unit Chip Blaster
Specifications
Manufacturer | Kuraki |
Model | KBT-13A |
Year | 2018 |
Condition | Used |
Stock Number | 3540 |
Spindle Diameter | 5.12" |
X-Axis Travel | 118.1" |
Y-Axis Travel | 78.84" |
Z-Axis Travel | 63" |
W-Axis Travel | 27.6" |
Table Size ( Full 360,000 Degree Contouring) | 70.9" x 86.6" |
Max. Table Load Capacity | 26,400 LBS |
B-Axis Table Indexing | 0.001 Degree |
Spindle Taper | CAT#50 |
Spindle Speeds | 5 to 3,000 RPM |
Spindle Motor | 30 HP |
Rapid Feedrate | 394 IPM |
Cutting Feedrate | 0.04 to 157.5 IPM |
Auto Tool Changer | 60 Position |
Machine Dimensions | 279.5" x 303.1" x 201.2" |
Approx. Machine Weight | 81,400 LBS |
