Hyundai Wia LV 2000 MM CNC Vertical Boring Mill W/Live Tooling
Sold
Hyundai Wia LV 2000 MM CNC Vertical Boring Mill W/Live Tooling
Location:Belgium, WI
Description
EQUIPPED WITH:

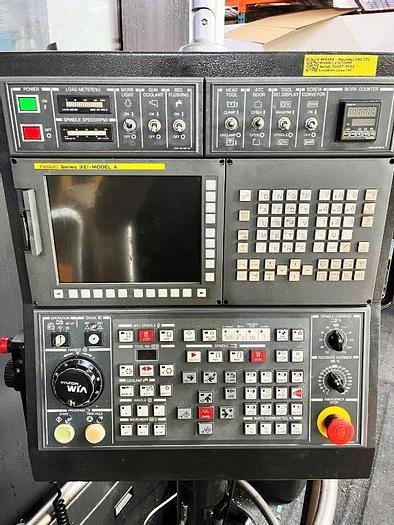

FANUC 32i-A CONTROL, 63" MANUAL TABLE, CHUCK JAW 4SET, STANDARD TOOL HOLDER, STANDARD COOLANT NOZZLE, SP. THRU COOLANT 145 PSI, AIR GUN, COOLANT TANK, FRONT DOOR INTER-LOCK, 3 COLOR CALL LIGHT, WORK LIGHT, LEVELING BLOCK, FOUNDATION BOLT & NUT, X/Z AXIS LINEAR SCALE, BED FLUSHING, TOOLS: 7) Live MILLING HEADS INCLUDED /10 TURNING/1 DUMMY, CMT Z-AXIS TOOL ERROR
Specifications
| Manufacturer | Hyundai Wia |
| Model | LV 2000MM |
| Year | 2016 |
| Condition | Used |
| Stock Number | 3539 |
| X-Axis Travel | -9.8" / +46.5" |
| Z-Axis Travel | 36" |
| C-Axis | 360 Degree |
| W-Axis | 9.8" x 3 Steps |
| Swing | 80.3" |
| Max. Turning Diameter | 78.7" |
| Max. Turning Height | 66.9" |
| Max. Table Load Capacity | 22,046 lbs |
| Rapid Traverse Rate X/Z | 472 IPM |
| Rapid C-Axis | 750 Degree/Min |
| Ram Head Turning | 9.4" |
| Milling Head | BT#50 Taper |
| Live Tool Speed | 2,400 RPM |
| Live Tool Power | 25/20 HP High Torque |
| Live Tool | 10 Stations |
| Live Tool Torque | 567.2 Ft lbs |
| No. Of Tool Staions | 18 |

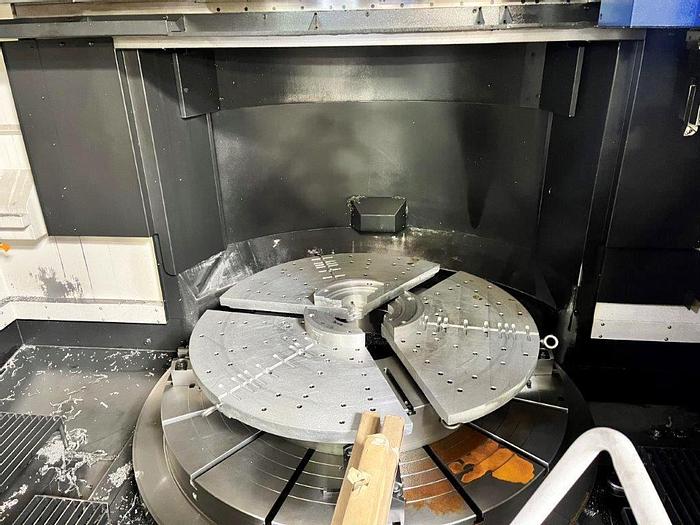

| Table Size | 63" |
| Table Speed | 258 RPM |
| Max. Table Torque | 17,142 ft lbs |
| Table Power | 60/45 HP |
| Machine Size | 223.7" x 155" x 243.2" |
| Machine Weight | 63,934 lbs |
