Blanchard 22D Surface Grinder
No longer available

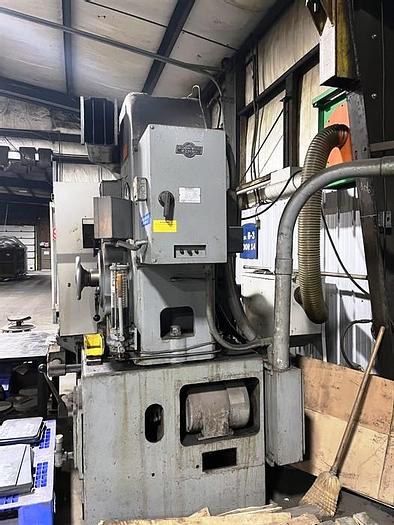

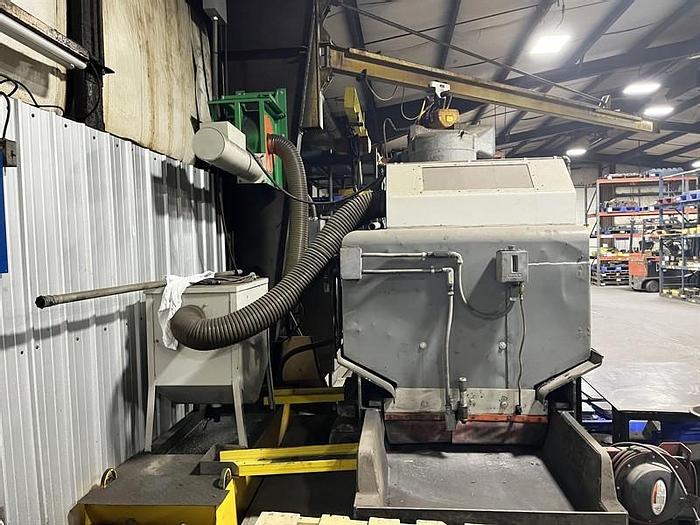

Blanchard 22D Surface Grinder
Location:Belgium, WI
Description

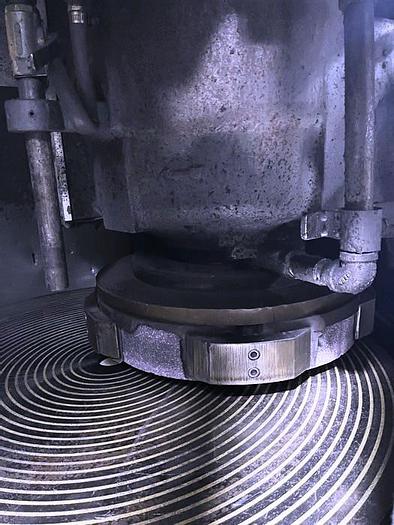

Magnetic Chuck

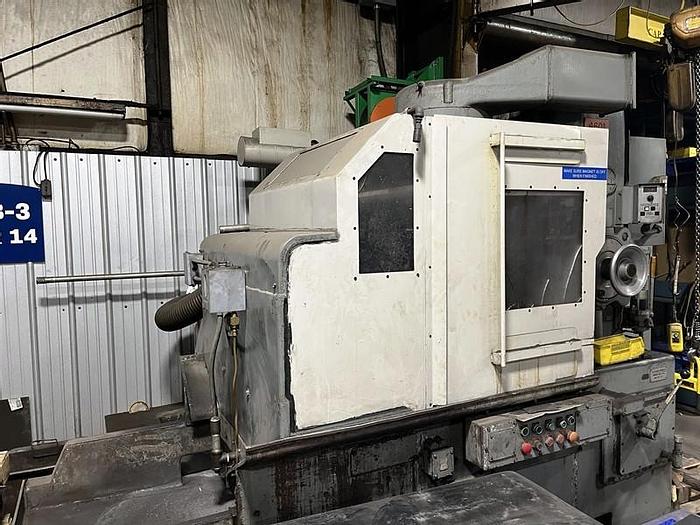

Full enclosure
Coolant System
Specifications
| Manufacturer | Blachard |
| Model | 22D |
| Condition | Used |
| Stock Number | 3529 |
| Swing Diameter | 48" |
| Vertical clearance | 24" |
| Magnetic Chuck Diameter | 42" |
| Grinding Wheel Diameter | 22" |
| Grinding Wheel Motor | 50 HP |
| Feed Rate | 0.0001 - 0.010 IPM |
| Grinding Spindle Speed | 720 RPM |
| Chuck Rotational Speed (Infinitely Variable ) | 6 - 24 RPM |
