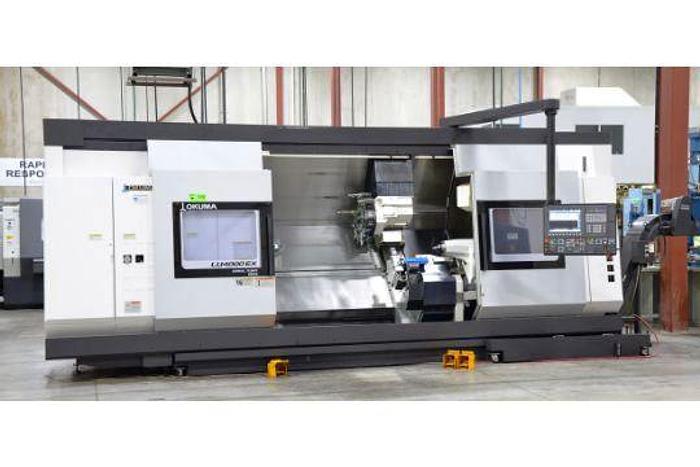

Okuma Simulturn LU4000EX CNC 6-Axis Twin Turret Live Milling Center

Okuma Simulturn LU4000EX CNC 6-Axis Twin Turret Live Milling Center

Contact us for price

Belgium, WI

orCall 1-262-284-5611

Description

Equipped With:

OSP-P300LA CNC Control

12.40" Kitagawa 3- Jaw Hydraulic Chuck

A2-11 Spindle Nose

4.41" Big Bore Factory Installed Option

SMW AutoBlock Hydraulic Steady Rest Auto Drag Along

Auto Drag Along Tailstock

Tool Setting Arm

1000 PSI High Pressure Coolant With MP Filtration System

Coolant Tank/Lift Up Chi Conveyor

45 Degree Box Bed With All Box Way Construction


15" kitagawa 3-Jaw hydraulic Chuck

1)Okuma Titespot Right Angle Head

4)Okuma LAU-85-ER40-1 Right Angle Live Milling Tool Holder 1:1 Ratio 6000 RPM- 85 NM Torque

4)Okuma LLU 85 ER40-1R Live Milling Tool Holder 1:1 Ratio 6,000 RPM-85 NM Torque

3) Turning Tools

Specifications

ManufacturerOkuma
ModelSimulturn LU 4000EX
Year2018
ConditionUsed
Serial Number208714
Stock Number3528
Swing27.36"
Max. Turning Diameter18.90"
Distance Between Centers78.74"
XA Axis Travel11.81"
ZA- Axis Travel84.33
XB-Axis Travel7.68"
ZB-Axis Travel82.70"
Y-Axis Travel5.51"
C-Axis360 Degrees in 0.001 Degree Increments
Max. Turning Speed3,000 RPM
Upper TurretV12 Station With Live Milling
Live Milling Speed6,000 RPM
Lower TurretV10 Station With SMW AutoBlock Hydraulic Steady Rest
Spindle Motor30/20 HP
Rapid Traverse Rate X1, X2984 IPM
Rapid Traverse Rate Z1, Z21,181 IPM
Tailstock Quill Diameter3.55"
Tailstock Quill Stroke4.72"
Quill CenterMT#5
Machine Dimensions146" x 90" x 87"
Machine Weight21,120 lbs
