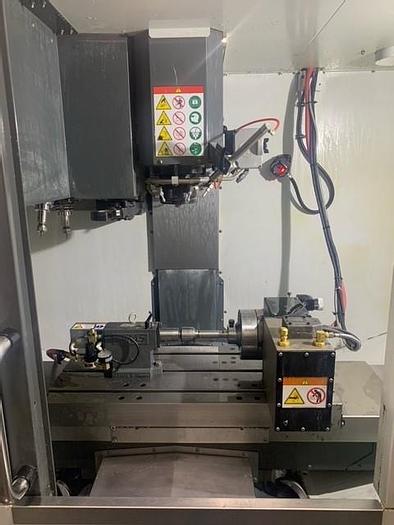

2016 Haas DM-2 CNC 4-Axis Vertical Drill/Tap Center

Sold

2016 Haas DM-2 CNC 4-Axis Vertical Drill/Tap Center

Belgium, WI

Description

1GB memory

HRT 160 rotary table w/Tailstock

Brushless 4th axis

Auto air gun

Chip auger

Enclosure exhaust

ETHERNET interface

Haas connect

High speed machining

Programmable coolant

Rigid tapping

Thru tool air blast

Thru spindle coolant (300 psi)

WIFI connection

WIPS- Renishaw probing system

Macro option

Coordinate rotation & scaling

Spindle orientation

Sidemount toolchanger

Specifications

ManufacturerHaas
ModelDM-2
Year2016
ConditionUsed
Serial Number1133078
Stock Number3519
X-Axis Travel28"
Y-Axis Travel16"
Z-Axis Travel15.5"
Table Size34" x 15"
Max. Table Load Capacity250 lbs
Spindle Speed15,000RPM Direct Drive
Spindle Taper#40
Spindle Power15 HP
Tapping Speed5,000 RPM
Rapid Speeds X, Y, & Z2400 IPM
Coolant Tank Capacity55 Gal.
Max. Spindle Nose To Table Top21.5"
Min. Spindle Nose To Table Top6"
Spindle Run Hours9,886
