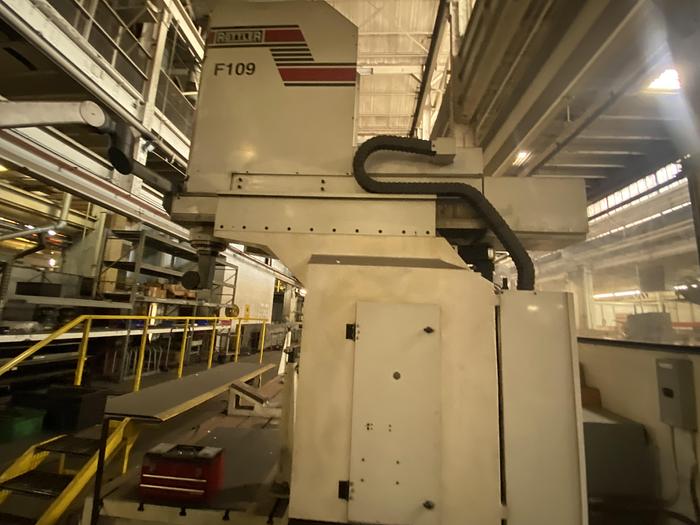

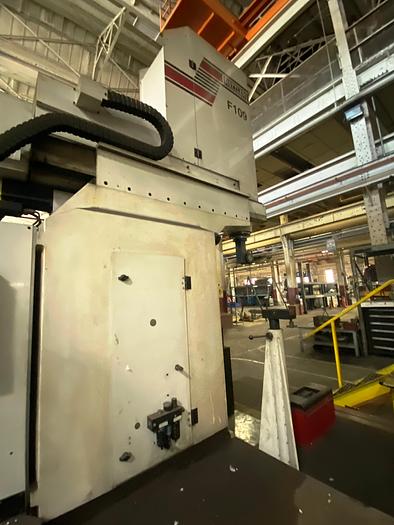

2011 Rottler F109 CNC Line Boring Machine
2011 Rottler F109 CNC Line Boring Machine
Contact us for price
VA.
orCall 1-262-284-5611
Description

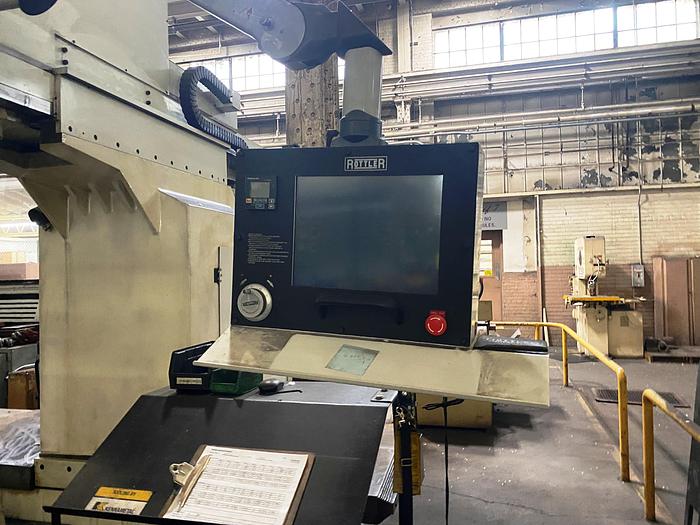

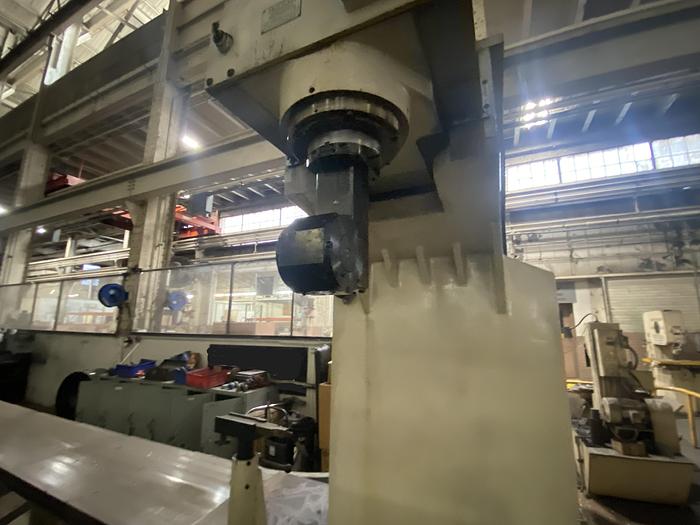

Rottler CNC PC Based Control, Probe, large diameter hard chromed spindle, utilizing high precision angular contact bearings and automatic lubrication, Anti friction ball screws and AC Servo motors provide precise machine positioning and rapid feed rates.Air power drawbar allows cutter heads to be changed in seconds increasing productivity and reducing operator fatigue

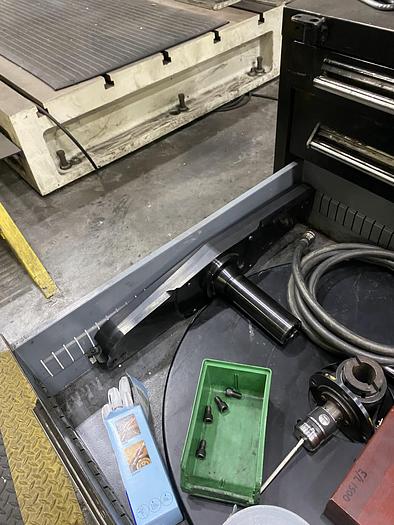

Floor plate, Probe, tooling and manuals complete and all included in this package.
Specifications
| Manufacturer | Rottler |
| Model | F109 |
| Year | 2011 |
| Condition | Used |
| Serial Number | 006 |
| Stock Number | 3612 |
| Table To Spindle Taper | 67.58" |

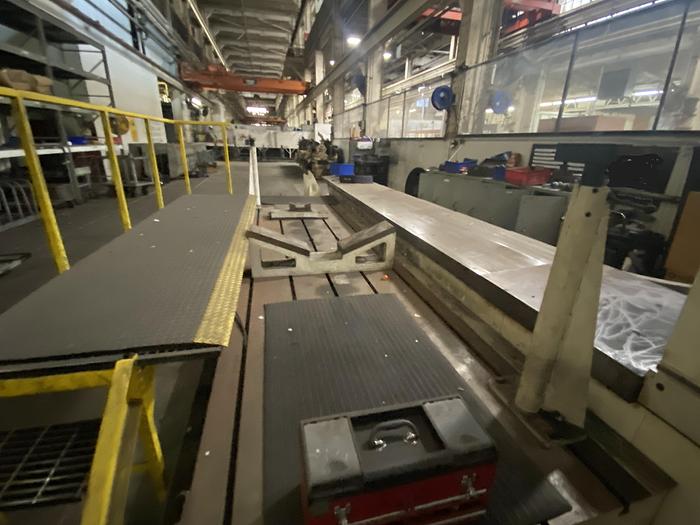

| Table Size (4 T-Slots) | 67.5" x 240" |
| Spindle Center To Column | 43.50" |
| X-Axis Travel | 248" |
| Y-Axis Travel | 24" |
| Z-Axis Travel | 36" |
| Spindle Speed Infinitely Variable | 1,000 RPM (checking) |
| Spindle Motor | 17 HP |
| Cylinder Bore Range With optional Cutterheads | .75"-20" |
| Line Bore Range With Optional Cutterheads | 2"-12" |
| Surface Cutterhead Diameter | 10", 14", 18", &22" |
| Floor Space Required | 362" x 130" x 153" Tall |
| Approx. Machine Weight | 55,000 lbs |
| Power Requirements | 220v, 60A, 50/60Hz,3ph |
| Air Requirements | 100 PSI |
